NMC-WOLLARD 2021Truax Blvd., Eau Claire, WI 54703, Phone (715) 835-3151, Fax (715) 835-6625
M100 Tow Tractor Manual No. 46052
PAGE 5
CHAPTER 2 MAINTENANCE
4 REPAIRS
AUGUST 31, 2008

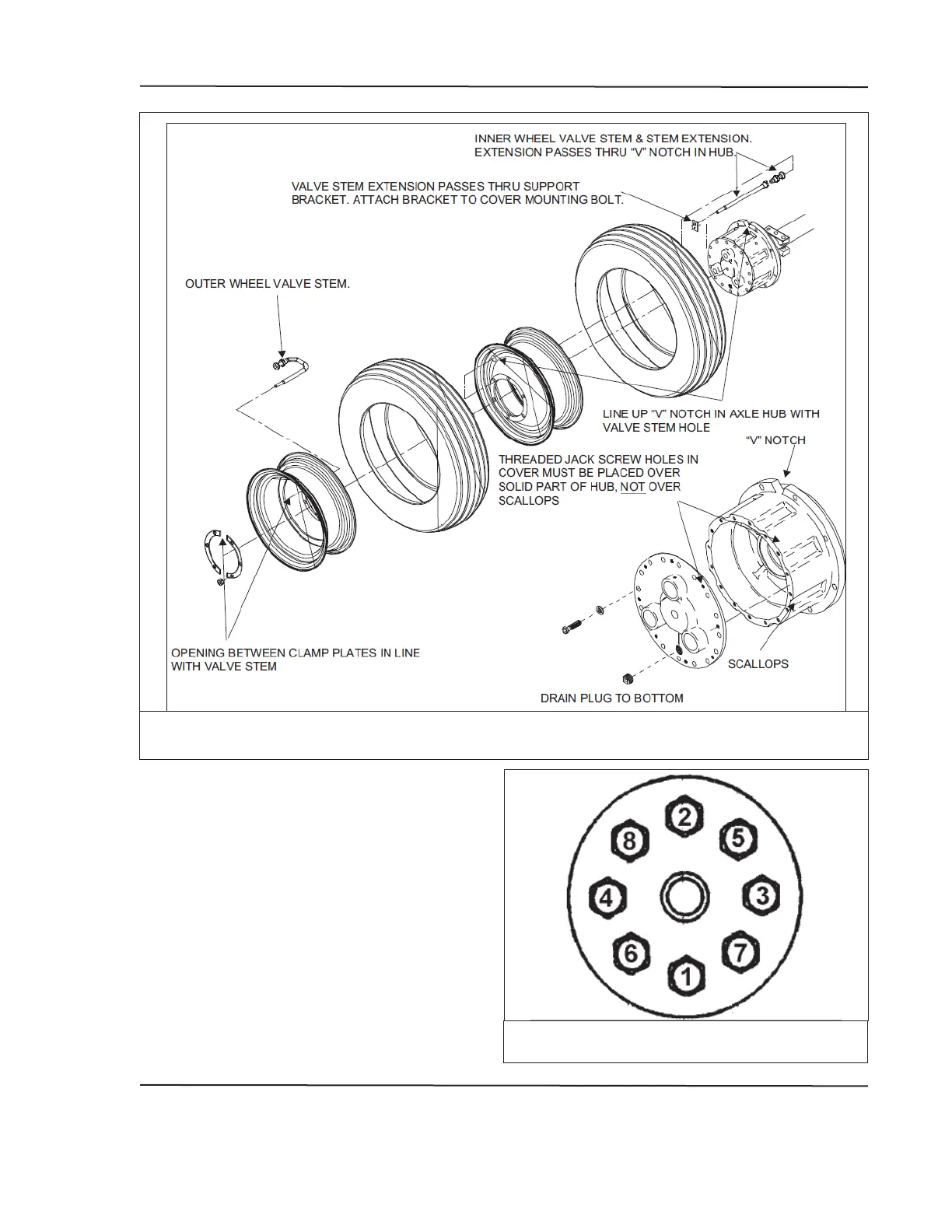

FIGURE 1. PROPER INSTALLATION OF AXLE HUB COVER PLATE AND DUAL
WHEELS
FIGURE 2. NUT TIGHTENING
SEQUENCE
4.2.6 Installation
1. Assemble valve stems, if not
already done.
2. Tires on dual sets must be
replaced together. Unequal
tire tread wear will result in
uneven weight distribution.
3. Proper installation when
wheels are reinstalled. See
a. Clean and dry wheel,
studs, and mating surfaces
before assembly. See
4.2.3
