NMC-WOLLARD 100 - Figure 1-26: 1 and 2 CAN Parameter Display Formats; Figure 1-27: Setting 1 or 2 Parameter Display Lines

NMC-WOLLARD 2021Truax Blvd., Eau Claire, WI 54703, Phone (715) 835-3151, Fax (715) 835-6625
M100 Tow Tractor Manual No. 46052
PAGE 34
CHAPTER 5 MANUFACTURER’S INFORMATION
27
NexSysLink
®
2" Stand-Alone CAN Display Operation Manual  SAE J1939
© 2011 Beede Electrical Instrument Co., Inc.
• 1 or 2 Parameter Display
Users can set whether 1 or 2 CAN parameters appear on the LCD screen�

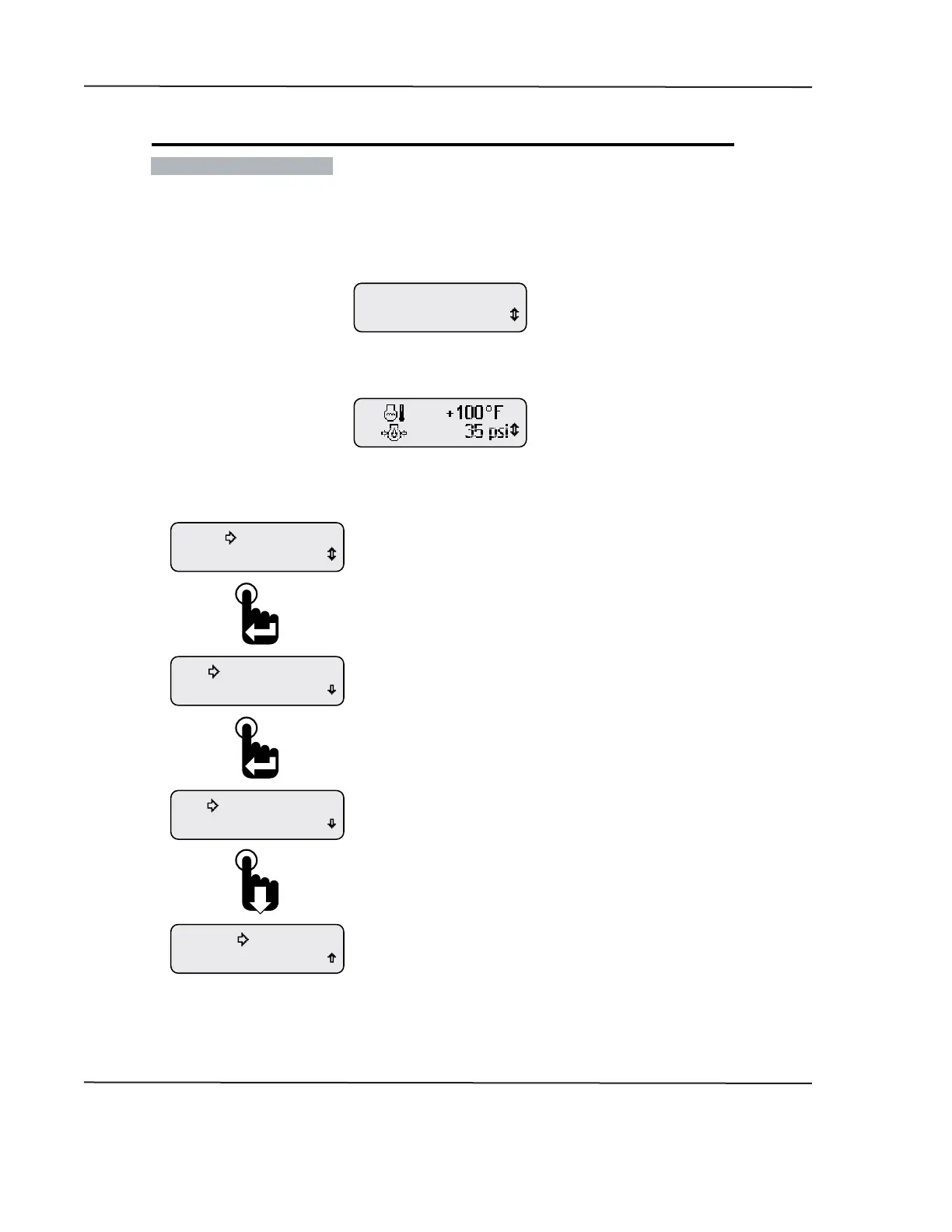

Figure 1-26: 1 and 2 CAN Parameter Display Formats
Eng Oil Pressure
35 PSI
1- Parameter Display Format
2- Parameter Display Format
Figure 1-27: Setting 1 or 2 Parameter Display Lines
Exit
Contrast
2-Parameter
Contrast
1-Parameter
Trip Mode
Display
Scroll down to the Exit option and press the Enter switch or
wait 30 seconds for last displayed CAN parameter to appear�
Pressing the Enter switch toggles the paramater display mode
to two 2-Parameter�
When the Display Menu opens, the selection arrow appears
next to the current parameter display mode setting,
i�e�, 1-Parameter or 2-Parameter�
Pressing the Enter switch toggles between the two settings�
The setting is automatically saved once changed�
From the Setup Menu place the selection arrow cursor next to
the Display option, Main Menu-Setup-Display, then press
the Enter switch to view the Display Menu functions�
CAN DISPLAY MANUAL
NOVEMBER 02, 2015
