NMC-WOLLARD 100 - Figure 1-32: Setting Alarm Output Pin Status

NMC-WOLLARD 2021Truax Blvd., Eau Claire, WI 54703, Phone (715) 835-3151, Fax (715) 835-6625
M100 Tow Tractor Manual No. 46052
PAGE 39
CHAPTER 5 MAUFACTURER’S INFORMATION
32
NexSysLink
®
2" Stand-Alone CAN Display Operation Manual  SAE J1939
© 2011 Beede Electrical Instrument Co., Inc.
• Alarm Output
The alarm output setting controls whether the alarm output pin is turned o when an alarm condition
occurs and the Enter switch is pressed� This function is also dependant upon the Mute setting for the
audible output�
If Mute is set to Temporary and Alarm Output is set to Audible, the internal and external audible devices
will temporarily turn o� If Mute is set to Permanent and the Alarm Output is set to Audible, the internal
and external audible devices will remain o until a new alarm condition occurs�
If Alarm Output is set to light, the output pin remains on regardless of the current mute setting when
the Enter switch is pressed�

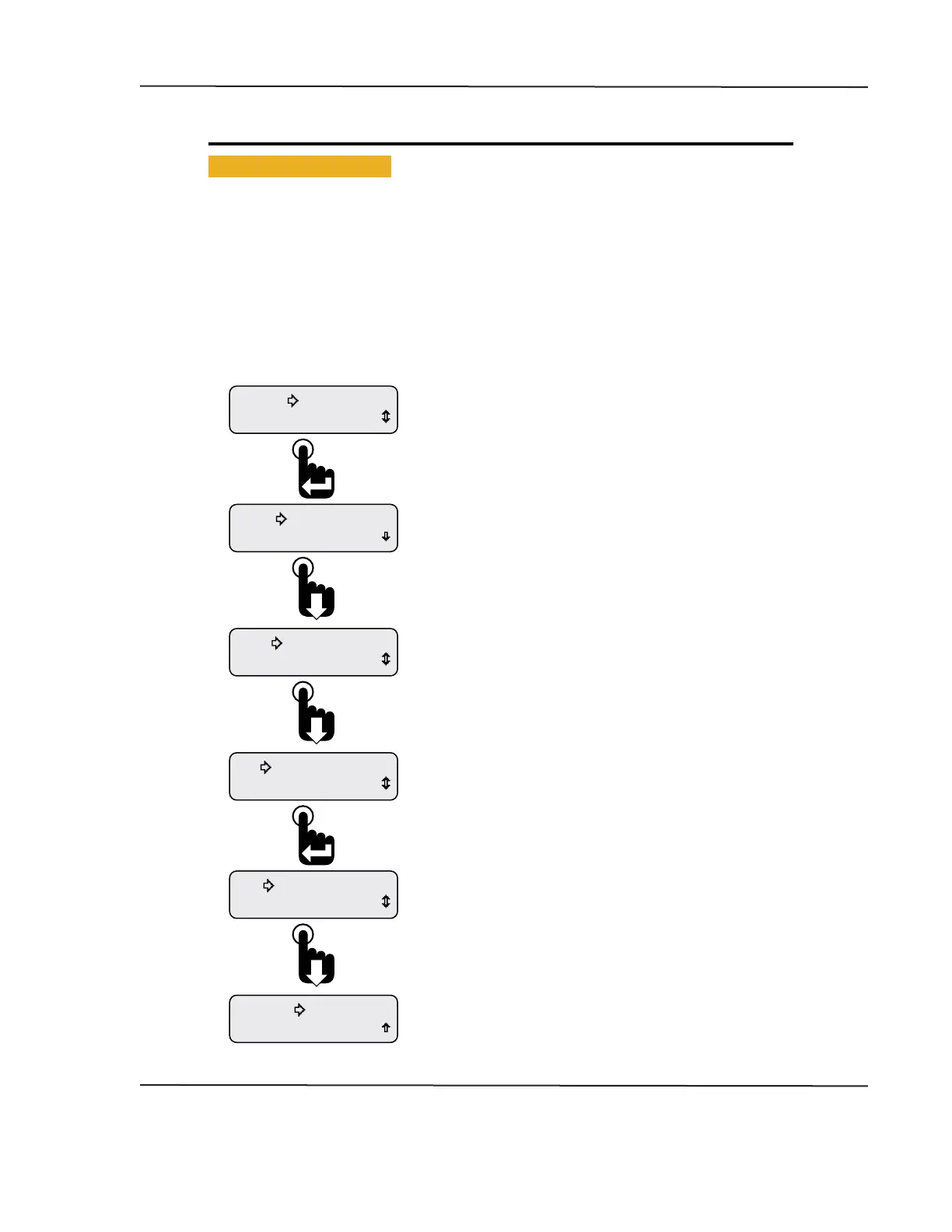

Figure 1-32: Setting Alarm Output Pin Status
Exit
Return
Output-Light
Return
Output-Audio
Alarm Output
Trip-Hours
Units
Backlight
Informaon
Setup
Scroll down to the Exit option and press the Enter switch or
wait 30 seconds for last displayed CAN parameter to appear�
Pressing the Enter switch toggled the Alarm Output setting to
the light option�
The Output-Light option does not disable output pin 3 when the
Enter switch is pressed to mute an alarm notication�
When the selection arrow cursor is placed next to the
Alarm Output option, the name changes to the current alarm
output mode, i�e�, Output-Audio or Output-Light�
The Audio option disables output pin 3 when the Enter switch
is pressed to mute an alarm notication�
Pressing the Enter switch toggles between the two settings�
The setting is automatically saved once changed�
Screen shows Alarm Output function prior to placing the
selection arrow cursor next to the function�
Continue to press the Down switch to place the selection
arrow cursor next to the Alarm Output function�
The Setup Menu appears with the selection arrow cursor
next to the Backlight option�
Scroll down to place the selection arrow cursor next to the
Alarm Output option�
From the Main Menu, scroll to place the selection arrow cursor
next to the Setup option�
Press the Enter switch to view the Setup Menu functions�
CAN DISPLAY MANUAL
NOVEMBER 02, 2015
