NMC-WOLLARD 100 - Figure 1-16: Menu Prompt Sequence with Previously Configured Alarms

NMC-WOLLARD 2021Truax Blvd., Eau Claire, WI 54703, Phone (715) 835-3151, Fax (715) 835-6625
M100 Tow Tractor Manual No. 46052
PAGE 24
CHAPTER 5 MANUFACTURER’S INFORMATION
17
NexSysLink
®
2" Stand-Alone CAN Display Operation Manual  SAE J1939
© 2011 Beede Electrical Instrument Co., Inc.

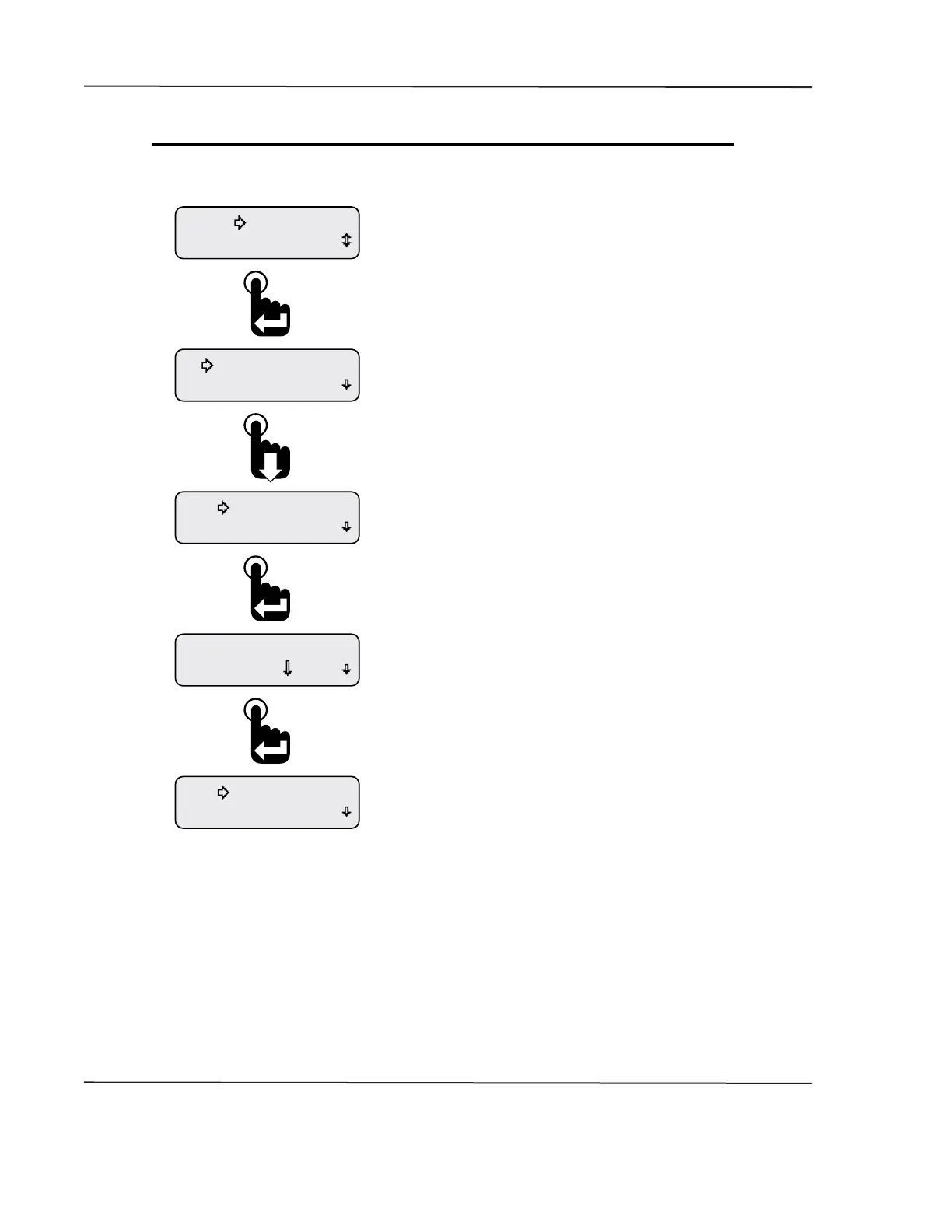

Figure 1-16: Menu Prompt Sequence with Previously Congured Alarms
Return
Add Alarm
Change? 10.0 V
A1 Alternator Volts
Return
Edit Alarms
View Alarms
Alarms-Enabled
Mute Audio Alarm
Alarms
Press the Enter switch to add a new alarm or select
Return to bring back the Edit Alarms menu option�
When a previously congured alarm or alarms exists,
they will appear after selecting Edit Alarms�
Scroll down thru all the previously congured alarms
to reach the Add Alarm menu function�
With the selection arrow cursor next to the Edit Alarms
option, press the Enter switch to begin editing alarms�
The Alarm menu appears with the selection arrow
cursor next to the Alarms-Enabled or Disabled option�
Scroll down to place selection arrow cursor next to
Edit Alarms option�
From the Main Menu, scroll to place the selection
arrow cursor next to the Alarms option�
Press the Enter switch to open Alarms Menu�
