NMC-WOLLARD 2021Truax Blvd., Eau Claire, WI 54703, Phone (715) 835-3151, Fax (715) 835-6625
M100 Tow Tractor Manual No. 46052
PAGE 26
CHAPTER 2 MAINTENANCE
3 REMOVAL AND INSTALLATION
AUGUST 31, 2008
3.13.6 Setting Pitman Arm Stops
1. Turn the wheels with the steering wheel in one direction until the axle stop
bolt just contacts the axle pivot weldment. Do not force.
2. Turn the pitman arm adjuster bolt on the side where the pitman arm
contacts, so the travel is limited to this position. Lock stop bolt with jam nut.
3. Turn wheels in opposite direction and make the same adjustment as in step
2. above.

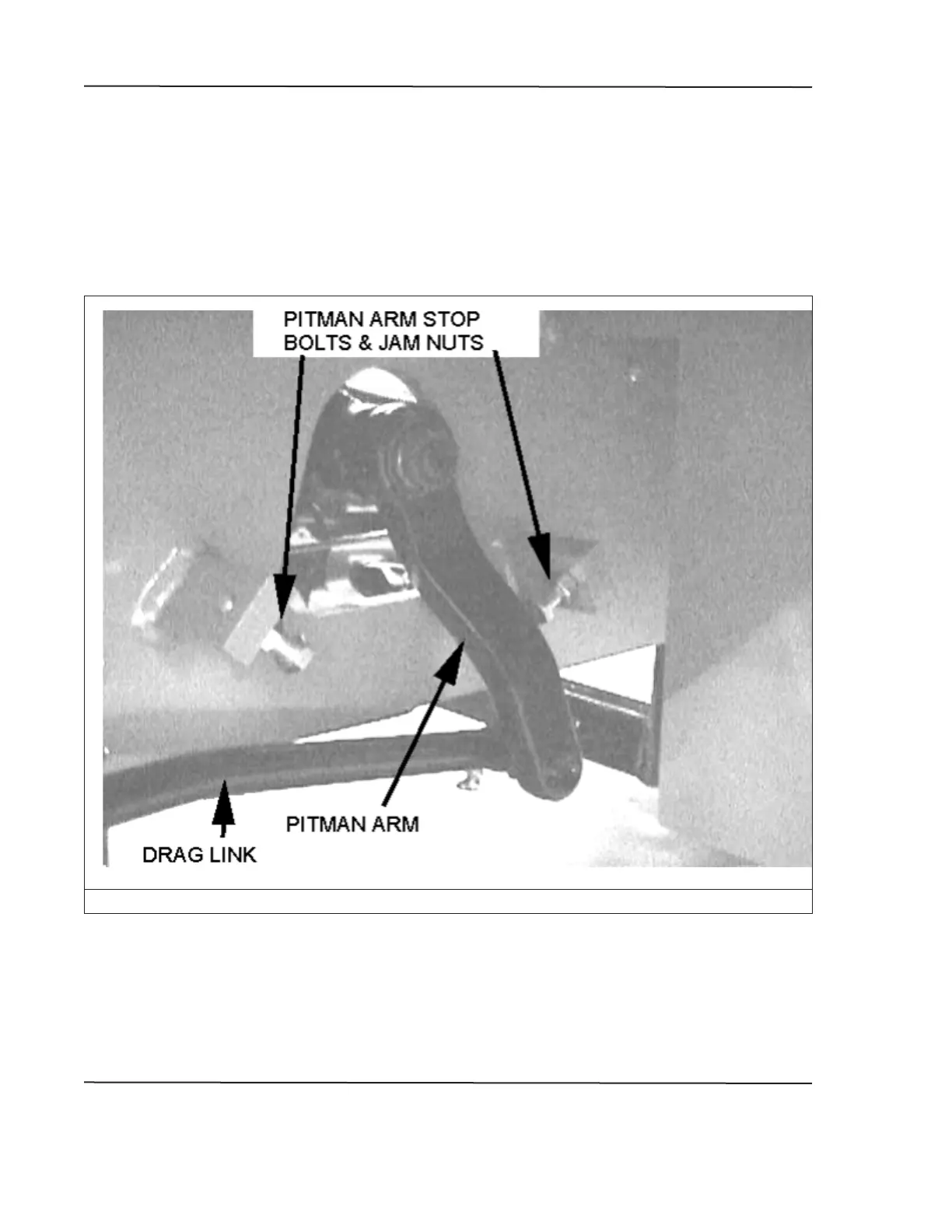

FIGURE 6. PITMAN ARM STOPS
