NMC-WOLLARD 100 - Intermediate Servo and Band

NMC-WOLLARD 2021Truax Blvd., Eau Claire, WI 54703, Phone (715) 835-3151, Fax (715) 835-6625
M100 Tow Tractor Manual No. 46052
PAGE 93
CHAPTER 5 MAUFACTURER’S INFORMATION
C-6 TRANSMISSION PARTS
Fig.-
Item
NMC
Wollard
Part No.
Vendor
Part No.
Nomenclature E󰀨 Units
Per
Assy
1
302314
302315
302316
C8SZ-TD028-B
D1AZ-7D028-A
D6OZ-7D028-A
Spring, Inter. Band Servo (Yellow)
Spring, Inter. Band Servo (Brown)
Spring, Inter. Band Servo (Pink)
1
2
302317 D5TZ-7D024-B Seal, Intermediate Band Servo
Cover
1
3
302318 D5UZ-7D021-B Piston Assy, Inter. Band Servo 1
4
302319 C6AZ-7D025-A Seal, Intermediate Brake Drum 1
5
302320 D5TZ-7D024-B Seal, Inter. Band Servo Cover 1
6
302321 D4AZ-7D026-A Gasket, Inter. Band Servo Cover 1
7 302322 D3AZ-7D027-A
Cover, Inter. Band Servo 1
8
Comm 57633-S2 HHCS, 5/16-18 x 0.75 4
9
302323 353079-S Ball, 1/2” 1
10
302324 C6AZ-7D433-A Shaft, Inter. Band Actuating Lever 1
11
302325 C6AZ-7330-B Lever, Inter. Band Servo 1
12
302326 C7AZ-7E206-A Retainer, Inter. Band Servo Lever 1

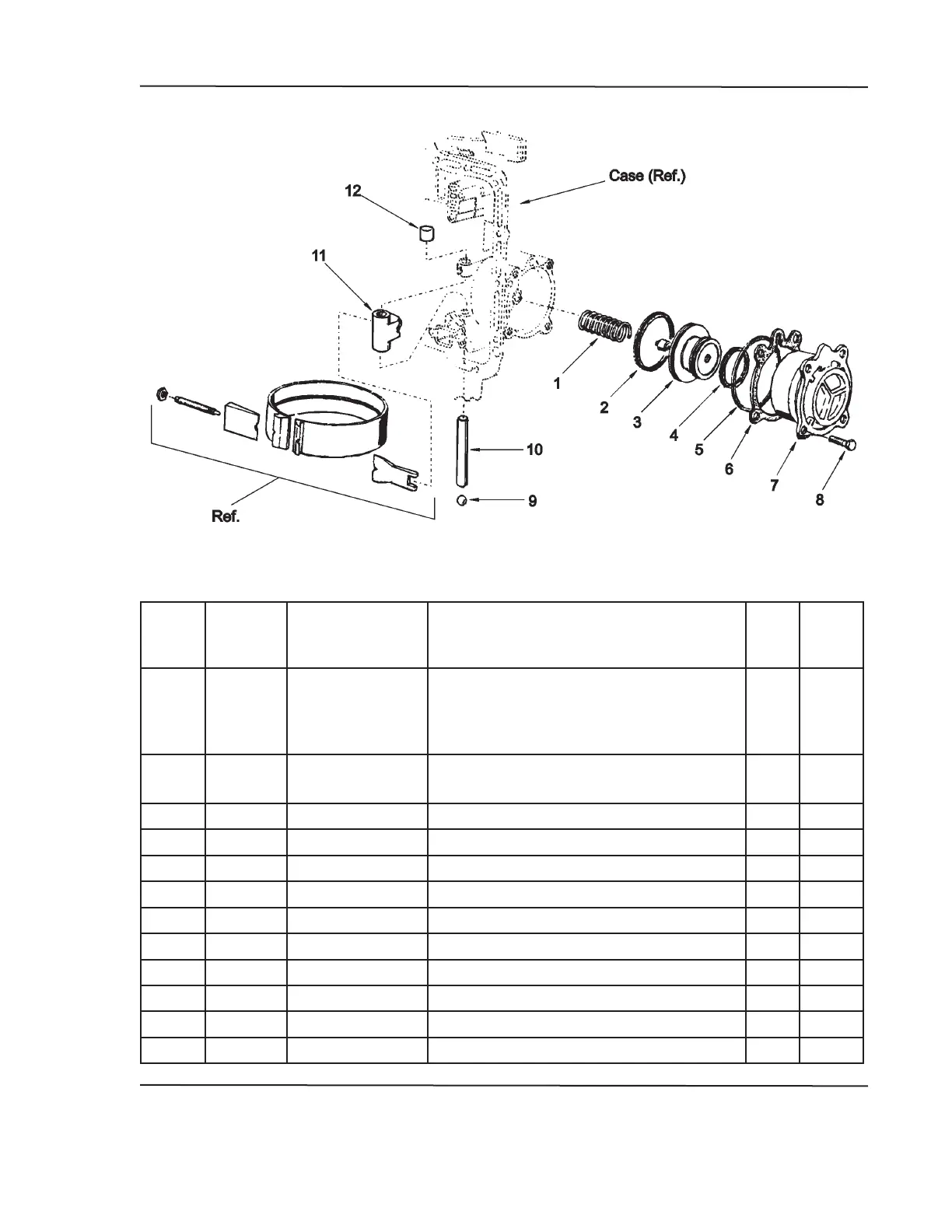

Figure 2
INTERMEDIATE SERVO AND BAND
JANUARY 31, 2007
