CHAPTER 5 MAUFACTURER’S INFORMATION
8
NexSysLink
®
2" Stand-Alone CAN Display Operation Manual  SAE J1939
© 2011 Beede Electrical Instrument Co., Inc.
• Warnings Active
Warnings are an indicator of a vehicle problem as reported by the ECM/ECU that does not warrant
immediately stopping the vehicle or vessel� Users should consult the owners manual or a service
technician to correct the warning condition or conditions�
When a warning condition occurs, the instruments internal audible alarm and Warn LED are activated�
The internal audible alarm may be temporarily muted by pressing the Enter switch�
An external audible device connected to output pin 3 of the six pin connector will also be muted if the
setup option Alarm Output, Main Menu-Setup-Alarm Output, is set to Audio� See "Alarm Output" on
page 32 to congure alarm output pin�
The Main Menu-Warnings Active option allows users to view the parameter or parameters causing the
warning� If popups for warning conditions is enabled, a warning notication screen appears� Refer to
"Setting Popups" on page 25�
The built-in audible device will sound when a warning condition occurs if the Mute setting, Main Menu-
Mute Audio Alarm, is not set to Permanent� See "Mute" on page 20 for enabling the internal audible
device�
The active warning display will not time out after 30 seconds� Press the Enter switch to exit viewing
warnings and return to the Warnings Active option of the Main Menu�

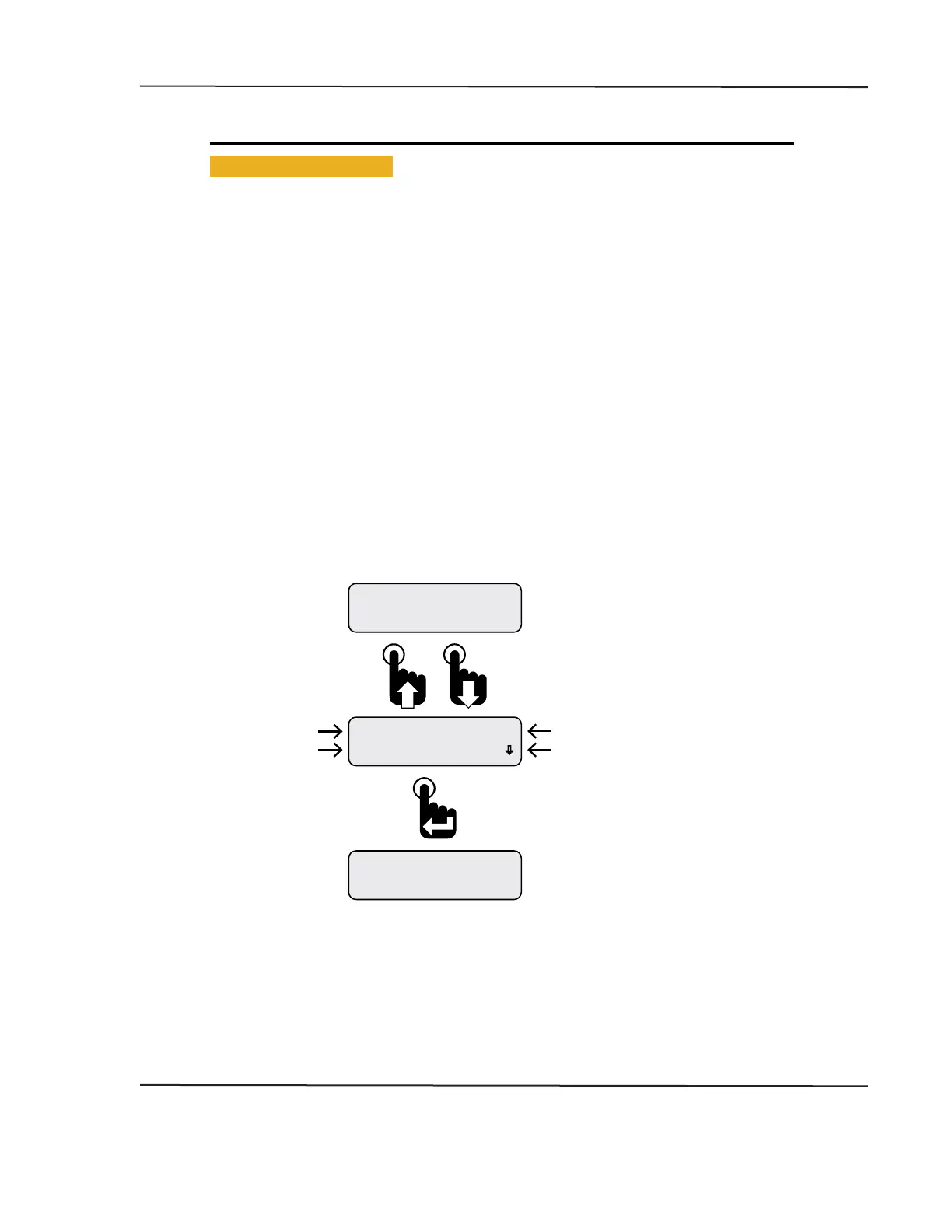

Figure 1-7: Warning Notication and Information Screens
Engine Hours
1049.3
WARNING
Eng Oil Pressure
Warning SPN 100
Pressing the Enter switch returns
the last displayed CAN parameter�
Engine Hours CAN parameter
shown as an example only�
A warning notication screen appears when
popups are enabled and a warning condition
occurs�
Refer to setting popups�
Menu Scroll Icon�
Appears only if more warnings
are present�
Suspect Parameter Number
Parameter Name
Warning Label
