NMC-WOLLARD 2021Truax Blvd., Eau Claire, WI 54703, Phone (715) 835-3151, Fax (715) 835-6625
M100 Tow Tractor Manual No. 46052
PAGE 10
CHAPTER 4 REPAIR PARTS
4 ILLUSTRATED PARTS LIST
JANUARY 31, 2008

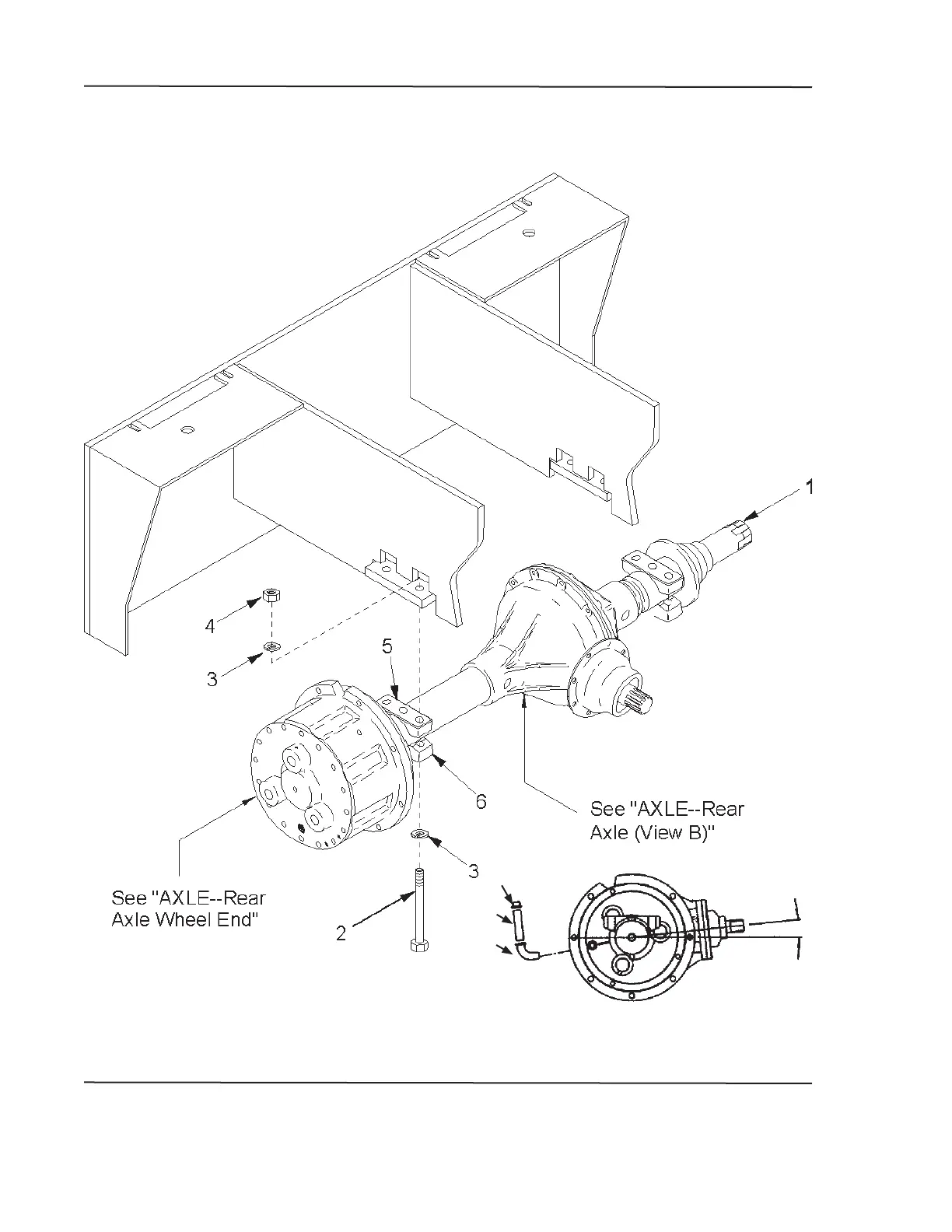

FIGURE 5.
AXLE, REAR
7
8
9
NOTE: ON AIRLINE UNITS, AXLES ARE
SECURED TO REAR SPRINGS. SEE FIG.
4 OPTIONS.
ALSO SEE WHEELS AND TIRES
