5. Adjust cable length by turning clevis in or out until clevis will slide through
clevis and shift lever without movement of shift lever or control lever.
6. Move control lever through entire shift range one position at a time,
checking shift lever detent at each position.
7. Tighten clevis lock nut. Install clevis and a new self-locking nut. Tighten nut
Neutral Starting Switch
The neutral starting switch is a safety device which prevents the engine from
starting if the transmission is in any shift position other than NEUTRAL.
Testing the Neutral Start Switch
1. Disconnect electrical lead at neutral starting switch.
2. Connect one lead of a test lamp to switch terminal and other lead to battery
positive terminal.
3. Move control lever (on transmission) through shift positions while watching
test lamp. Lamp should light only when control lever is in NEUTRAL
position.
1 SERVICING
APRIL 15, 2012

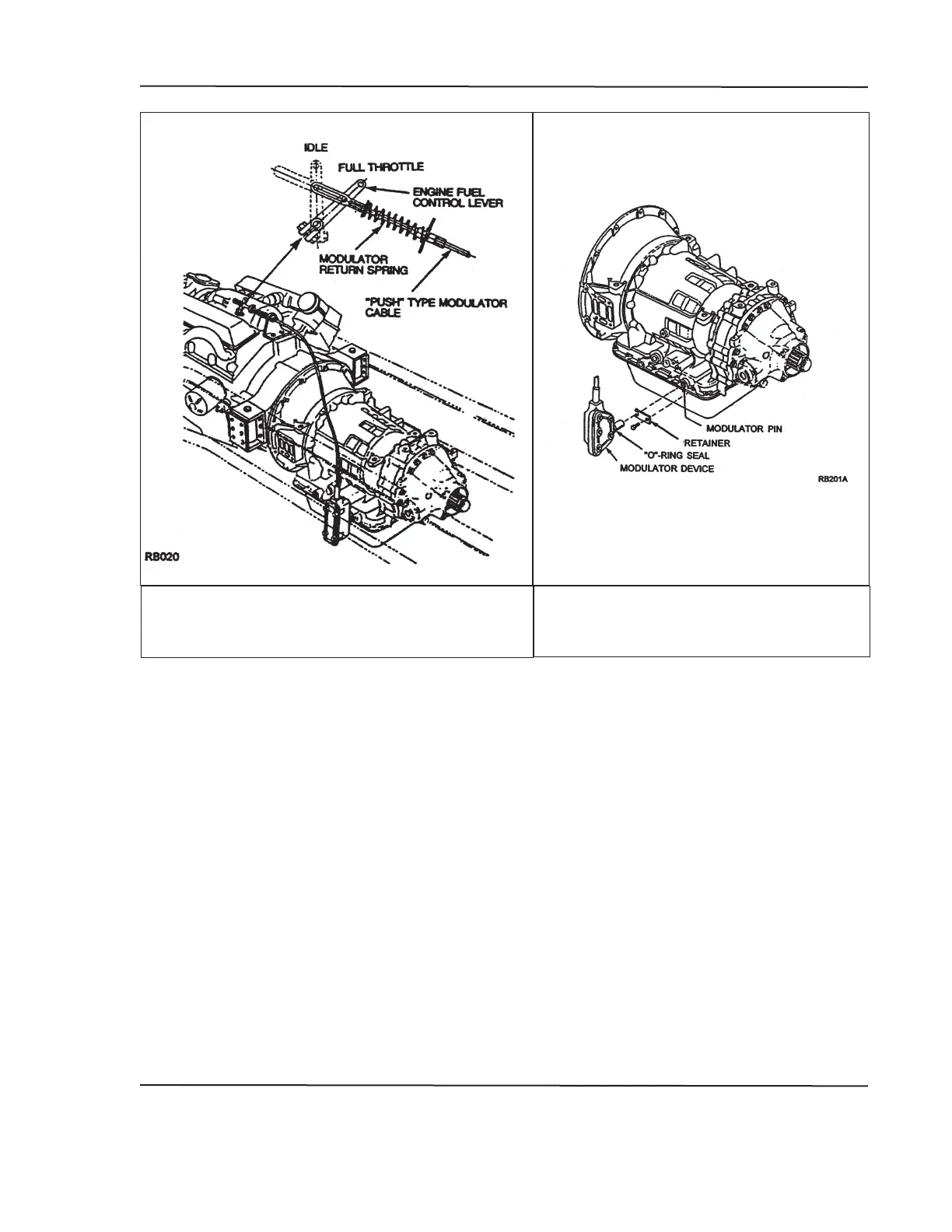

FIGURE 11. MECHANICAL MODULATOR
INSTALLATION
FIGURE 12. MECHANICAL
MODULATOR COMPONENTS
