NMC-WOLLARD 100 - Page 147

NMC-WOLLARD 2021Truax Blvd., Eau Claire, WI 54703, Phone (715) 835-3151, Fax (715) 835-6625 M100 Tow Tractor Manual No. 46052
PAGE 25
CHAPTER 2 MAINTENANCE
JANUARY 15, 2015
2 TROUBLESHOOTING

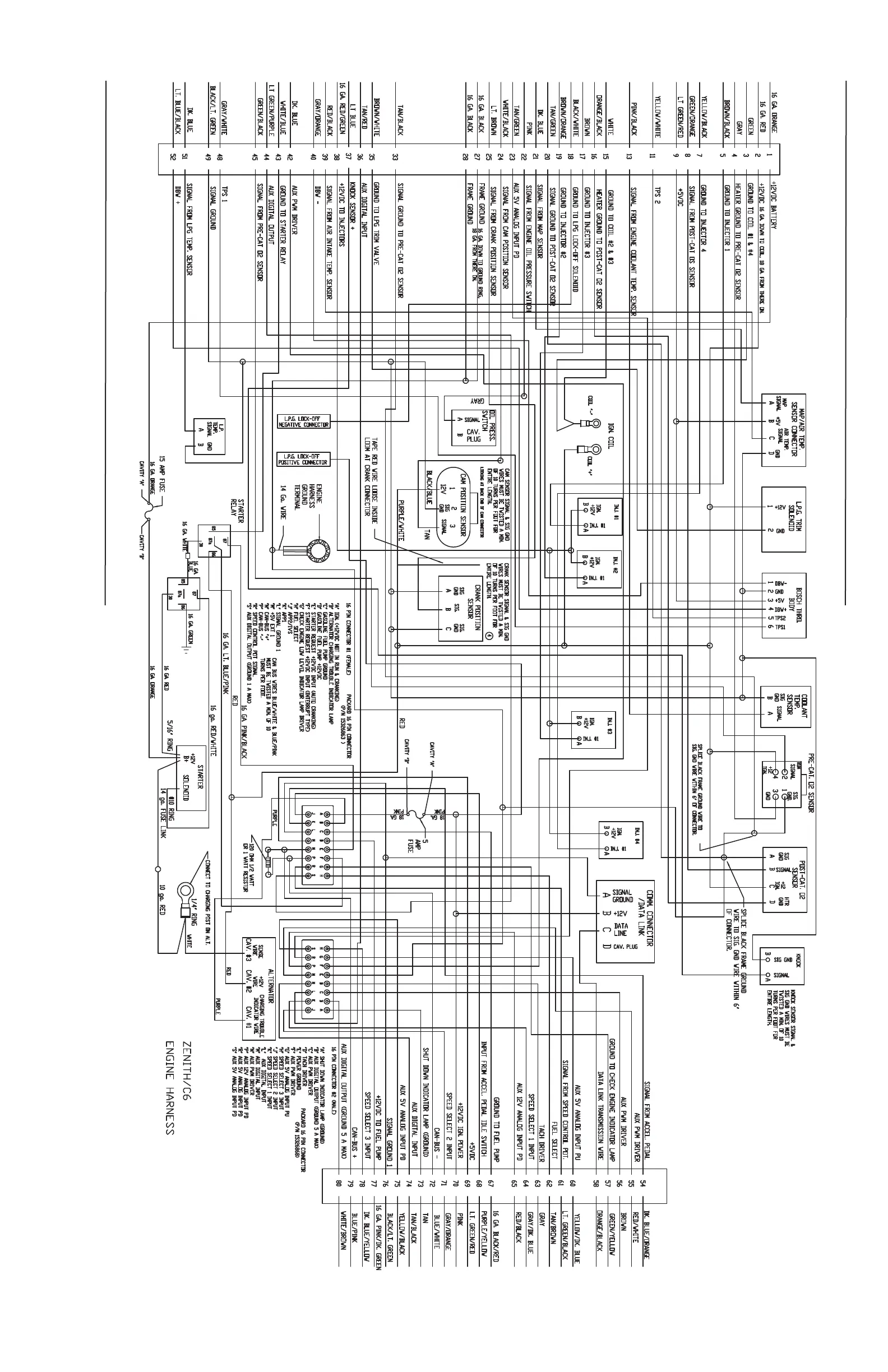

FIGURE 13 . ZENITH/C6 WITH CANBUS COOLANT TEMP. GAUGE (4 0F 4)
50564-4
