NMC-WOLLARD 2021Truax Blvd., Eau Claire, WI 54703, Phone (715) 835-3151, Fax (715) 835-6625
M100 Tow Tractor Manual No. 46052
PAGE 13
CHAPTER 2 MAINTENANCE
3 REMOVAL AND INSTALLATION
AUGUST 31, 2008

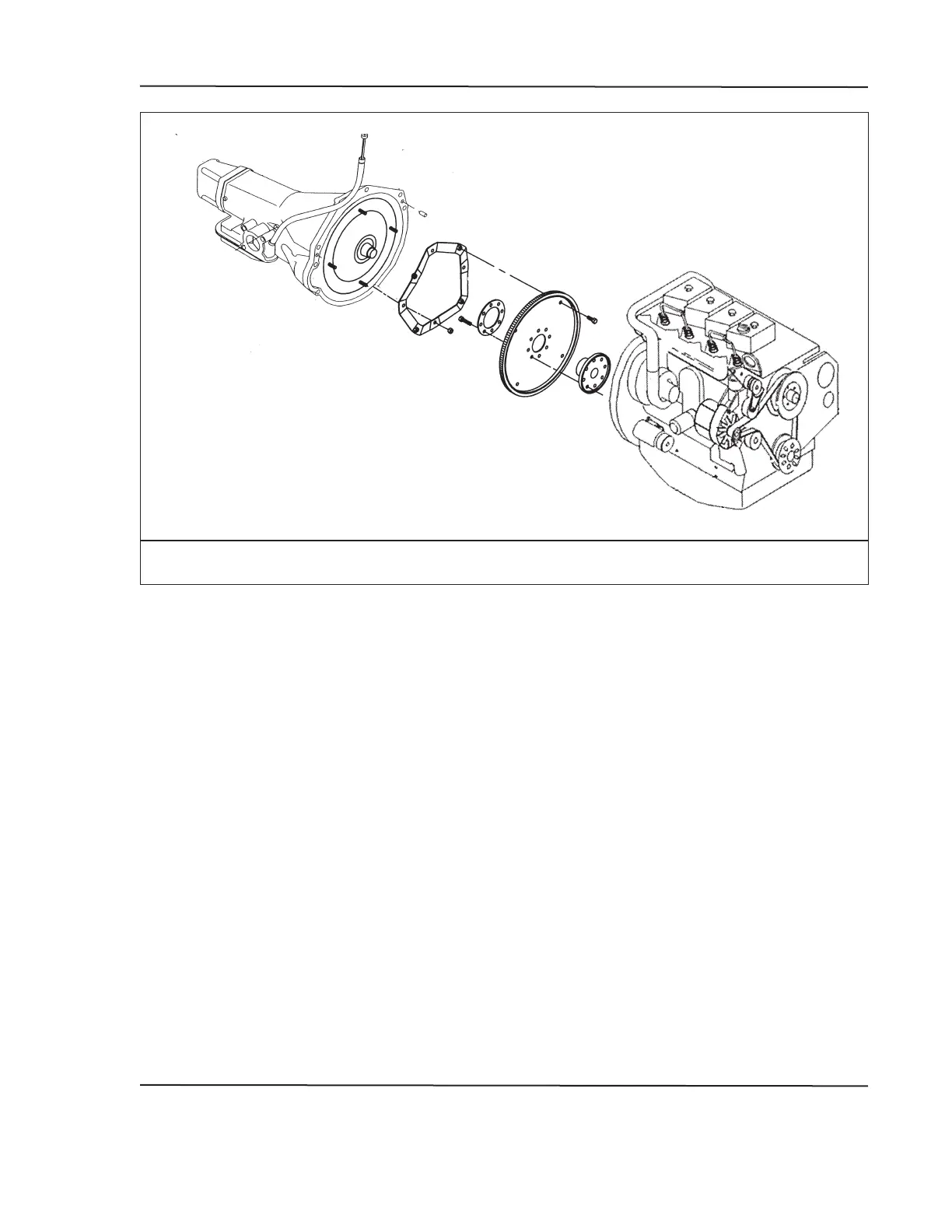

FIGURE 2. ENGINE/C6 TRANSMISSION ASSEMBLY
CUMMINS ILLUSTRATED
8. Disconnect downshift and manual linkage rods or cable controls from levers at
transmission.
9. Disconnect oil cooler lines from transmission. Disconnect temperature sender
wire.
10. Remove vacuum hose from vacuum diaphragm unit. Remove vacuum line from
retaining clip.
11. Disconnect cable from terminal on starter motor. Remove the three attaching
bolts and remove starter motor.
12. Remove transmission rear support and insulator assembly attaching bolts at
bottom rear of transmission.
13.
14. Remove bolts securing transmission to frame and remove cross member.
15. Secure transmission to jack with safety chain.
16. Remove converter housing-to-engine attaching bolts.
17. Move transmission away from engine.
18. Lower transmission jack and move transmission and converter assembly from
under vehicle.
