M100 Tow Tractor Manual No. 46052
PAGE 7
CHAPTER 5 MAUFACTURER’S INFORMATION
v
NexSysLink
®
2" Stand-Alone CAN Display Operation Manual  SAE J1939
© 2011 Beede Electrical Instrument Co., Inc.

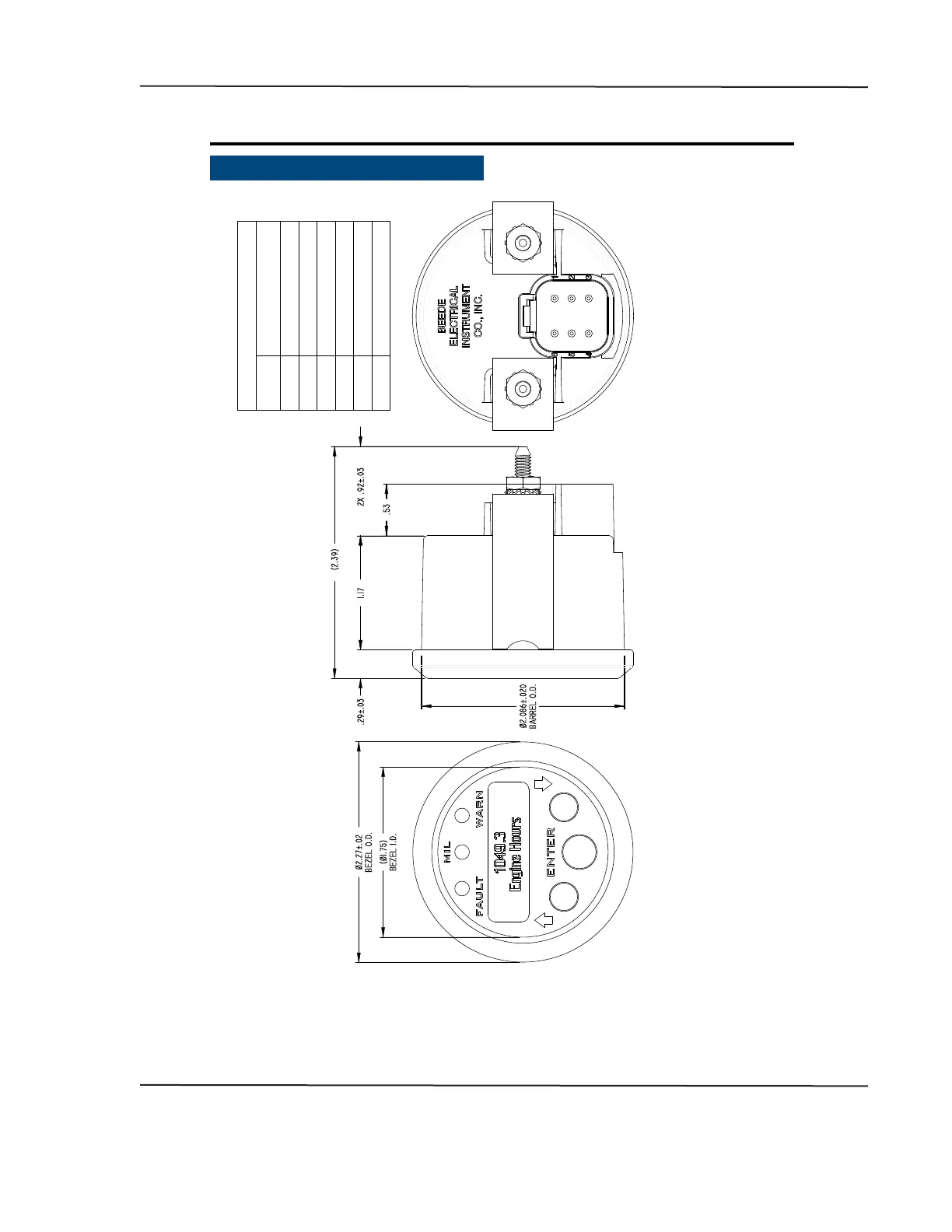

• Product Outline Drawing
Mounting hole size: Ø2.125±.015” (Ø53.98±0.38mm) Mounting hardware torque:
6 lb-in
(0.68 N-m) max. Refer to the appropriate Beede installation instruction sheet for complete installation requirements. Dimensions shown are in inches.



 






6 Pin Connector Wiring Table
Connection
Name
Battery +
Pin
Number
1
Ground2
Switched Output3
Lamp (B+) or Serial Data4
CAN-H5
CAN-L6
