GM 4L70 TRANSMISSION
© 2013 General Motors. All rights reserved

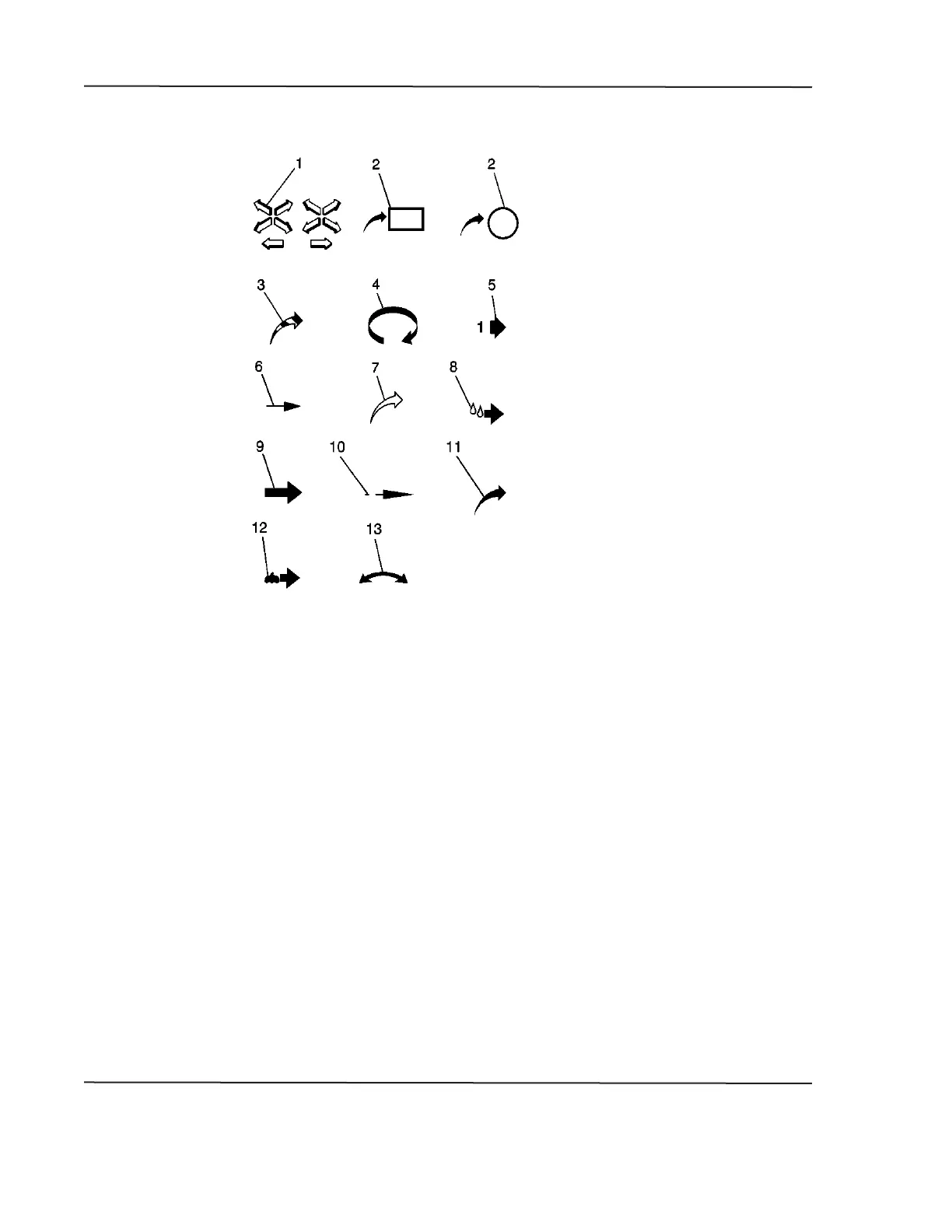

(1)
Front of Vehicle
(2)
View Detail
(2)
View Detail
(3)
Ambient Air Mixed with Another Gas or Indicate Temperature Change
(4)
Motion or Direction
(5)
View Angle
(6)
Dimension (1:2)
(7)
Ambient/Clean Air Flow or Cool Air Flow
(8)
Lubrication Point– Oil or Fluid
(9)
Task Related
(10)
Sectioning (1:3)
(11)
Gas Other Than Ambient Air or Hot Air Flow
(12)
Lubrication Point– Grease or Jelly
(13)
Multidirectional Arrow
