NMC-WOLLARD 100 - Page 833

NMC-WOLLARD 2021Truax Blvd., Eau Claire, WI 54703, Phone (715) 835-3151, Fax (715) 835-6625
M100 Tow Tractor Manual No. 46052
DECEMBER 15, 2013
PAGE 177
CHAPTER 5 MAUFACTURER’S INFORMATION
GM 4L70 TRANSMISSION
© 2013 General Motors. All rights reserved
11.
Remove and discard the case
extension O-ring seal (1).

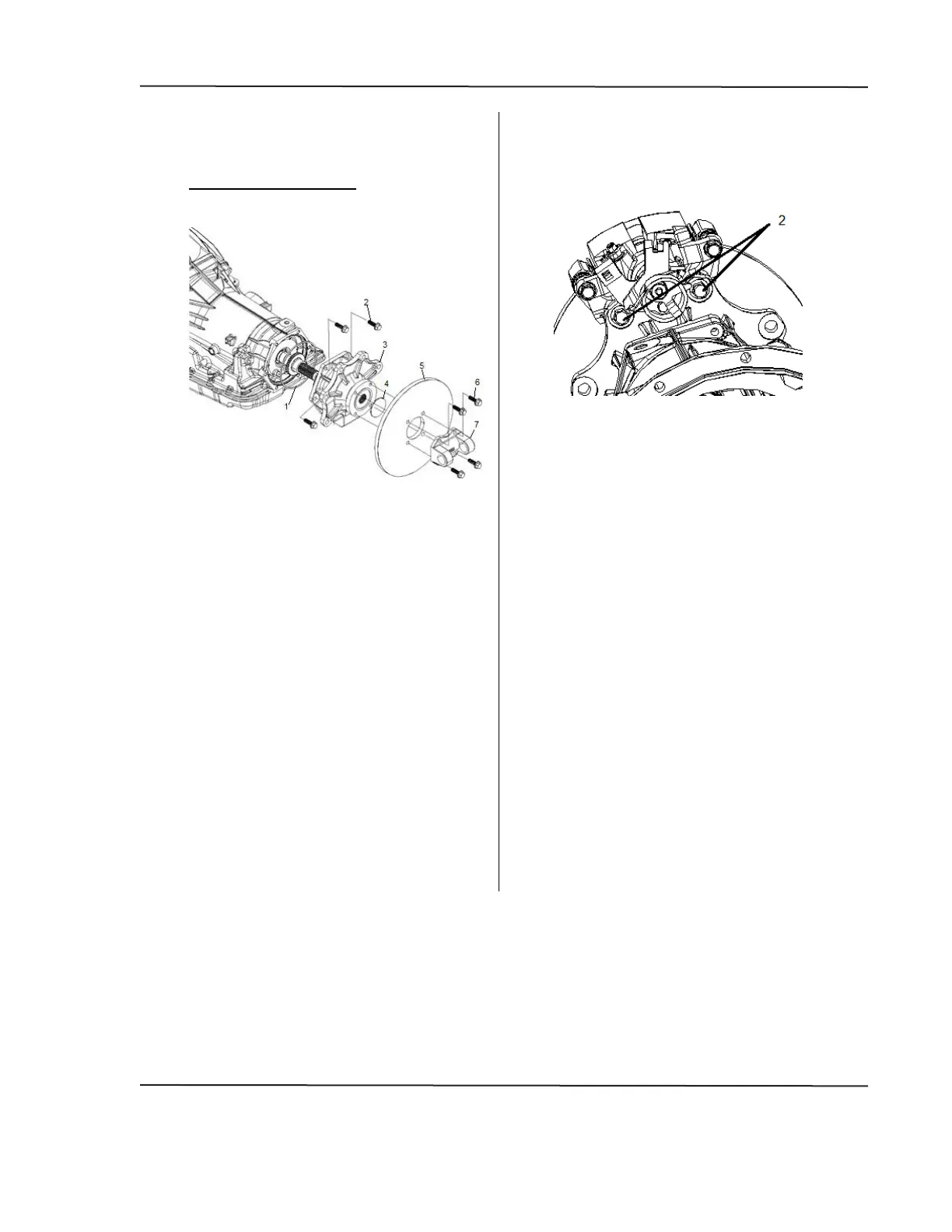

Installation Procedure
1.
Install a new case extension O-ring
seal (1).
Caution: Refer to Fastener Caution.
2.
Install the case extension (3).
Rotate flange as required to align
flange and output shaft splines.
3.
Install the case extension bolts (2)
and tighten to 45 N·m (33 lb ft) .
4.
Install the flange cap (4), rotor (5),
flange yoke (7).
5.
Install flange yoke bolts (6) and
tighten to 97 N m (72 lb ft).
6.
Install transmission mount. Refer
to Transmission Mount
Replacement.
7.
Install caliper over rotor and align
caliper mounting bracket bolts with
the appropriate extension housing
mounting holes.
8.
Install the brake caliper mounting
bracket bolts (2) and tighten to
130 N m (96 lb ft).
9.
Remove the drain pan and the
transmission jack.
10.
Install the propeller shaft
11.
Lower the vehicle.
12.
Fill the transmission to the proper
level with DEXRON® VI
transmission fluid. Refer to
Transmission Fluid Level and
Condition Check.
