M100 Tow Tractor Manual No. 46052
DECEMBER 15, 2013
PAGE 179
CHAPTER 5 MAUFACTURER’S INFORMATION
GM 4L70 TRANSMISSION

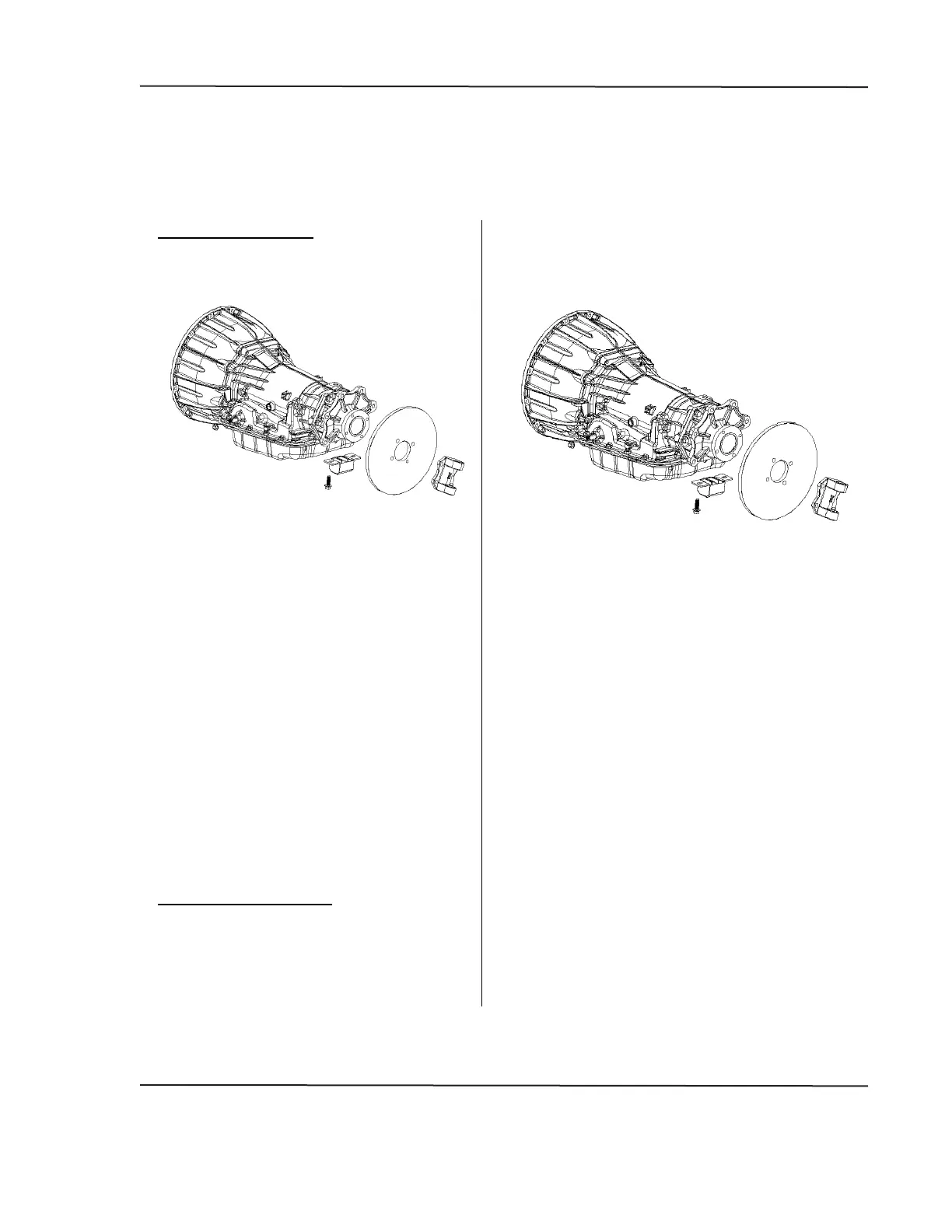

Transmission Mount Replacement
Removal Procedure
1.
Raise and suitably support the
vehicle as required. Refer to
manufacturer’s instructions
regarding Lifting and Jacking the
Vehicle.
2.
Support the transmission with a
transmission jack.
3.
Remove the transmission mount to
extension housing mounting
bolt(s)/nut(s).
4.
Remove the vehicle supporting
cross member bolt(s)/nut(s).
5.
Remove the transmission mount
from the vehicle.
Installation Procedure
1.
With the transmission still
supported, install the transmission
mount onto the vehicle support
cross member.
Caution:
Refer to
F
astener Caution.
2.
Install the transmission mount to
extension housing mounting bolts,
and tighten to 50 N·m (37 lb ft) .
3.
Install the transmission mount to
the support cross member
bolt(s)/nut(s).
4.
Tighten the transmission mount to
support cross member fastener.
Torque the transmission mount to
vehicle cross member support
nut(s)/bolt(s) to the vehicle
manufacturer’s recommended
torque.
5.
Remove the transmission jack
6.
Lower the vehicle
