2 Description of gear units
Pos: 26 /A nl eitu nge n/G etr iebe /2. Getr ie beb eschr ei bung /T ypen bez eic hnu nge n un d Ge tri ebe art en_ 01 [B 105 0, B 205 0] @ 29\ mod_1551802372814_388.docx @ 2498172 @ 2 @ 1

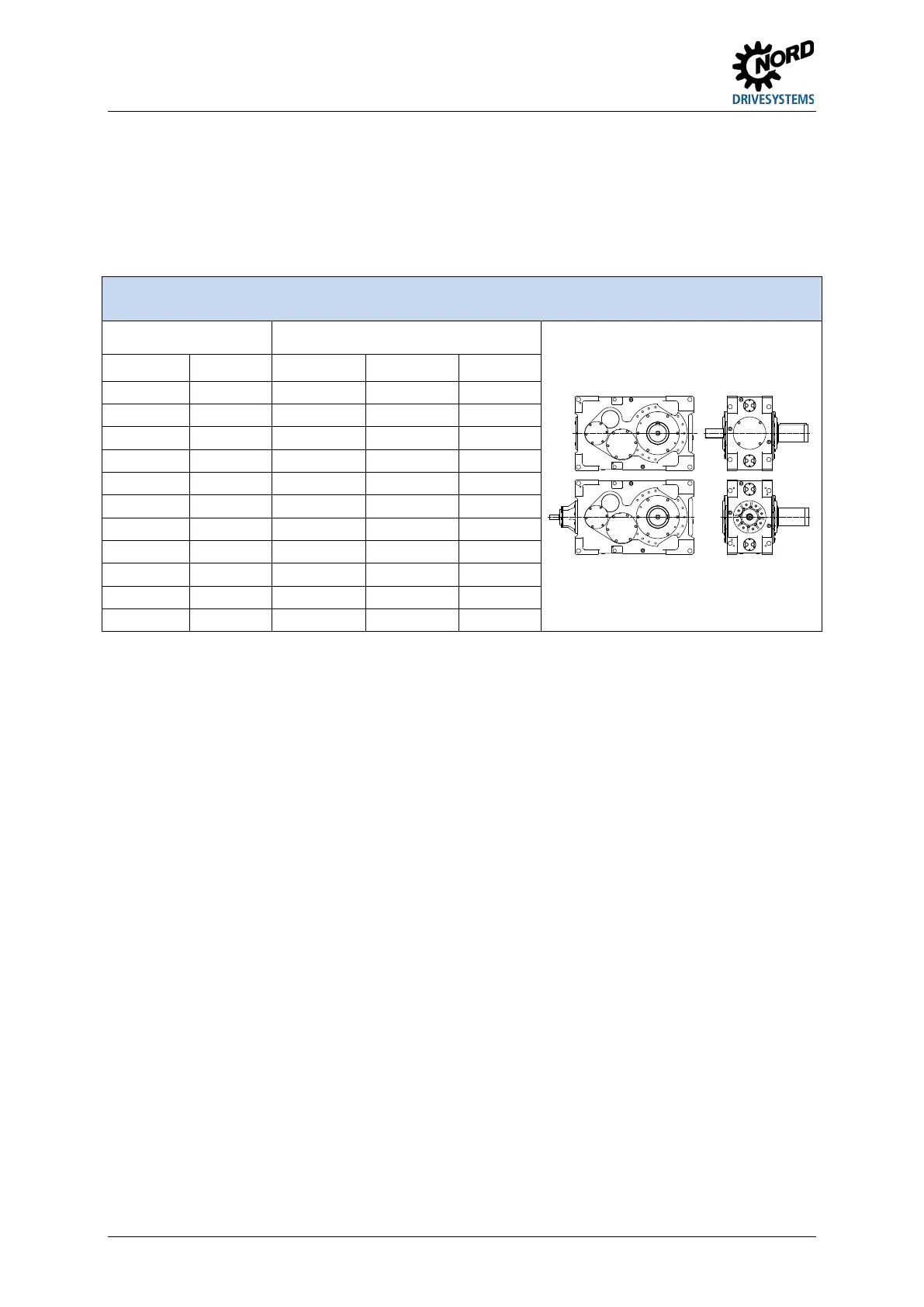

2.1 Type designations and gear unit types
Gear unit types / Type designations
Helical gear units
Helical bevel gear units
2-stage 3-stage 2-stage 3-stage 4-stage
SK 5207 SK 5307
SK 5217
SK 5407 SK 5507
SK 6207
SK 6307
SK 6217
SK 6407
SK 6507
SK 7207
SK 7307
SK 7217
SK 7407
SK 7507
SK 8207
SK 8307
SK 8217
SK 8407
SK 8507
SK 9207
SK 9307
SK 9217
SK 9407
SK 9507
SK 10207
SK 10307
SK 10217
SK 10407
SK 10507
SK 11207 SK 11307
SK 11217
SK 11407 SK 11507
SK 12207
SK 12307
SK 12407
SK 12507
SK 13207
SK 13307
SK 13407
SK 13507
SK 14207 SK 14307 SK 14407 SK 14507
SK 15207
SK 15307
SK 15407
SK 15507
Table 2: Type designations and gear unit types
Double gear units consist of two single gear units.
SK 5207 - SK 15507 and SK 5217 – SK 11217 gear units should be treated according to these
instructions. The operating and assembly manual B 1000 should be used for attached gear units.
Type designation for double gear units: e. g. SK 13307 /7282 (consisting of single gear units
SK 13307 and SK 7282).
