5.2.7 Venting
Pos: 17 4 /Anlei tung en/G etrieb e/5. In spekti on un d Wartu ng/Be- und Entlüftung_02-Bel üftu ngs filt er [ B1 050 , B2050] @ 31\mod_1553011464915_388.docx @ 2514362 @ 4 @ 1
5.2.7.1 Vent filter (Option: FV)
The standard ventilation filter uses a wire mesh as the filter material. The filter cannot be cleaned and
must therefore be completely replaced.
1. Unscrew the old ventilation filter
2. Screw in the new ventilation filter with a new sealing ring (7.4 "Torque values")

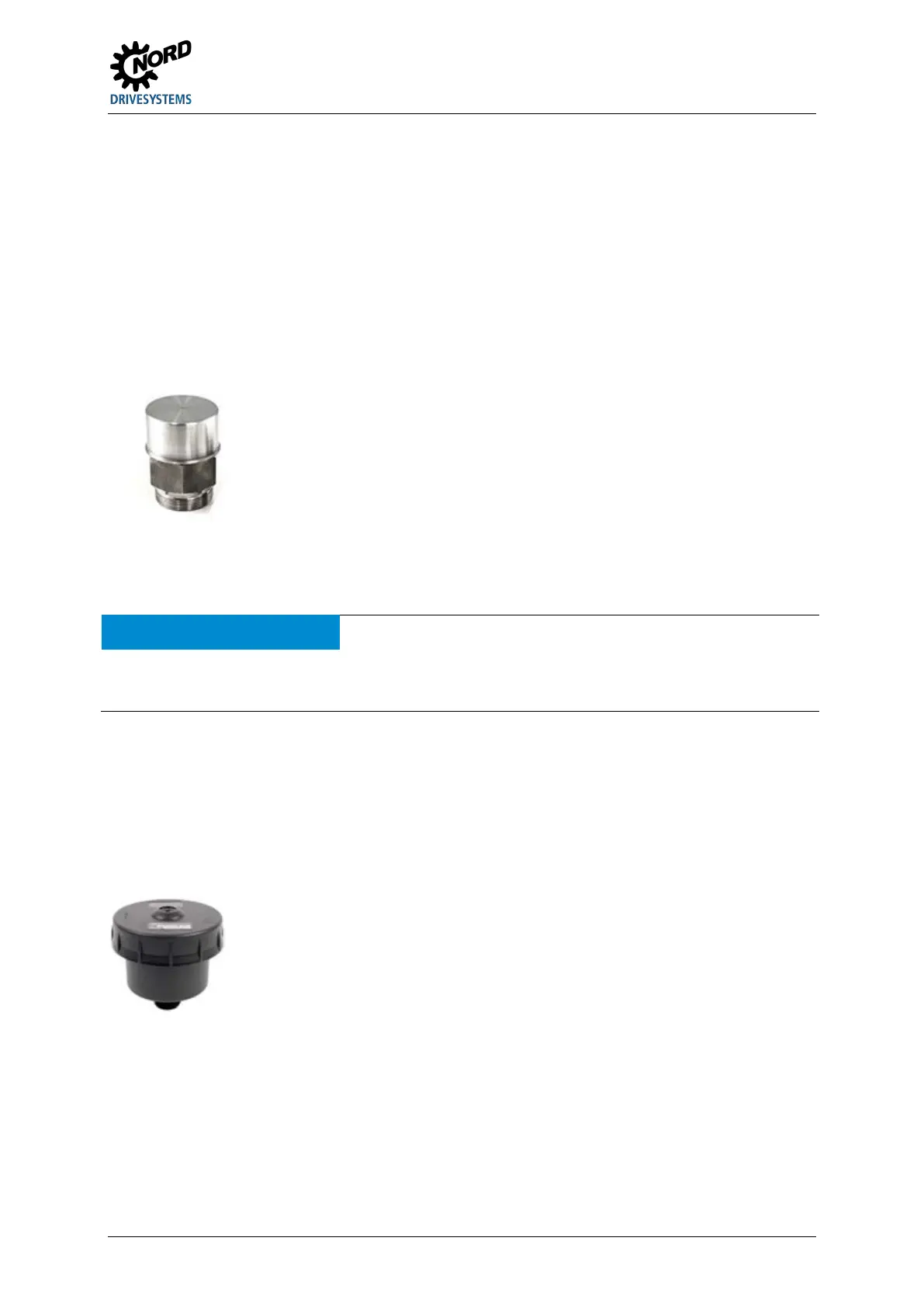

Figure 29: Vent filter (Option FV)
Pos: 17 5 /Anlei tung en/G etrieb e/5. In spekti on un d Wartu ng/Be- und Entlüftung_03-Cell ul osefi lt er_ 01 [ B105 0, B 205 0] @ 3 1\mod_1553011477724_388.docx @ 2514402 @ 4 @ 1
5.2.7.2 Cellulose filter (Option: EF)
Pos: 17 6 /Anlei tung en/G etrieb e/5. In spekti on un d Wartu ng/Be- und Entlüftung_04-Cell ul osefi lt er_ 02 [ B105 0] @ 3 1\mod_1553011491089_388.docx @ 2514442 @ @ 1
NOTICE!
Gear unit damage
The separate filter manufacturer’s documentation must be observed.
Pos: 17 7 /Anlei tung en/G etrieb e/5. In spekti on un d Wartu ng/Be- und Entlüftung_05-Cell ul osefi lt er_ 03 [ B105 0, B 205 0] @ 3 1\mod_1553011524408_388.docx @ 2514522 @ @ 1
This filter uses cellulose as the filter material. The filter insert is replaceable.
1. Unscrew the cap of the filter insert
2. Remove and check the filter element
3. Optional: Replace the filter element in case of contamination
4. Insert the filter insert
5. Put on the cover and tighten finger-tight
Figure 30: Cellulose filter (Option EF)
