3 Assembly instructions, storage, preparation, installation
B 1050 en-1819 21
Pos: 41 /Anlei tung en/ Ge trie be/3. Mo nt age , Lag er ung, Vor ber eitu ng, Au fst ellu ng/T ra nspor t d es Getr iebes - R ührw erksa usführ ung [B 1050 _B205 0] @ 28\mod_1551451246838_388.docx @ 2494429 @ 3 @ 1
3.1.4 with V-belt drive
Agitator version gear units may only be transported with lifting ropes and chains or lifting straps at an
angle of 90° to 70° to the horizontal.
The ring bolts on the motor must not be used for transportation.
Legend
1:
Lifting strap
2:
Shackle
:
Not permissible
:
Permissible

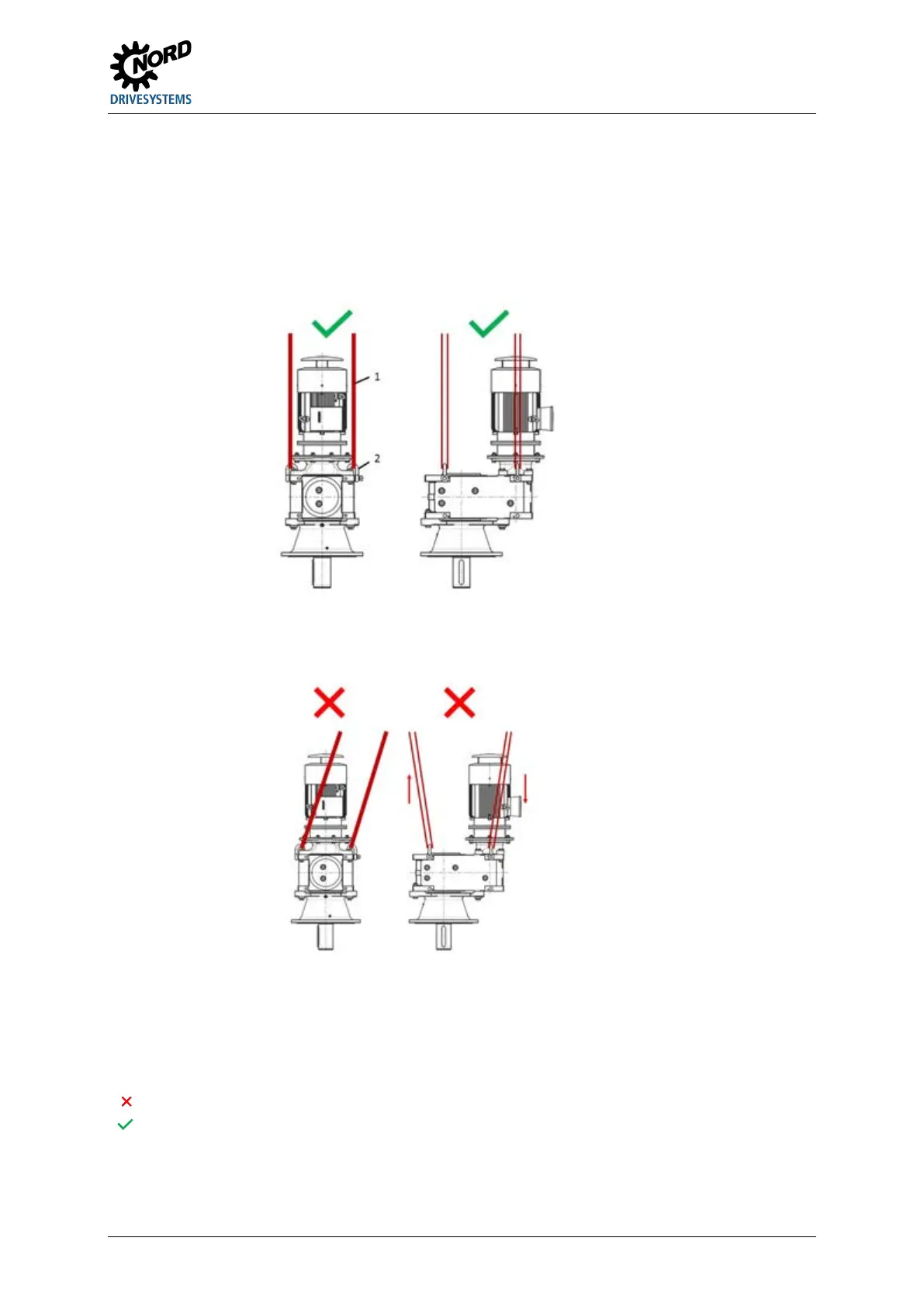

Figure 5: Transport of agitator version gear units
