Nord Drivesystems B 1050 Series User Manual

Industrial gear units – Operating and Assembly Instructions
42 B 1050 en-1819
Pos: 77 /A nl eitu nge n/G etr iebe /3. Mont ag e, L ager ung, Vorbereitung, Aufstellung/Riemenantrieb_03 [B1050] @ 30\mod_1552922743093_388.docx @ 2511071 @ @ 1

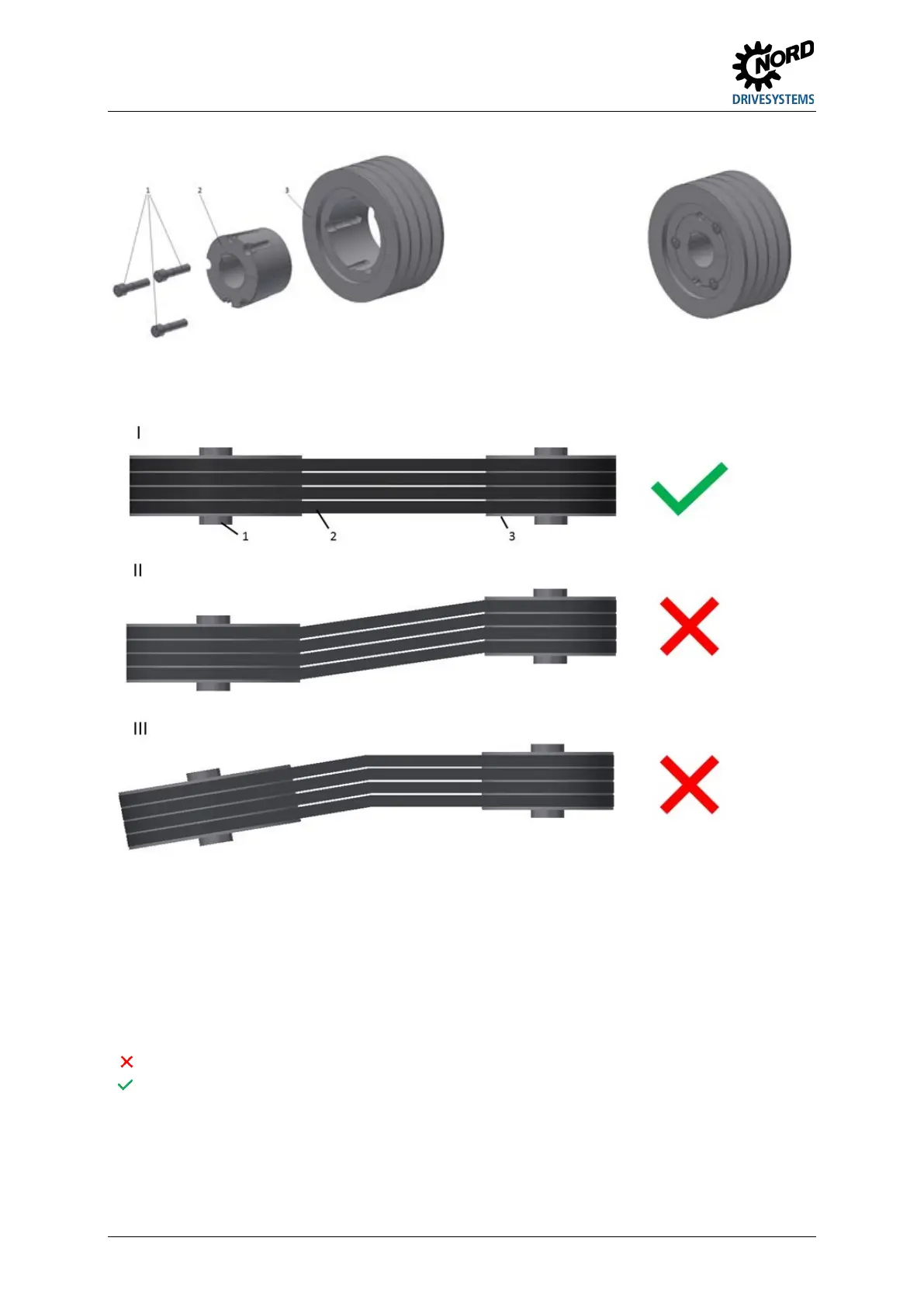

Legend
1:
Studs or cylindrical
screws
2:
Tapered bushing
3:
V-belt pulley
Figure 14: V-belt pulley (disassembled/assembled)
Legend
1:
Axle (shaft)
2:
Belt
3:
Belt pulley
I:
Aligned pulleys on parallel axis shafts
II:
Axial displacement of the pulleys
III:
Horizontal angular displacement of axles
:
Not permissible
:
Permissible
Figure 15: Axle alignment (belt drives)
