Nord Drivesystems B 1050 Series User Manual

3 Assembly instructions, storage, preparation, installation
B 1050 en-1819 45
Explanation
1 Intake connection
2 Pump
3 Heat exchanger
4 Cooling system pressure connection
5
Temperature monitor (PT100)
6
Cooling water connection

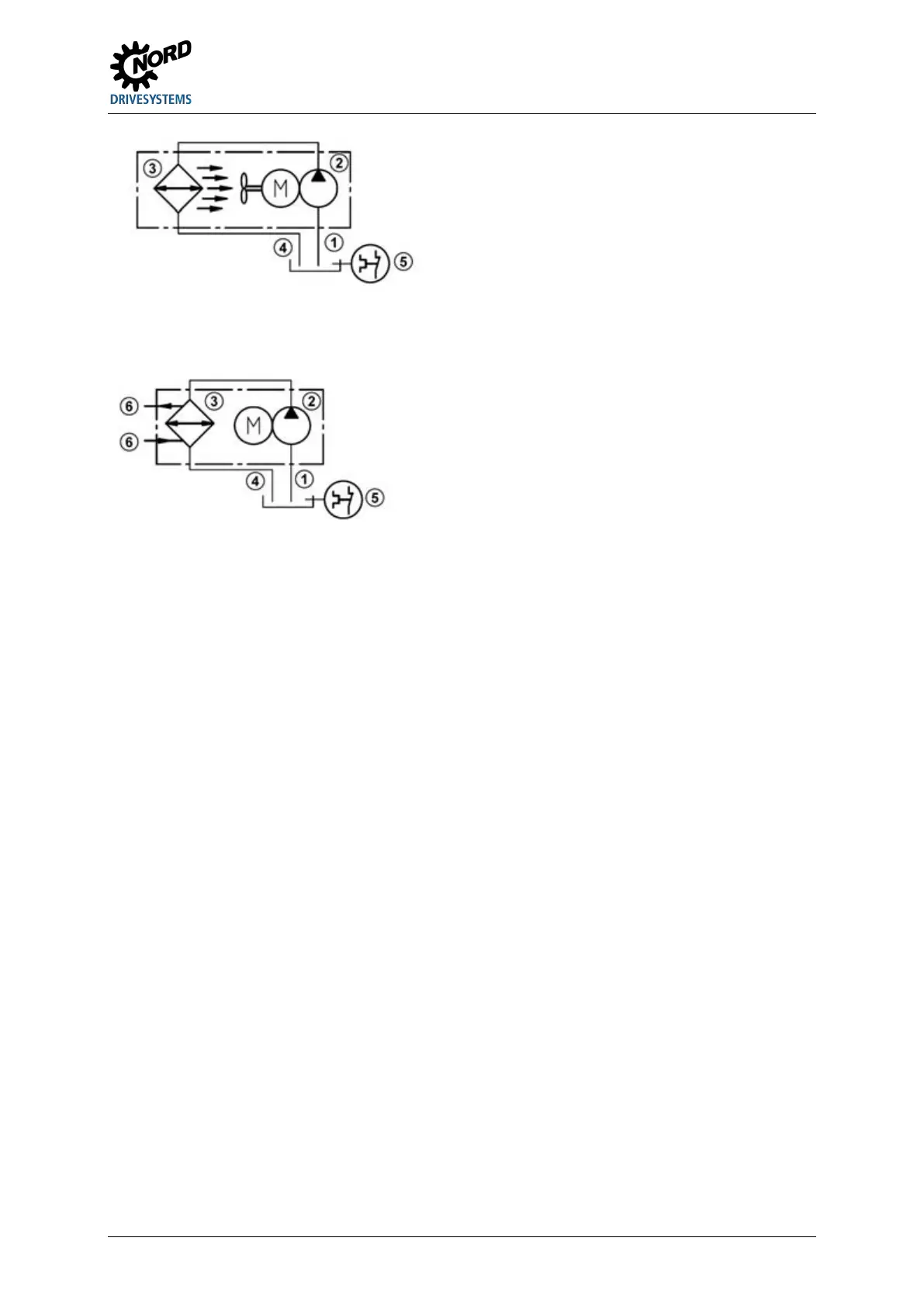

Figure 18: Hydraulic plan of industrial gear units with CS1-X and CS2-X cooling systems
