3.1.1 Standard gear units
Gear units may only be transported with lifting ropes and chains or lifting straps at an angle of 90° to
70° to the horizontal.
Legend
1:
Lifting strap
2:
Shackle
:
Not permissible
:
Permissible

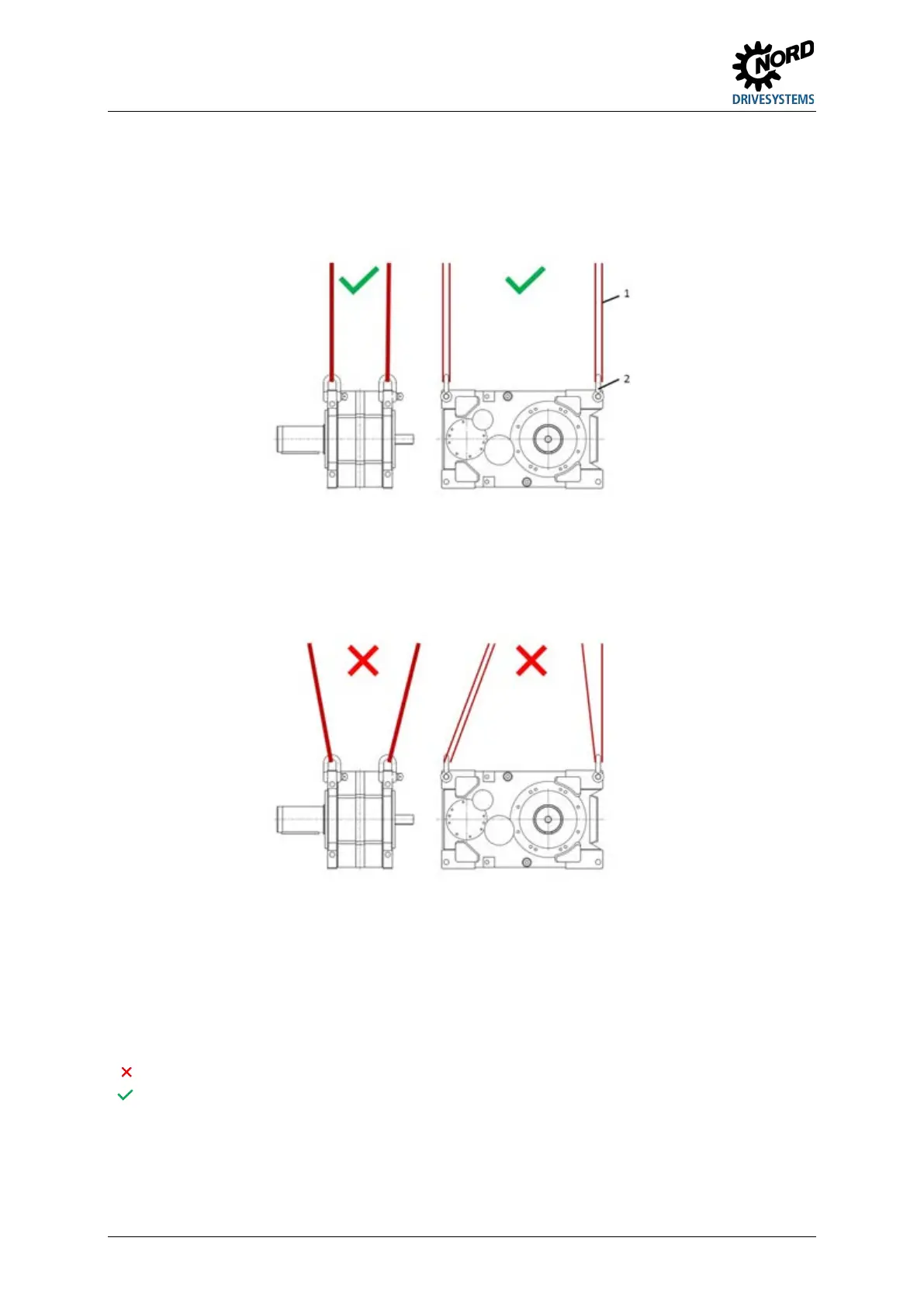

Figure 2: Transport of standard gear unit
