3 Assembly instructions, storage, preparation, installation
B 1050 en-1819 19
Pos: 37 /A nl eitu nge n/G etr iebe /3. Mont ag e, L ager ung , V orb erei tung , Aufs tell ung /Tr ans port des Ge trie bes - Motoradapter [B1050_B2050] @ 29\mod_1552033260962_388.docx @ 2499916 @ 3 @ 1
3.1.2 with motor adapter
Gear units with motor adapters may only be transported with lifting ropes and chains or lifting straps at
an angle of 90° to 70° to the horizontal.
The ring bolts on the motor must not be used for transportation.
Legend
1:
Lifting strap
2:
Shackle
:
Not permissible
:
Permissible

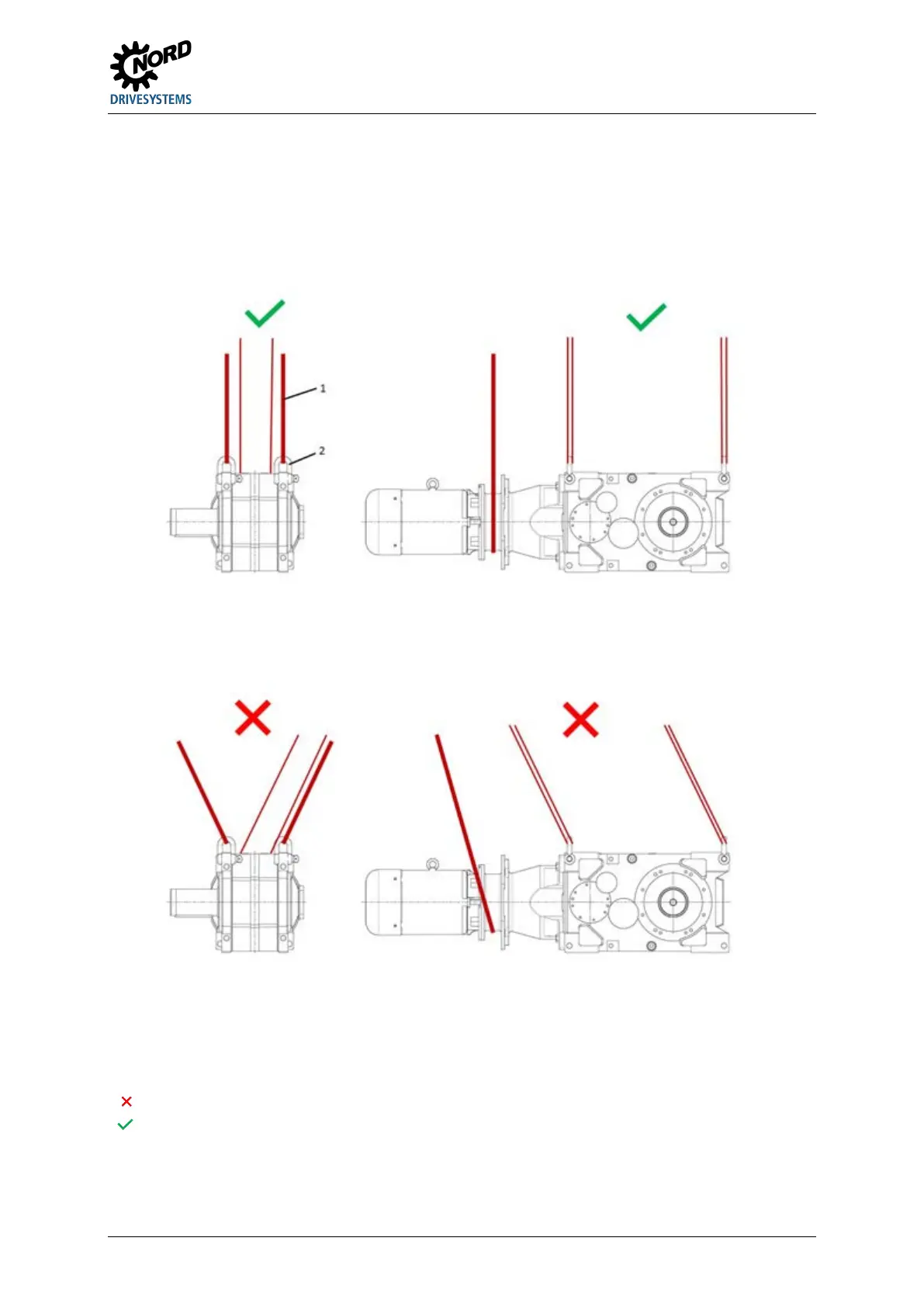

Figure 3: Transport of gear unit with motor adapter
