3.5 Checking the type plate data
NOTICE! Gear unit damage
The type plate must be checked and the gear unit may only be commissioned if:
• It has been ensured that the gear unit type, all technical data and labelling conform to the planning of the
plant or the machine.
The type plate must be firmly attached to the gear unit and must not be subjected to permanent
soiling. Please contact the NORD Service department if the type plate is illegible or damaged.

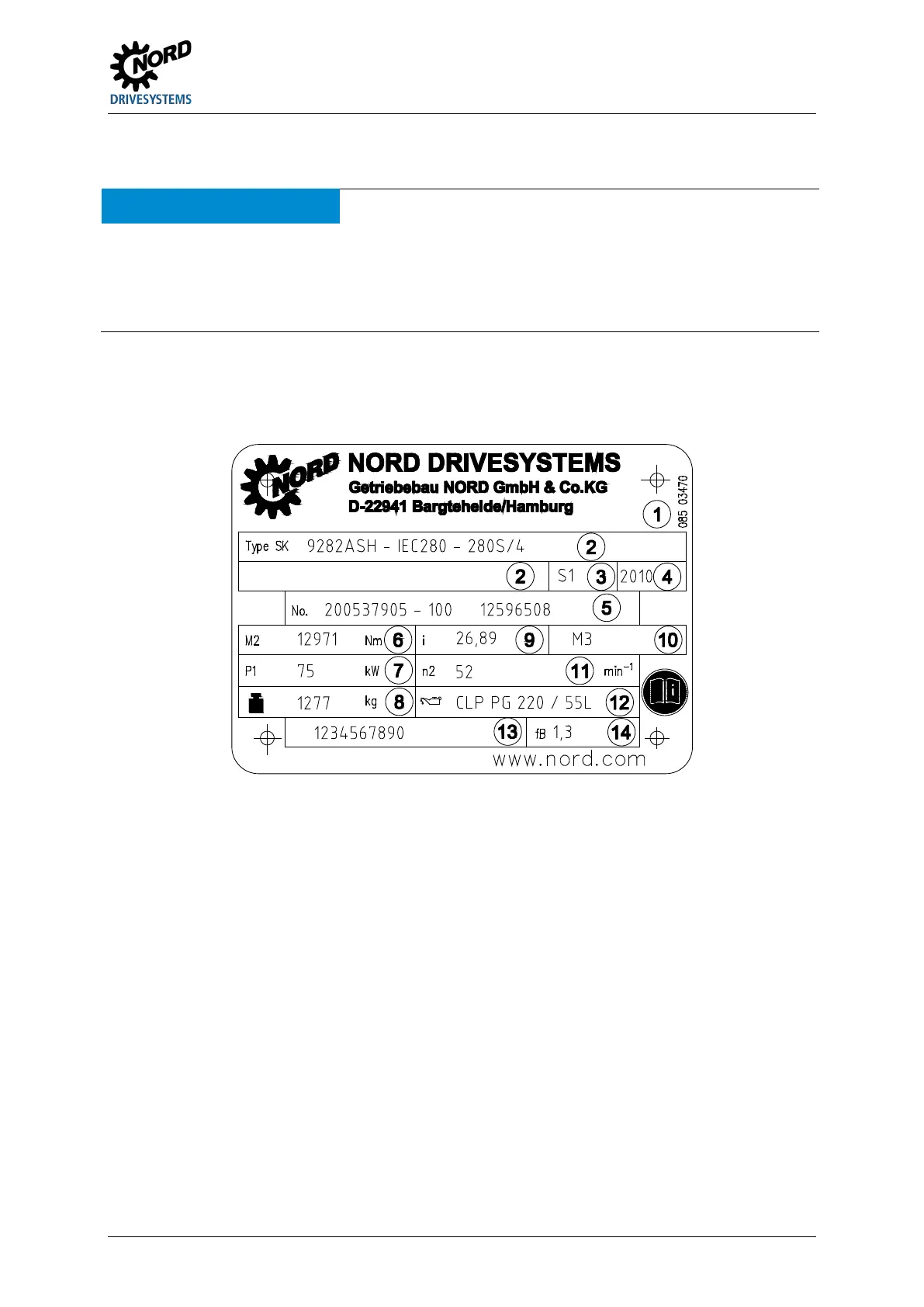

Figure 7: Name plate (example)
