3 Assembly instructions, storage, preparation, installation
B 1050 en-1819 35
Pos: 65 /Anleitungen/Getriebe/3. Montage, Lagerung, Vorbereitung, Aufstellung/Befestigungselement [B1050_B2050] @ 27\mod_1551179055505_388.docx @ 2491313 @ 3 @ 1
3.10.1 Hollow shaft with fastening element (Option: B)
Information
Fastening element
The gear unit can be fitted to solid shafts with and without a shoulder using the fastening element. The screw of
the fastening element must be tightened with the appropriate torque (7.4 "Torque values").
Assembly Description
1 Fastening element
2 Circlip
3 Threaded rod
4 Threaded nut
5 Securing screw
Securing
6 Sealing cap
7 Threaded rod
8 Disassembly element
9 Threaded nut
Dismantling

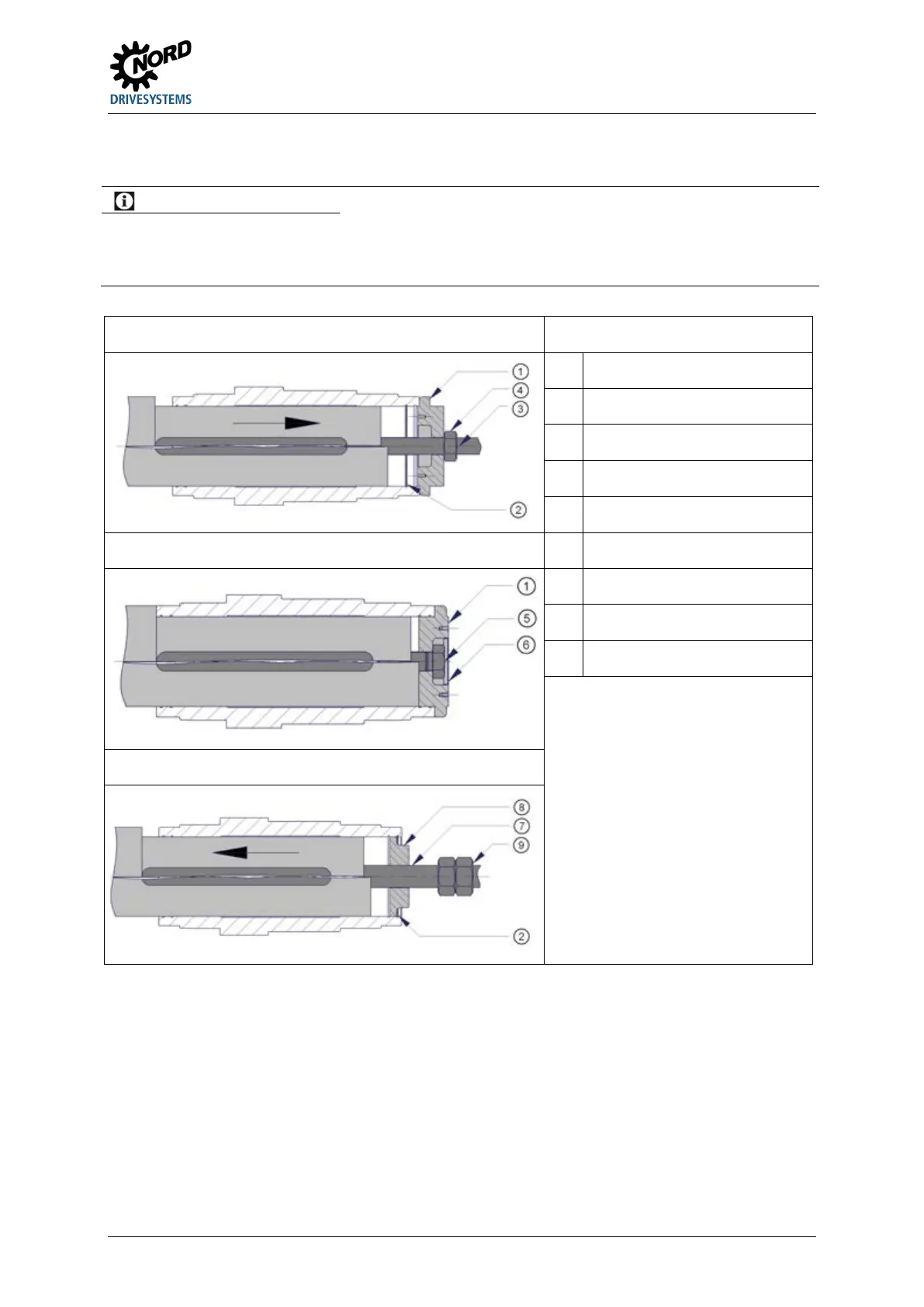

Figure 11: Assembly and disassembly of the fastening element (schematic diagram)
