3.1.5 on motor swing base or base frame
Gear units on a motor swing base or base frame may only be transported with lifting ropes and chains
or lifting straps at an angle of 90° to 70° to the horizontal. Only use the attachment points on the motor
swing base or base frame.

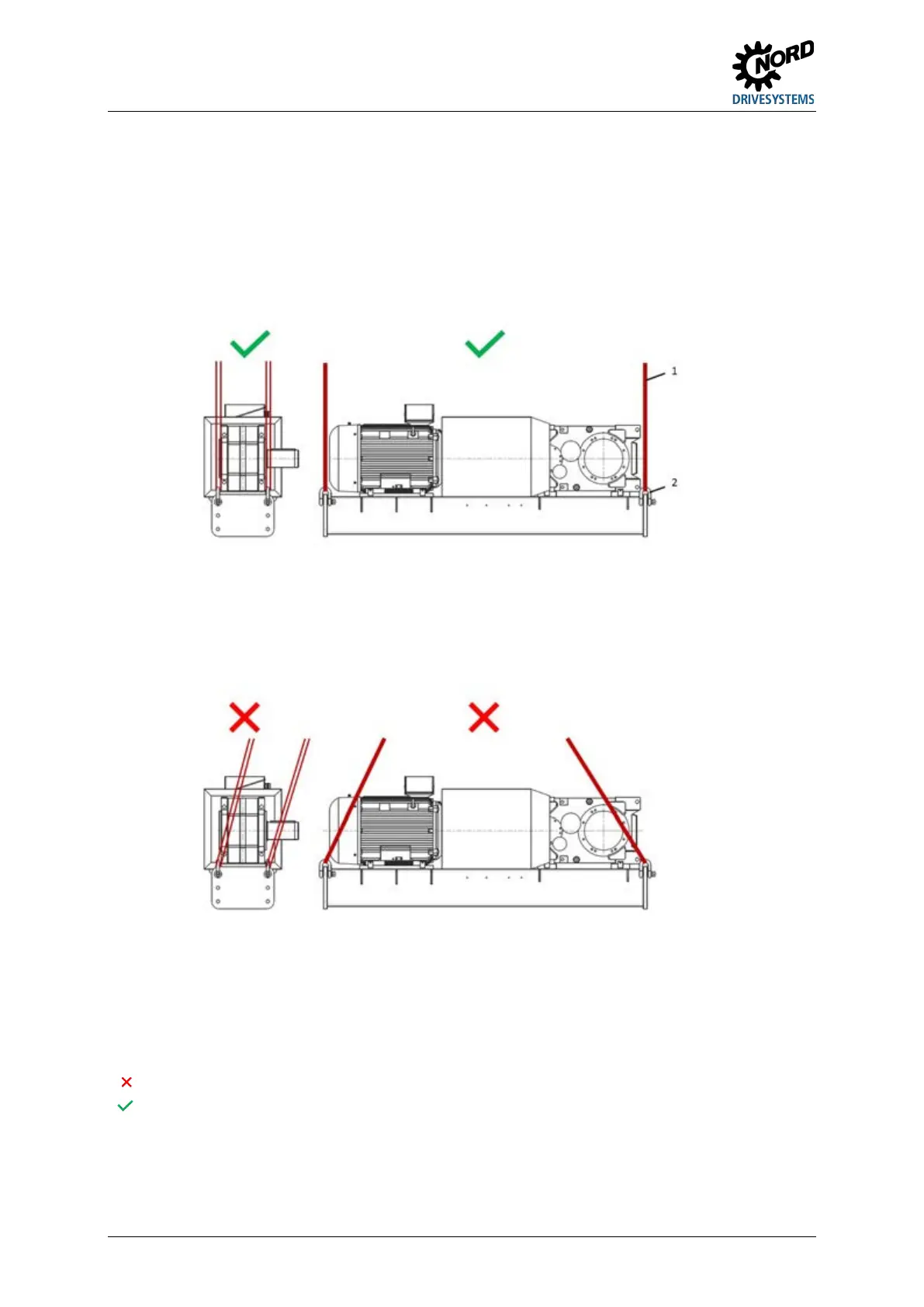

Legend
1: Lifting strap
2:
Shackle
:
Not permissible
:
Permissible
Figure 6: Transport of gear unit with motor swing base or base frame
