EV Series Automated Dispensing Systems
20
Prepare the Work Surface or Fixture Plate
Prepare the robot work surface or xture plate for secure placement of the workpiece. All Nordson EFD automated
dispensing systems include a standard xture plate. Other xture plate sizes are available. Refer to “Accessories” on
page 61.

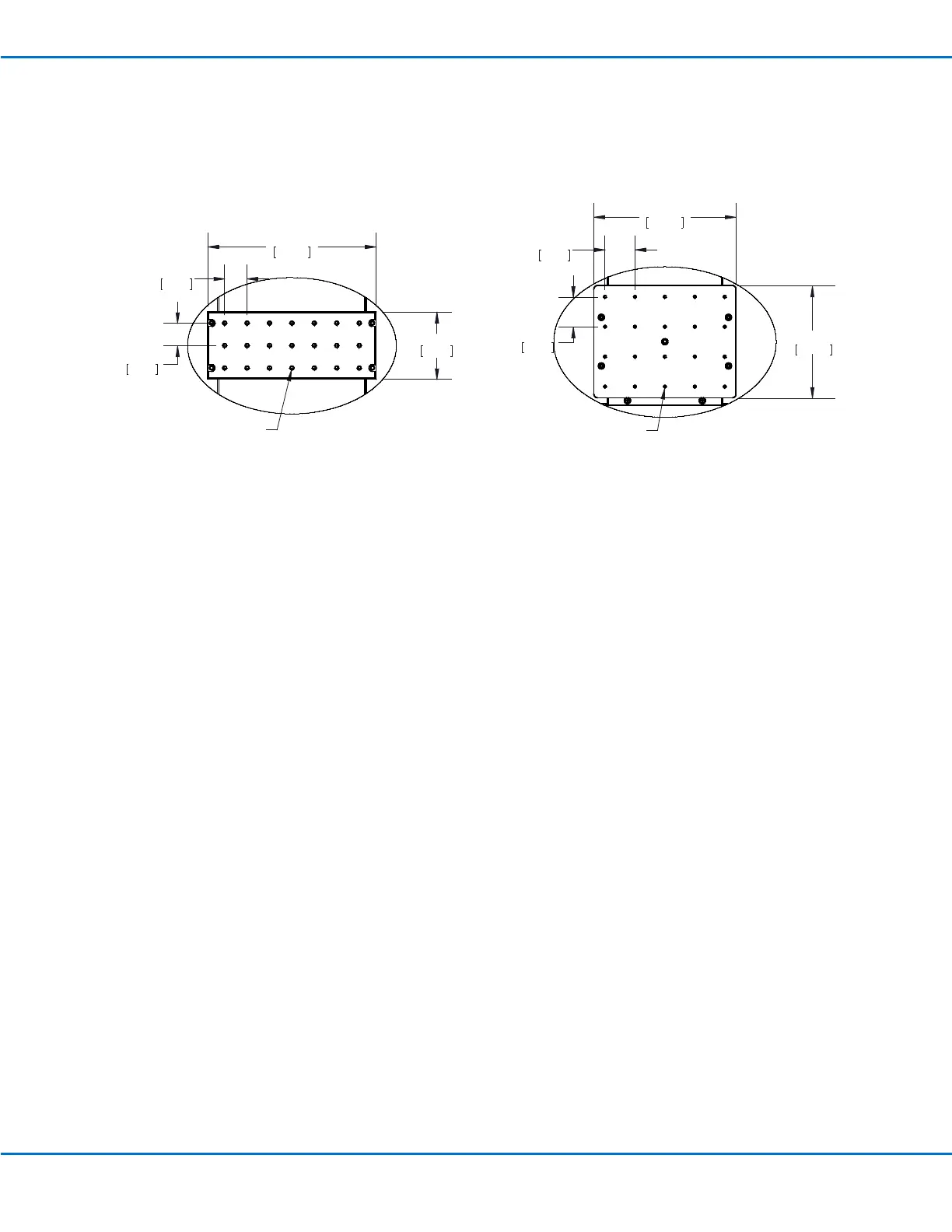

200 x 200 standard fixture plate Larger fixture plate (300 x 300, 400 x 400, or 500 x 500)
5.91
150.00
2.36
60.00
6X .79
20.00
2X .79
20.00
21X M4X0.7 - 6H THRU ALL
Connect Inputs / Outputs (Optional)
All automated dispensing systems provide 8 standard inputs and 8 standard outputs. Connect input / output wiring
to the I/O PORT connection on the back of the robot. For a wiring diagram, refer to “I/O Port” on page 65. There
are several ways to use the system inputs / outputs. Refer to “Setting Up Inputs / Outputs” on page 45 for
additional information on inputs / outputs.
7.48
190.00
5.91
150.00
4X 1.57
40.00
3X 1.57
40.00
20X M4X0.7 - 6H THRU ALL
