EV Series Automated Dispensing Systems
97
Appendix E, Height Sensor Setup and Use
The optional height sensor can detect any variation from the original Z height program values from workpiece to
workpiece. If the Z height changes, the system detects the new Z height value and adjusts the program accordingly.
PREREQUISITES
The height sensor is installed and the cable is connected to the I/O port. Refer to the instructions provided with
the height sensor.
The system is properly set up. Refer to “Setting Up and Calibrating the System (Required)” on page 37.
A test workpiece is positioned on the xture plate or work surface.

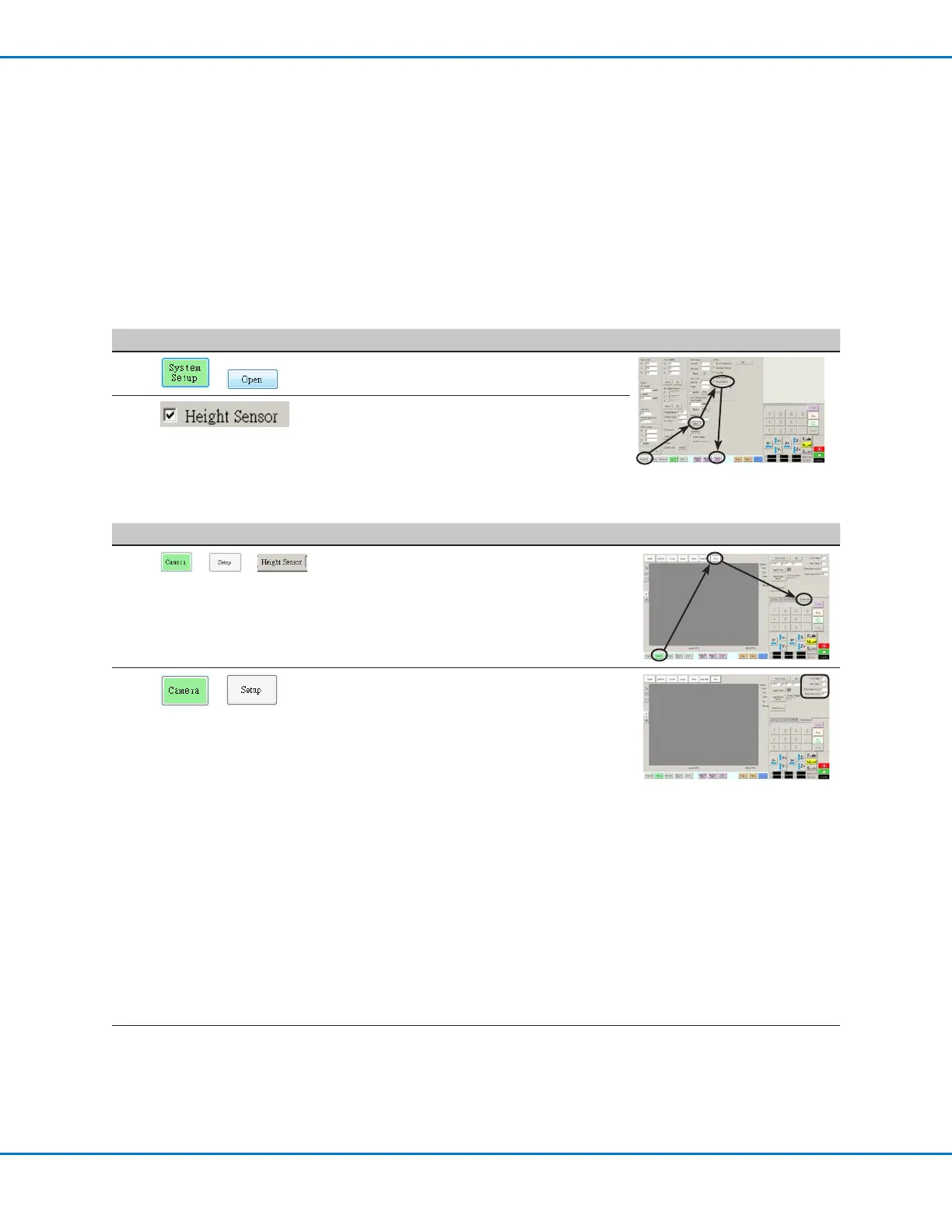

To Enable the Height Sensor
# Click Step Reference Image
1
>
• Click the SYSTEM SETUP tab, then click
OPEN.
2
• Check HEIGHT SENSOR.
When the height sensor is enabled, the
Toggle Probe button appears in the tab bar.
To Set Up the Height Sensor
# Click Step Reference Image
1
> >
• Click the CAMERA tab, click SETUP at the
top of the Camera screen, and then click the
HEIGHT SENSOR tab.
The Height Sensor elds appear.
2
>
• In the elds located at the top right corner of
the Height Sensor area, enter the following
values:
- Probe Output: As connected on your
system (default = 8)
- Sensor Input: As connected on your
system (default = 8)
- Detect Speed (mm/s): 5 (range = 1–20)
- Travel Limit (mm): 20 (range = 1–100)
NOTES:
• Detect Speed is how fast the Zaxis lowers
towards the workpiece after the height
sensor probe extends.
• Travel Limit is the range within which the
Zaxis moves to detect the Z-height value.
Continued on next page
