(Only EV Systems With a Tip Detector) Setting Up the Tip Detector

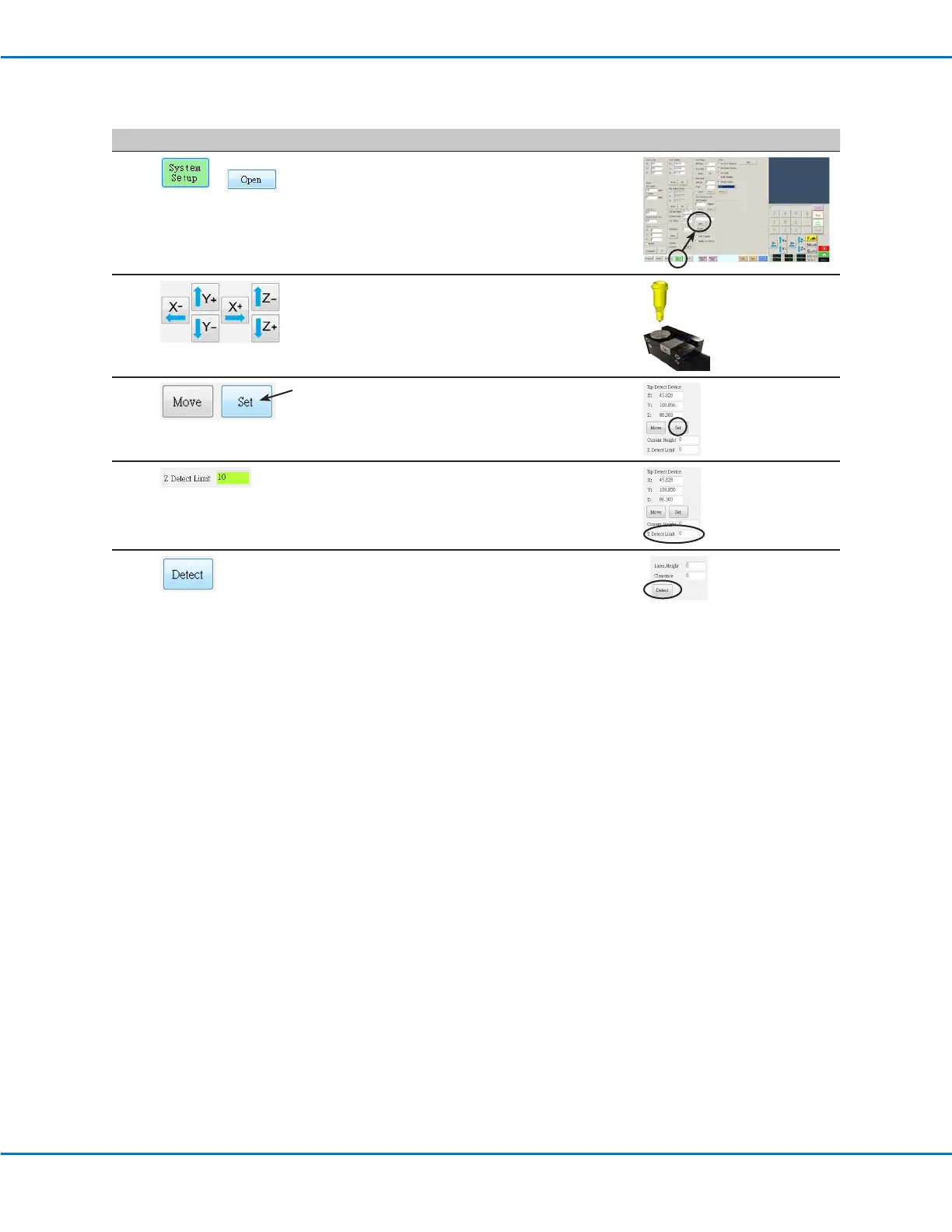

# Click Step Reference Image
1
>
• Click SYSTEM SETUP > OPEN.
2
• Jog the tip until it is positioned about 2 mm
above the sensor on the tip detector.
3
• Under Tip Detect Device, click SET (next to
Move).
• Click YES/OK when prompted for
conrmations.
4
• Under Tip Detect Device, enter a value of
10(mm) Z Detect Limit.
• Click YES/OK when prompted for
conrmations.
5
• Under Tip Detect Device, click DETECT.
• Click YES/OK when prompted for
conrmations.
The robot raises the tip to Z = 0, then lowers
the tip onto the sensor to detect the tip
offset.
