Operation
After the system is installed and programmed, the only actions required
from the operator are to switch on the system, run the program for the
workpiece, and shut down the system at the end of the work period.
Starting the System and Running a
Program

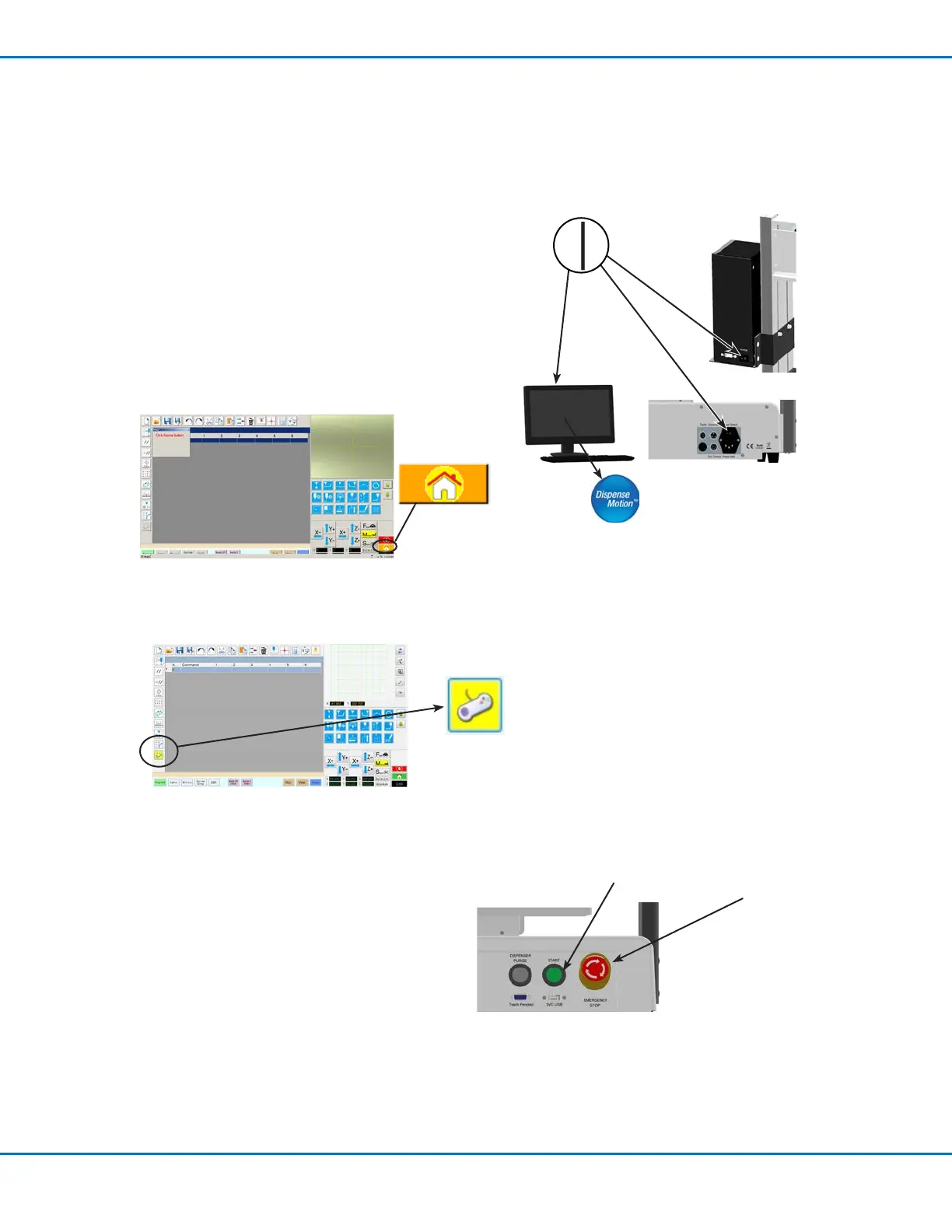

1. Switch on the DispenseMotion controller, monitor, and
robot.
2. Double-click the DispenseMotion icon to open the
dispensing software.
3. Click HOME.
The robot moves the camera to the home position (0,0,0)
and the system is ready.
4. If you connected the joystick and want to use it, click the JOYSTICK
icon to enable it. The icon turns yellow when the joystick is enabled.
For more information on using the joystick, refer to “Joystick” on page
15.
5. Enable the dispensing system, including the valve controller. Refer to
the dispensing equipment manuals as needed.
6. Open the program le for your application.
7. Place the workpiece in the correct location on the
xture plate.
8. Press the START button on the front of the robot, or
click RUN on the monitor.
9. When necessary, refer to the dispensing system
manuals to rell the dispenser.
10. If an emergency occurs, press the EMERGENCY STOP button.
EMERGENCY
STOP button
START button
