EV Series Automated Dispensing Systems
63

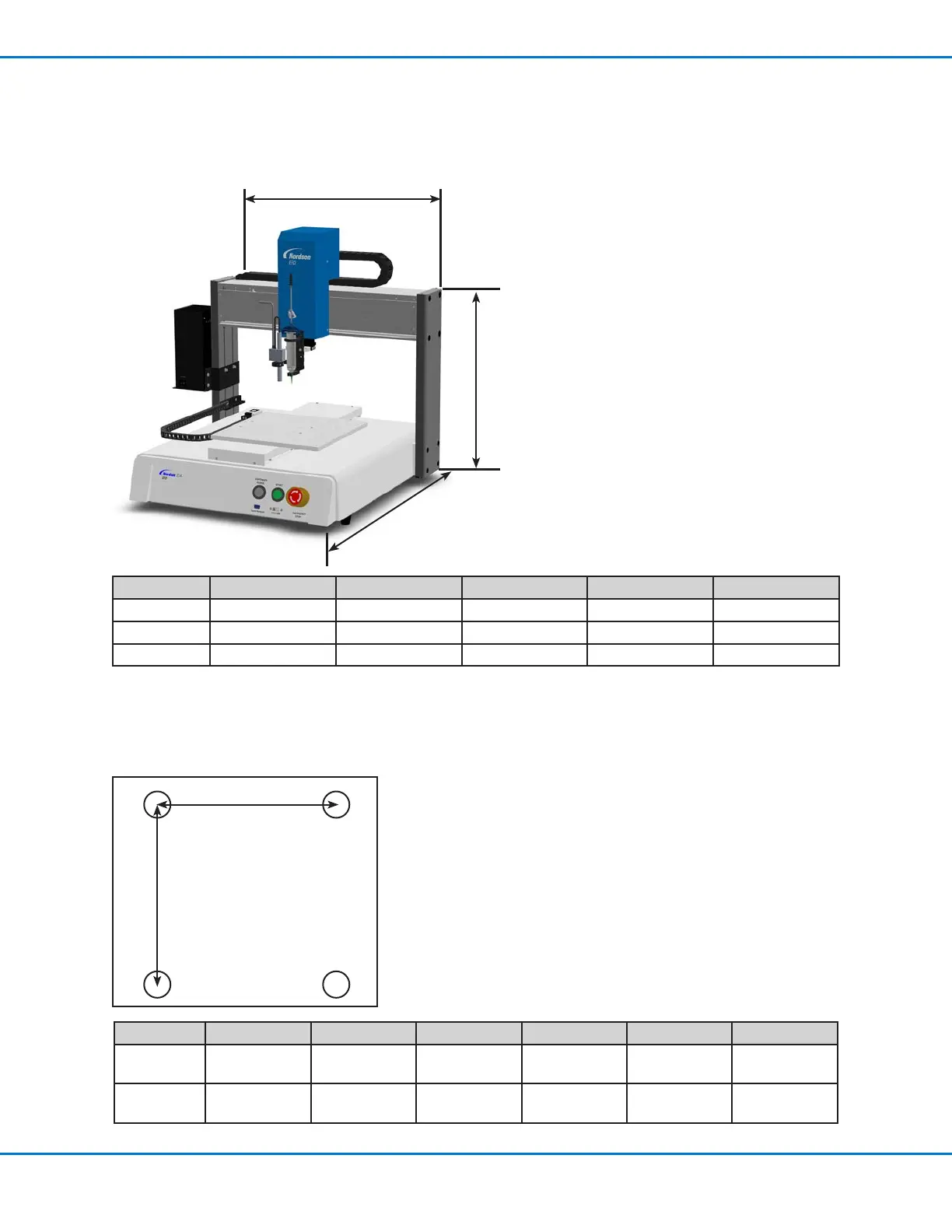

Technical Data
Dimensions
Dimension E2V E3V E4V E5V E6V
A (width) 480 mm (19") 595 mm (23") 695 mm (27") 795 mm (31") 915 mm (36")
B (height) 435 mm (17") 538 mm (21") 638 mm (25") 717 mm (28") 717 mm (28")
C (depth) 510 mm (20") 645 mm (25") 645 mm (25") 815 mm (32") 815 mm (32")
Mounting Hole Template
Use these dimensions to drill mounting holes for the robot feet.
Dimension E2 E3 / R3 E4 / R4 E5 E6 / R6 PRO4
A
302 mm
(11.88")
400 mm
(15.75")
500 mm
(19.69")
500 mm
(19.69")
500 mm
(19.69")
535 mm
(21.06")
B
300 mm
(11.81")
410 mm
(16.14")
510 mm
(20.08")
510 mm
(20.08")
510 mm
(20.08")
480 mm
(18.90")
4 x M5 tapped holes
B
A
C
B
A
