EV Series Automated Dispensing Systems
62
Height Sensor
The optional height sensor can detect any variation from the original Z height program values from workpiece to
workpiece. If the Z height changes, the system detects the new Z height value adjusts the program accordingly.
Refer to “Appendix E, Height Sensor Setup and Use” on page 97 to install and use the height sensor.

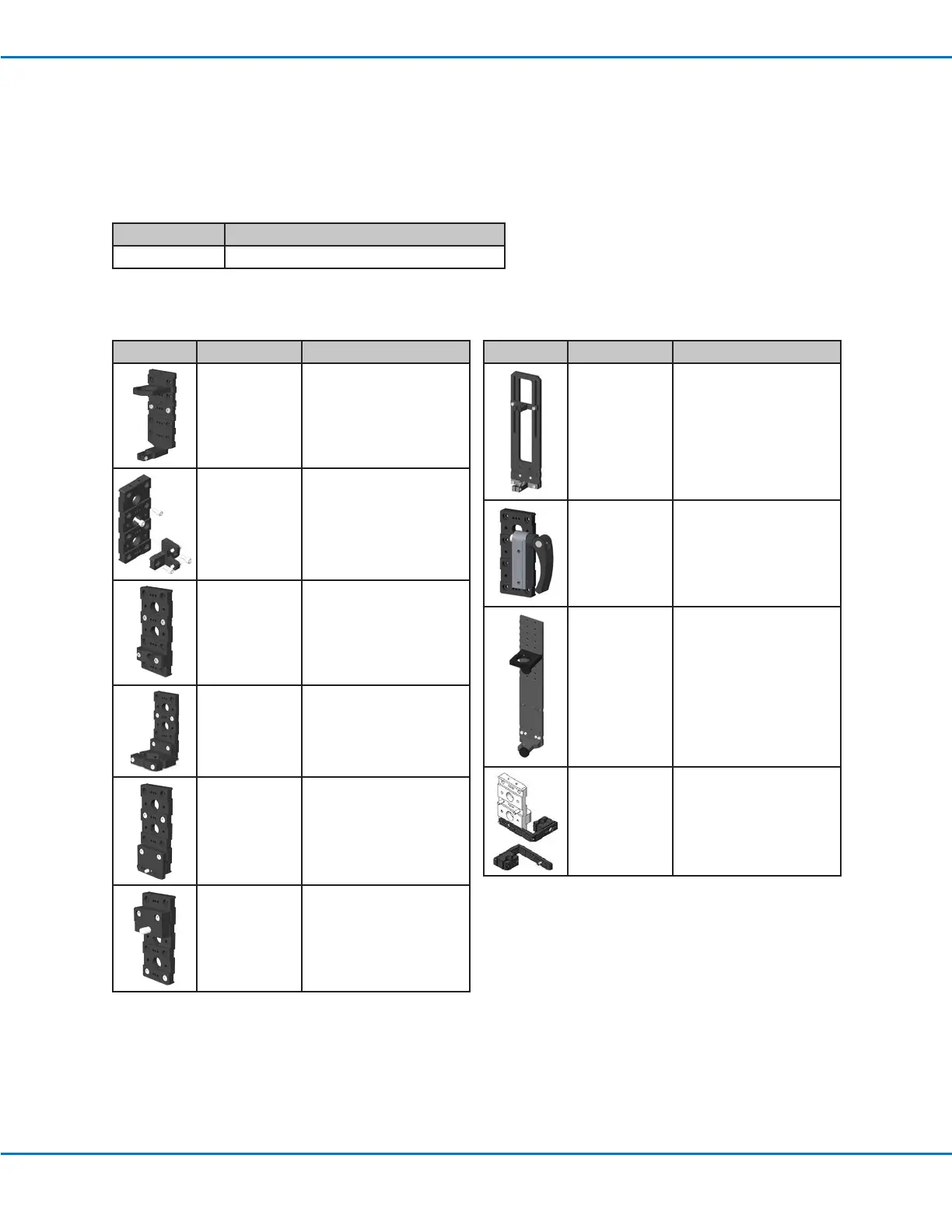

Part # Description
7361667 Height sensor accessory kit, E/ EV Series
Accessories (continued)
Item Part # Description
7360610
Syringe barrel mounting
bracket
7361815
Mounting bracket for
PICO Pµlse™ valves
7360613
Mounting bracket for all
valves with mounting
holes (752, 754, 725,
741, 736, 781, 787, and
782 Series valves)
7361758
Universal valve
mounting bracket for all
valves without mounting
holes (702, 794, and
784SS Series valves)
7361114
Mounting bracket for
xQR41 and 745 Series
valves
7361757
Mounting bracket for
radial spinner valves
Mounting Brackets
Item Part # Description
7360952
Mounting bracket for the
Ultimus IV dispenser
7362177
Mounting bracket for
Liquidyn P-Jet and
P-Dot valves
7360796 Equalizer bracket
7360609
EV Series simple vision
bracket
To Next Page
