EV Series Automated Dispensing Systems
25
Refer to
“Navigation and
Jogging Window”
on page 30
Refer to “Horizontal
and Vertical Toolbar
Icons” on page 28
Refer to “Setup and
Dispense Command
Icons” on page 29
Refer to “Secondary
View Screen” on
page 27

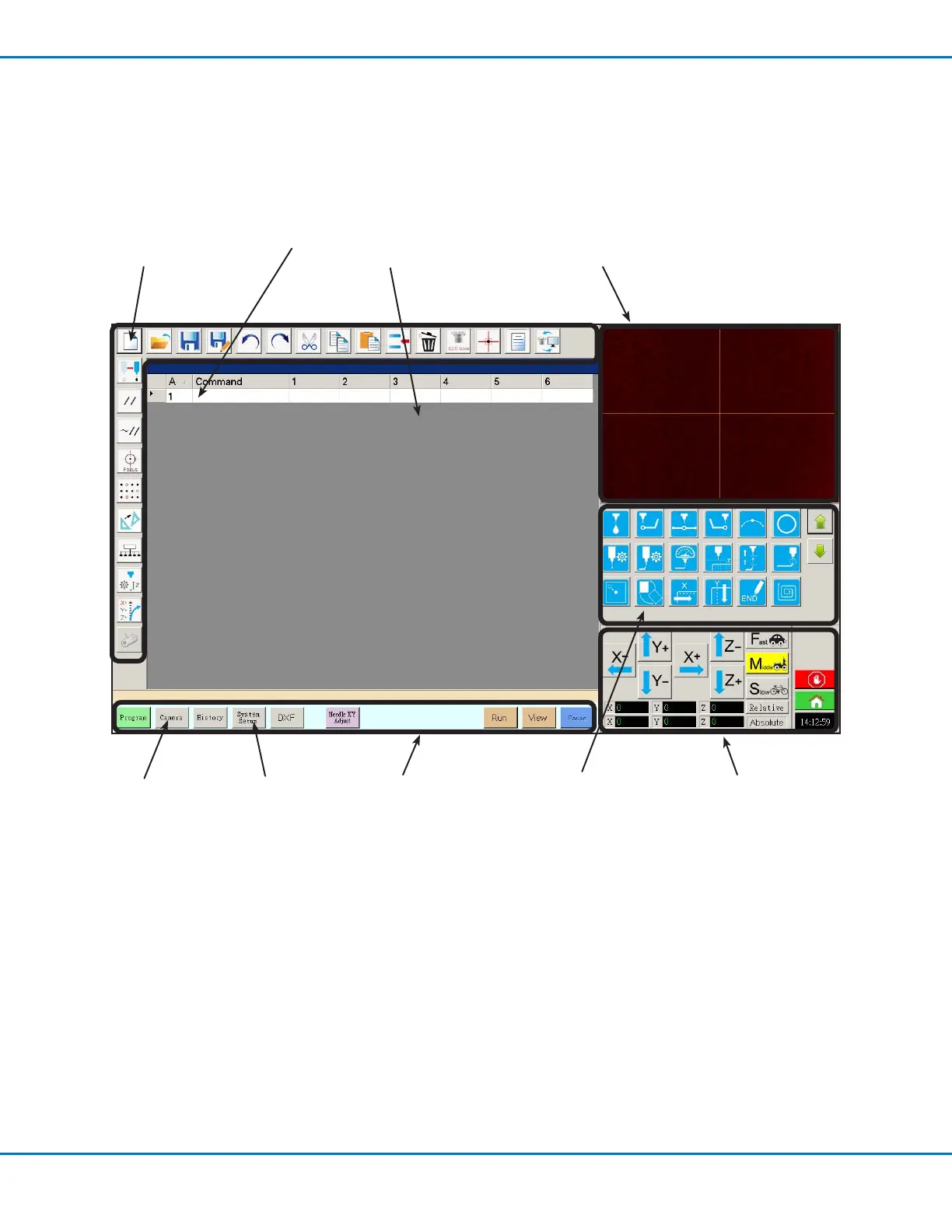

Overview of the DispenseMotion Software
This section provides an overview of the all the DispenseMotion software screens, windows, and icons. This
information is provided for your reference as needed. To set up the system and create dispensing programs, refer to
“Setup” on page 34 and “Programming” on page 48. The software opens at the Program screen.
Refer to
“System Setup
Screen” on
page 31
Refer to “Camera
Screen, Tab Bar,
and Icons” on
page 32
Refer to “Primary View
Screen and Tab Bar” on
page 26
Refer to “Primary View
Screen and Tab Bar”
on page 26
