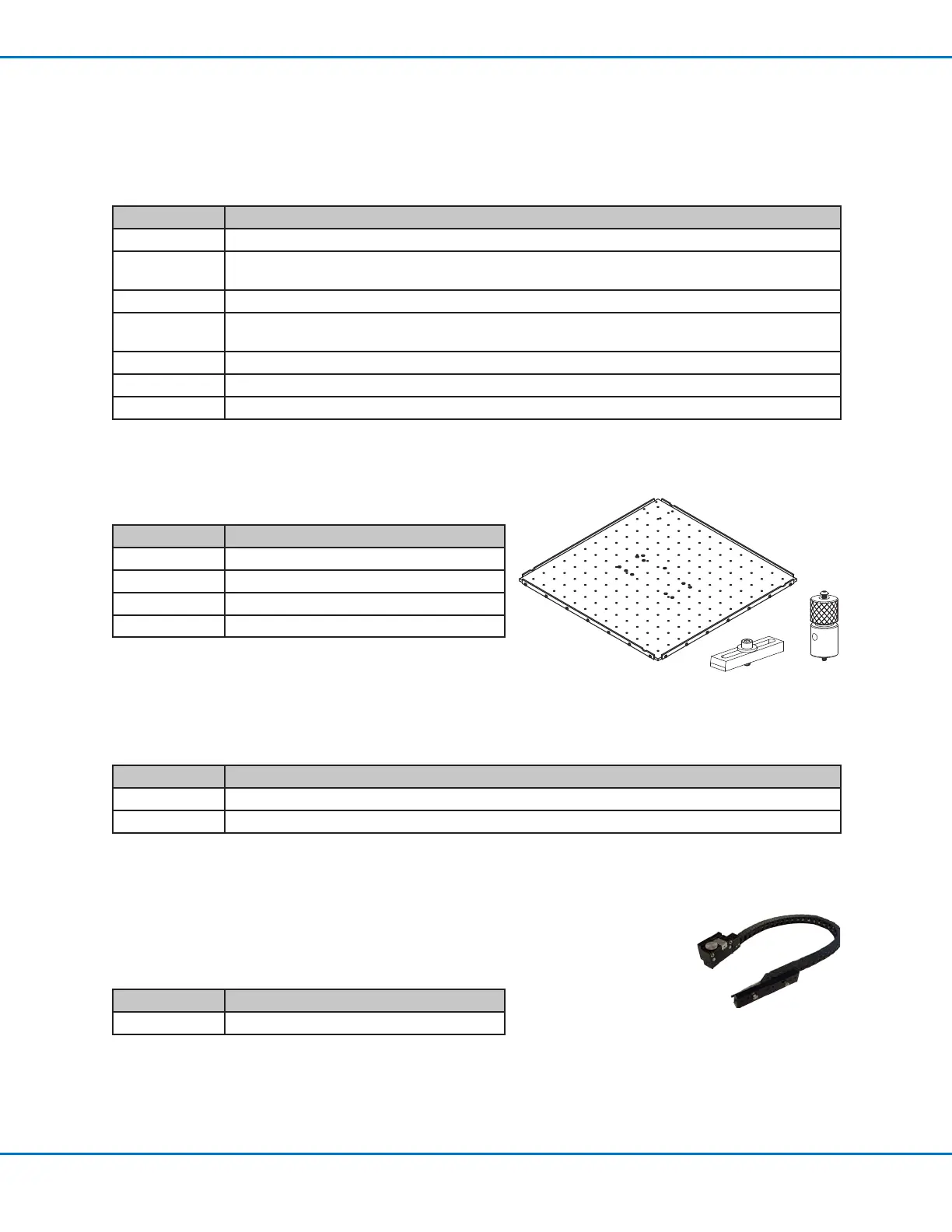

EV Series Automated Dispensing Systems
61
Accessories
NOTE: For replacement parts, refer to the robot maintenance instructions available at www.nordsonefd.com.
Pre-Configured Output Cables
Part # Description
7360551 Standard cable to connect the dispenser and the robot
7360761 Single voltage initiate cable to connect the dispenser and the robot (provides different pigtails to
connect to different dispensers / controllers)
7360554 Dual voltage initiate cable to connect up to two dispensers / controllers to the robot
7360558 Dual-connector cable to connect up to two PICO
®
DCON Drivers or two PICO Toµch
™
controllers to the robot
7362356 Dual-connector cable to connect up to two Liquidyn
®
V10 controllers to the robot
7362357 Dual-connector cable to connect up to two Liquidyn V100 controllers to the robot
7362373 Single-connector cable to connect a Liquidyn V200 controller to the robot
Fixture Plates
All plates include four edge levelers and four leveling mounts.
Part # Description
7028276 200 mm xture plate
7028277 300 mm xture plate
7028278 400 mm xture plate
7028279 500 mm xture plate
Start / Stop Box
The start / stop box accessory facilitates input / output connections for remote functions, such as an start or
emergency stop button. Refer to “Example Input / Output Connections” on page 66 for schematics.
Part # Description
7361673 Start / stop accessory box, standard
7360865 Start / stop accessory box, European Community
Tip Detector
The optional tip detector allows you to automatically update both the XY offsets and the
Z height by clicking on Needle Z Detect. The Needle Z Detect button is present only on
systems that include the tip detector. Refer to “(Only EV Systems With a Tip Detector)
Setting Up the Tip Detector” on page 38 to set up the tip detector.
Part # Description
7360893 Tip detector accessory kit, EV Series
