EV Series Automated Dispensing Systems
98

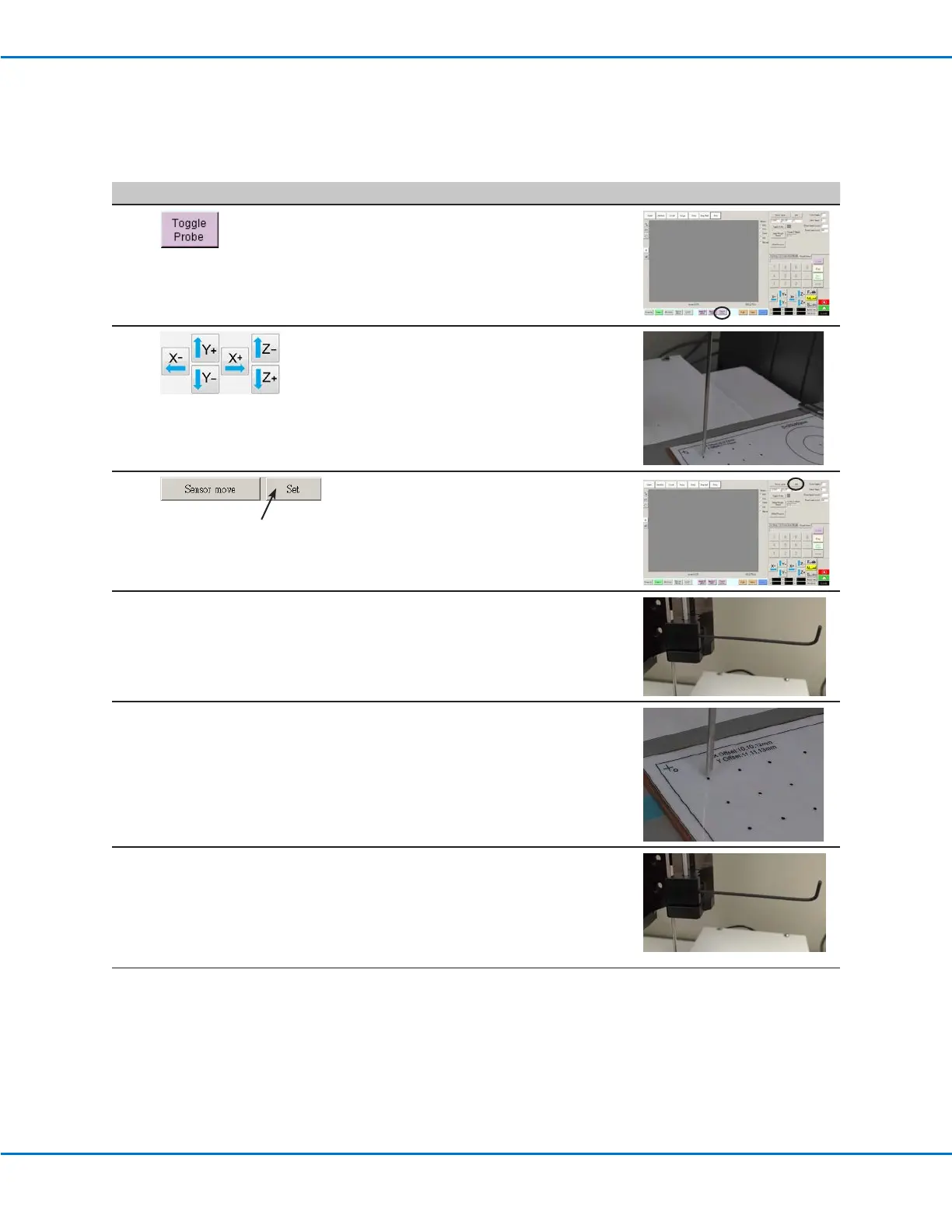

# Click Step Reference Image
3
• Click TOGGLE PROBE.
The probe extends from the height sensor.
4
• Jog the tip to a suitable location on the
workpiece (an area that is open and will be
safe for the tip to touch) to test the height
sensor.
5
• Click SET next to Sensor Move.
6
• Use a 1.5 mm hex wrench to loosen the set
screw located inside the sensor block.
7
• Carefully grasp the probe with your ngers
and pull it down until the bottom of the
probe is about 10 mm above the workpiece.
8
• Tighten the set screw inside the sensor
block.
Continued on next page
Appendix E, Height Sensor Setup and Use (continued)
To Set Up the Height Sensor (continued)
