Nordson UltimusPlus Series User Manual

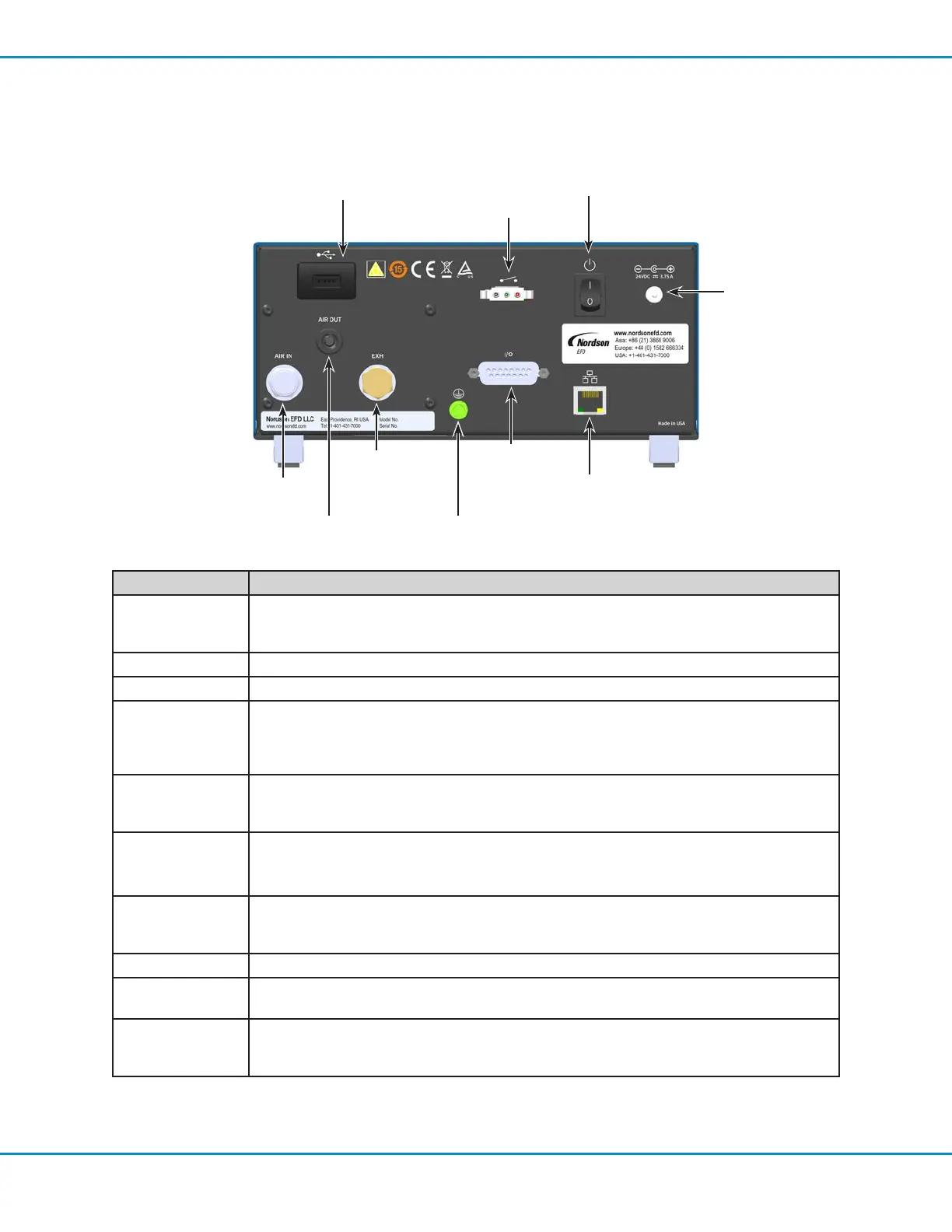

Power connection
Input / output
port
Power
switch
Foot pedal
port
Ethernet
port
Ground
connection
USB port
Air In port
(6 mm OD)
Air Out port
(6 mm OD)
Exhaust port
Operating Features (continued)
Item Description
USB port
USB port for (1) exporting or importing programs or (2) for exporting the dispense log. You
can also connect a mouse to this USB port to provide an alternative method for interacting
with the touchscreen.
Foot pedal port Connection for a foot pedal or optional finger switch to initiate the dispense cycle
Power switch Main power switch for the dispenser
Power input port
24 VDC power supply cord input connection. The UltimusPlus power pack automatically
adjusts for 100–240 VAC. Use only the supplied universal power pack. The unit is shipped
with four power plugs (one USA and three international plugs) and a 1.8 m (5.9 ft) power
cord.
Air In port
6 mm OD air input tubing connection from the factory air supply. Clean, dry, filtered factory
air is required to meet warranty. If your air supply is not filtered, order the 5-micron filter
regulator (P/N 7002002).
Air Out port
6 mm OD air output tubing connection to provide regulated air pressure to the syringe barrel
(an additional Air Out port is provided on the front of the dispenser)
NOTE: Air does not flow through the port until tubing is connected.
Exhaust (EXH) port
Pneumatic port for an optional exhaust connection. If needed, you can connect a
cleanroom filter muffler (P/N 7017049) to filter the output air to meet Fed 209-B (0.5 micron
particulates).
Ground Ground wire connection
I/O port
Input / output port to allow the dispenser to interface with external control circuits. Refer to
“Input / Output Connections” on page54 for details.
Ethernet port
Ethernet port for a standard Ethernet cable. You can use an Ethernet cable to integrate the
dispenser into an automated dispensing system. Refer to “Connecting an Ethernet Cable for
Factory Integration” on page39 for details.
UltimusPlus Series Dispensers
13www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
