Operation (continued)
Using the MultiShot Feature
The MultiShot feature allows you to dispense multiple shots with one dispense cycle initiation.
NOTE: This feature is not usually used in an automated dispensing system.

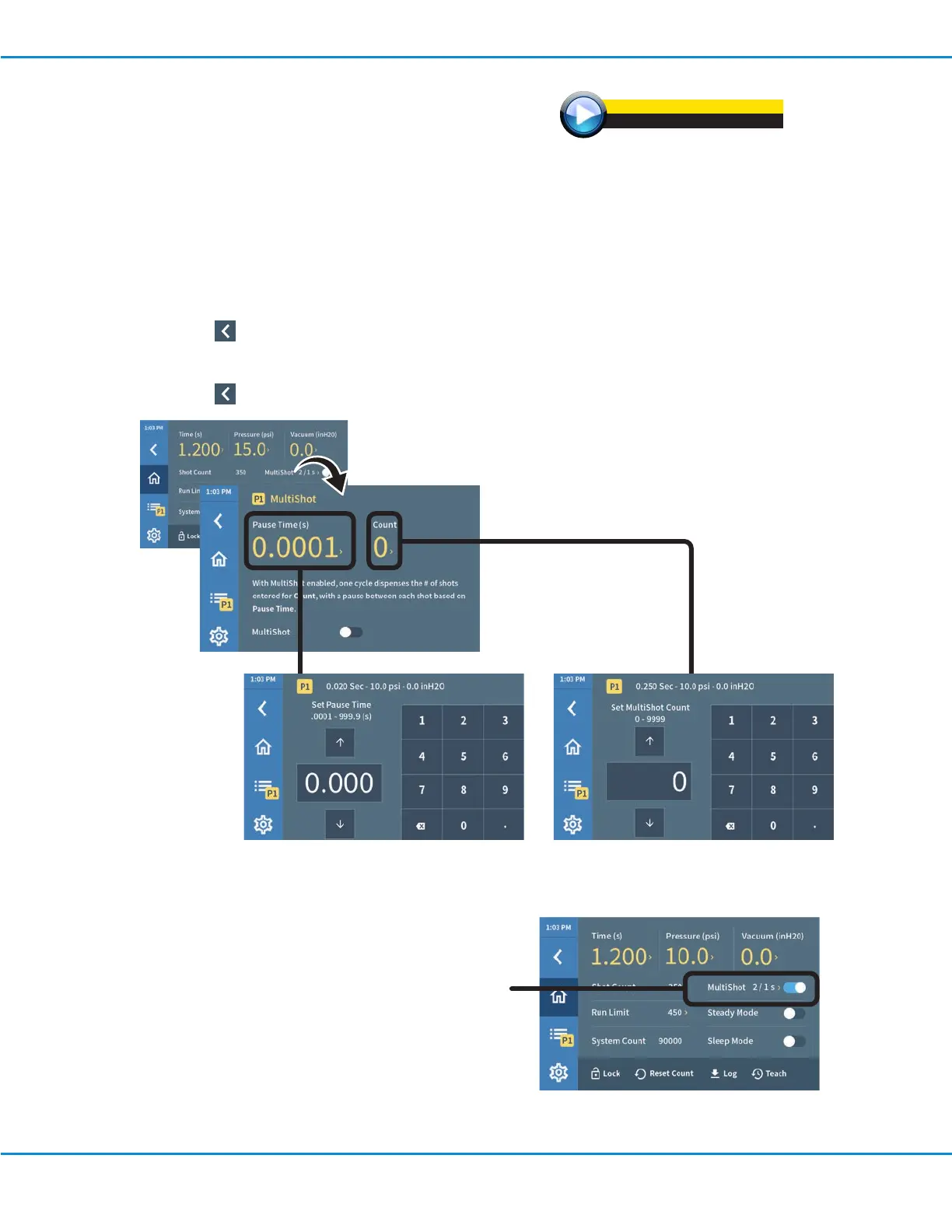

To Enter MultiShot Settings
1. On the Home screen, press MultiShot. The MultiShot screen opens.
2. Press Set MultiShot Count to enter a setting for the number of deposits to make per dispense cycle.
3. Press Back to return to the MultiShot screen.
4. Press Pause Time (s) to enter a setting for the amount of time to elapse between deposits.
5. Press Back to return to the MultiShot screen.
Pause Time (s): The time between deposits Set MultiShot Count: The number of deposits to
dispense per cycle (one press of the foot pedal)
To Use MultiShot Dispensing
1. Move any MultiShot toggle to the ON position.
NOTE: A MultiShot toggle is provided on the Home,
Program Details, and MultiShot screens. The Home
screen shows the MultiShot settings and ON / OFF status.
2. To start the MultiShot dispense cycle, press the foot
pedal one time.
3. To stop the MultiShot dispense cycle, press the foot
pedal again.
4. To disable MultiShot, move any MultiShot toggle to the
OFF position.
WATCH VIDEOS
www.nordsonefd.com/UltimusPlusSetUp
UltimusPlus Series Dispensers
