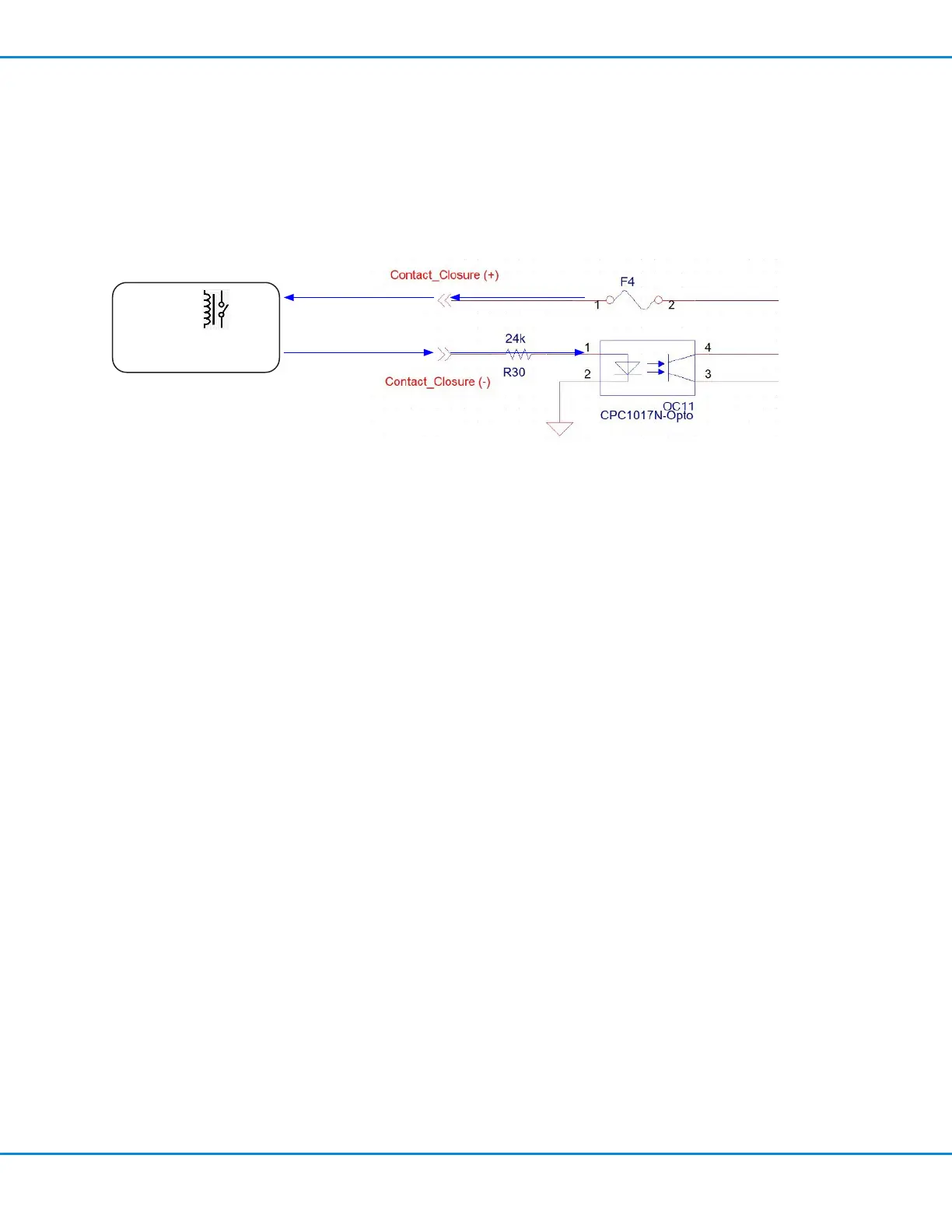

Contact Closure Circuit
A dispense cycle can be initiated with a contact closure via a 24 VDC signal across D-Sub connector pins 9 and 10.
The signal can be momentary (no less than 0.01 seconds) or maintained. A new dispense cycle will begin after the
signal is removed and then applied again.
Common *-
Input 0 *-
Input 1 *-
Input 2 *-
PC / PLC
DB Pin 10
DB Pin 9
Input / Output Connections (continued)
UltimusPlus Series Dispensers
