Operation
Once installation and initial startup and testing are complete, the system is ready for routine operation. This section
includes general, task-oriented procedures for your quick reference as needed.

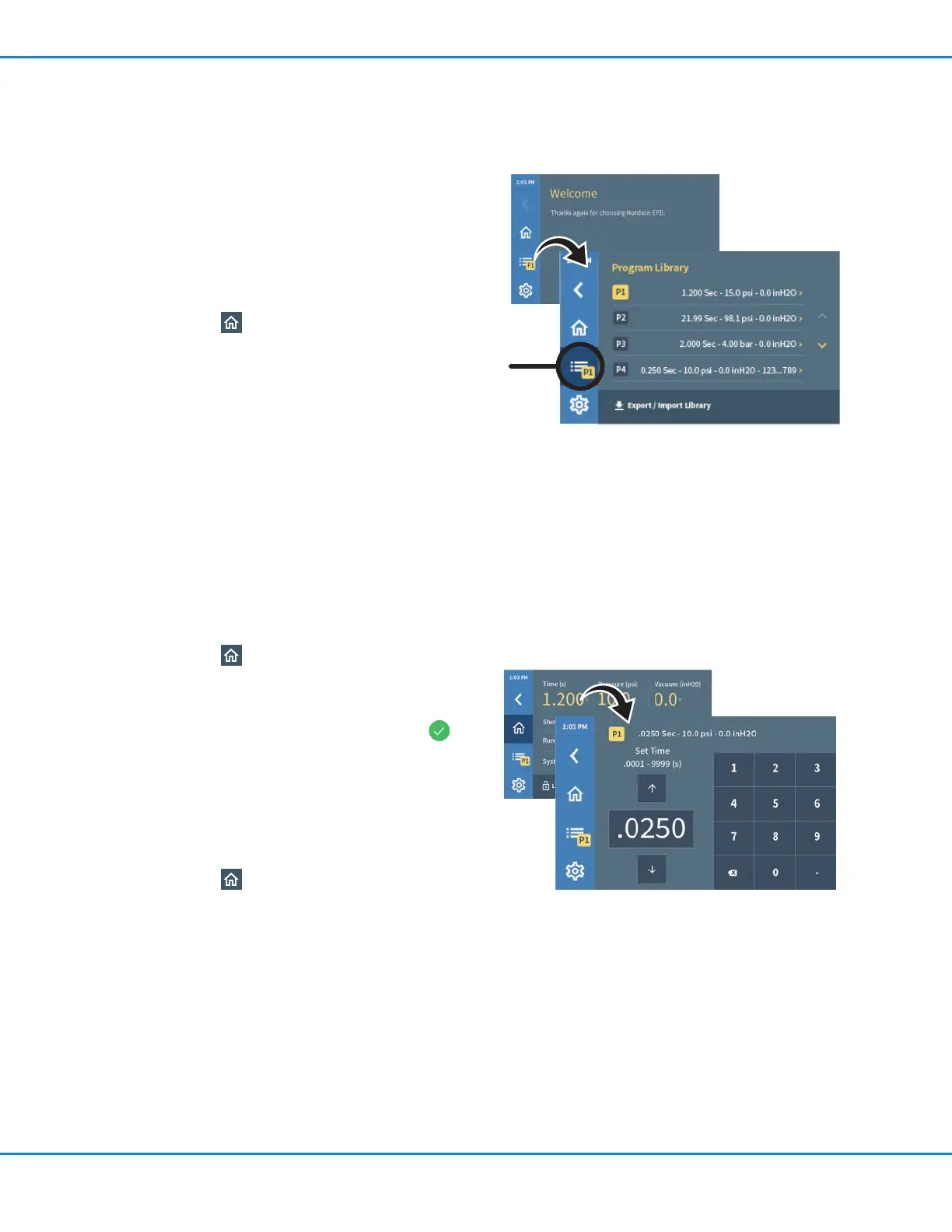

Setting the Dispense Time, Pressure,
or Vacuum
1. Press Home to open to the Home screen.
2. Press Time, Pressure, or Vacuum, then enter the
desired setting.
Saved settings are indicated by a check mark
,
which appears briefly.
NOTES:
• Changes are saved automatically as you enter them.
Refer to “Entering Values” on page17 for details.
• Refer to “Ranges for All Editable Settings” on
page18 for details on all editable settings.
3. Press Home to return to the Home screen.
Routine Startup
1. Place the power switch on the back of the dispenser in
the ON position. After about 45 seconds, the Welcome
screen appears.
2. Press Home to open the Home screen. The screen
displays the program that was active before shutdown.
NOTE: The currently active program number appears next
to the Program icon.
3. Ensure that there is an air supply to the dispenser.
4. Start your process.
Set Time screen
UltimusPlus Series Dispensers
