Nordson UltimusPlus Series - Initial Startup and Testing (continued); Manually Setting Timed Mode Operation

Manually Setting Up the Dispenser for Timed Mode Operation
1. If you have not already done so, purge the tip. Refer to “Purge the Tip” on page23 as needed.
2. Ensure that the Steady mode is disabled.

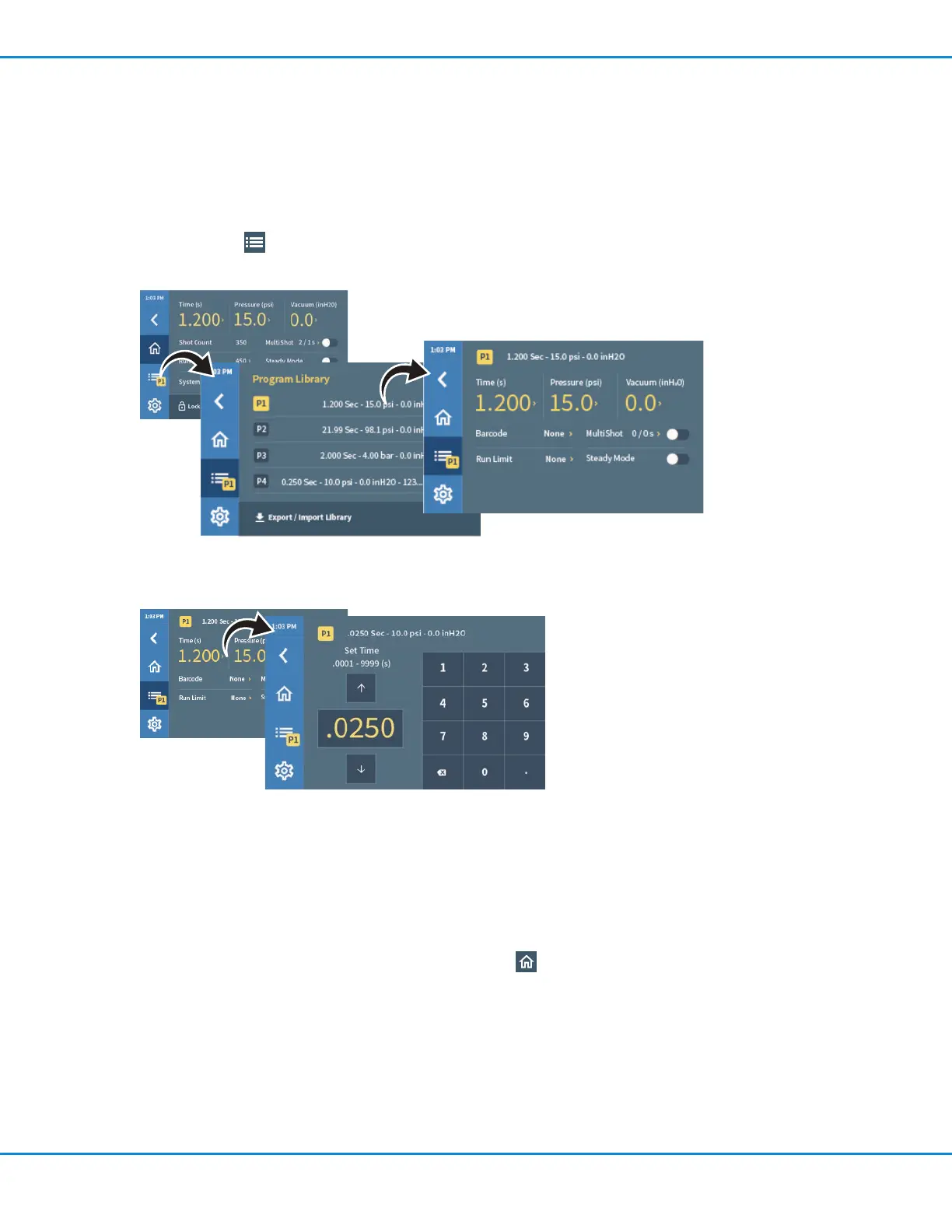

3. Press Programs to open to the Program Library screen.
4. Press a program name to open the Program Details screen.
5. Press Time. The Set Time screen opens.
6. Set the Time to 0.025 seconds.
7. Rest the dispense tip on the Dot Standards sheet.
8. Press the foot pedal (or finger switch) to start the dispense cycle.
NOTE: The pedal only needs to be pressed for a moment. The complete time will run once you activate the
dispense cycle.
9. Changing the time changes the deposit size. If your dot is too small, increase the dispense time to increase
the deposit size. If your dot is too large, decrease the dispense time to decrease the deposit size.
10. When the desired dispense volume is reached, press Home to use the current setting.
Initial Startup and Testing (continued)
UltimusPlus Series Dispensers
