Introduction
This manual provides specifications, operating features, installation, setup, operation, troubleshooting, and parts

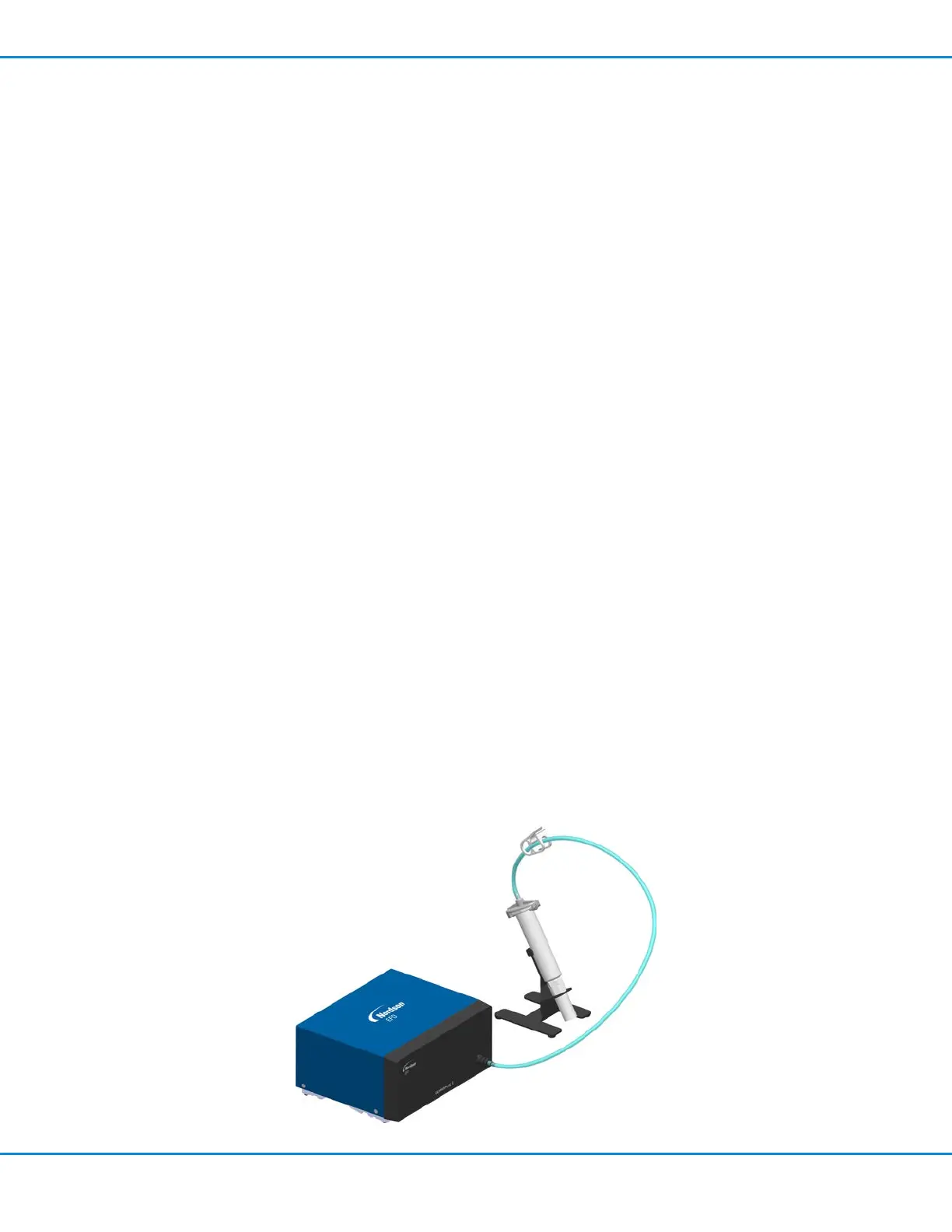

information for UltimusPlus Series pneumatic benchtop fluid dispensers. The UltimusPlus dispenser is designed
to provide precise dispensing control for advanced applications of glue, oil, grease, epoxy, silicone, sealants,
cyanoacrylates, solder paste, and other assembly fluids dispensed with syringe barrels.
UltimusPlus Dispenser Models
• The UltimusPlus I features 0.7–7.0 bar (10–100 psi) constant-bleed air pressure regulation and provides greater
control when dispensing any type of fluid.
• The UltimusPlus II features 0–1.0 bar (0.3–15 psi) constant-bleed air pressure regulation and provides greater
control when dispensing low-viscosity or thin fluids.
Overview of Features
• Intuitive, easy-to-use touchscreen interface that provides simultaneous readout of dispense time, pressure,
vacuum, and deposit count
• Storage of 16 dispensing programs in a Program Library
• USB connectivity for exporting or importing dispense programs and for exporting log data
• Ethernet connectivity for triggering the dispenser and switching between active programs
• Time increment adjustments as small as 0.0001 seconds
• MultiShot
™
capability, allowing the operator to dispense multiple deposits with only one cycle initiate (such as
one press of the foot pedal)
• Dispense log data collection, including the collection of dispensing parameter data (dispense time, pressure,
vacuum) and the date, day, and hour / time of each dispense cycle
• Full operator lockout of time, pressure, and vacuum settings
• Optional barcode scanner accessory available for quick program recognition and change
• Easy integration into an automated dispensing system via a single plug-and-play cable
• Input / output connectivity for initiating a dispense cycle (via voltage initiate or contact closure), program
selection, emergency stop, clearing alarms, an alarm out signal, and end-of-cycle feedback.
• On UltimusPlus I dispensers, sleep mode for reduced power and air consumption during downtimes
• Quicksilver
™
adapter assembly allows maximum air flow to the syringe barrel for faster cycle speeds and pulsing
UltimusPlus Series Dispensers
