Overview of the UltimusPlus User Interface
(continued)
You can adjust any program by editing its settings, accomplished by pressing the name of the program in the
Program Library. The dispenser automatically renames an edited program based on the new settings, as shown
under “How the System Names Programs” below.
• For details on how to activate (or switch) programs, refer to “Activating a Program” on page30.
• For details on how to edit a program, refer to “Editing a Program” on page31.

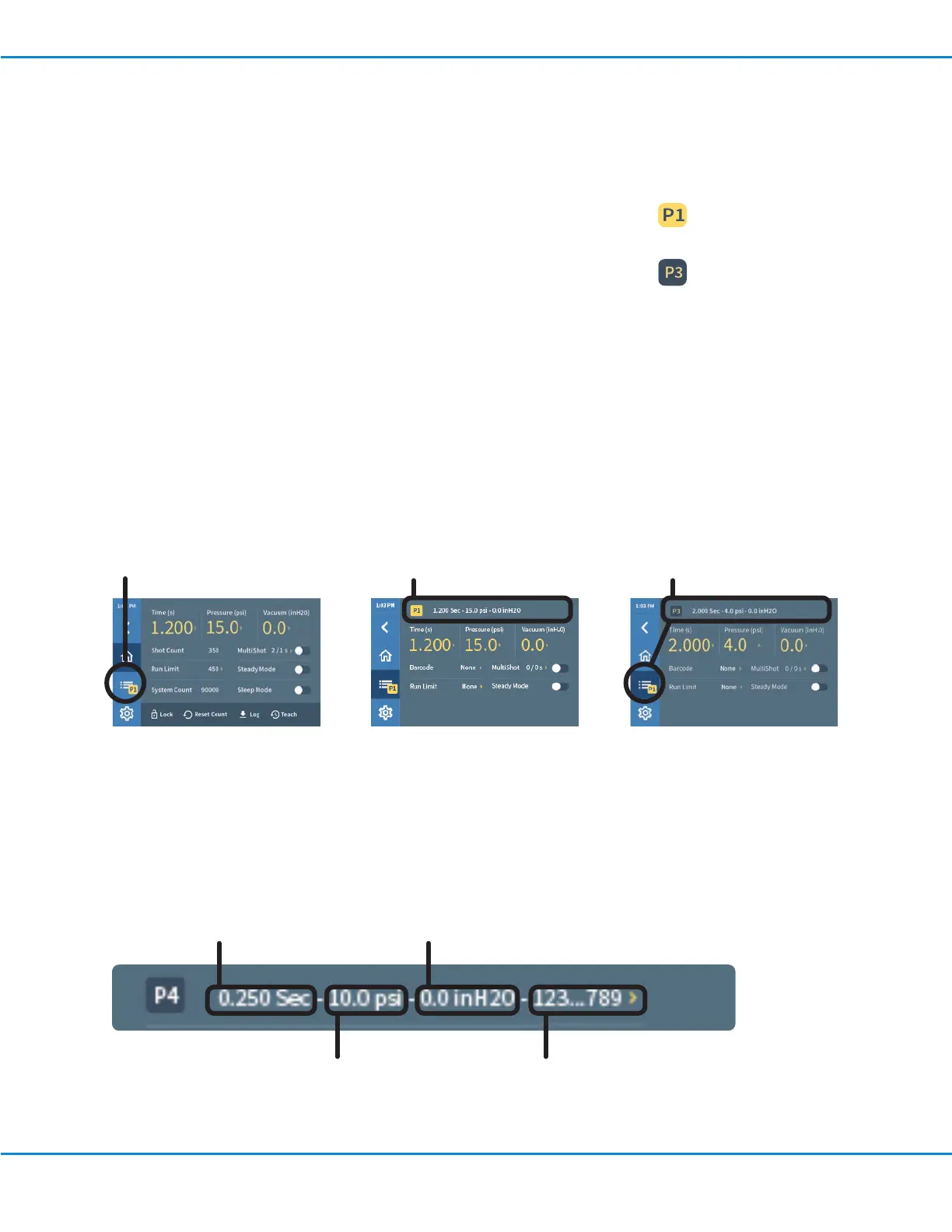

How the System Names Programs
Barcode (present only if a
program is associated with a
barcode)
Dispense
Time setting
Pressure
setting
Vacuum
setting
Currently active
program number on
all screens
Home screen
Currently active program number
and program name on the
Program Details screen when the
currently active program is being
edited or viewed
Program Details screen (currently
active program being edited)
Program number and program
name on the Program Details screen
when the program being edited is
different from the currently active
program (press the gray P3 box to
make P3 the active program)
Program Details screen (program
being edited different from currently
active program)
About Programs
The dispenser includes 16 preprogrammed dispense programs in the Program Library.
On all screens, the active program number (P1 to P16) is displayed in a yellow box.
You can change the currently active program by pressing the program number in the
Program Library or by pressing the dark gray (inactive) program box on any screen.
UltimusPlus Series Dispensers
