Nordson UltimusPlus Series User Manual

Unpack the Unit / Warranty

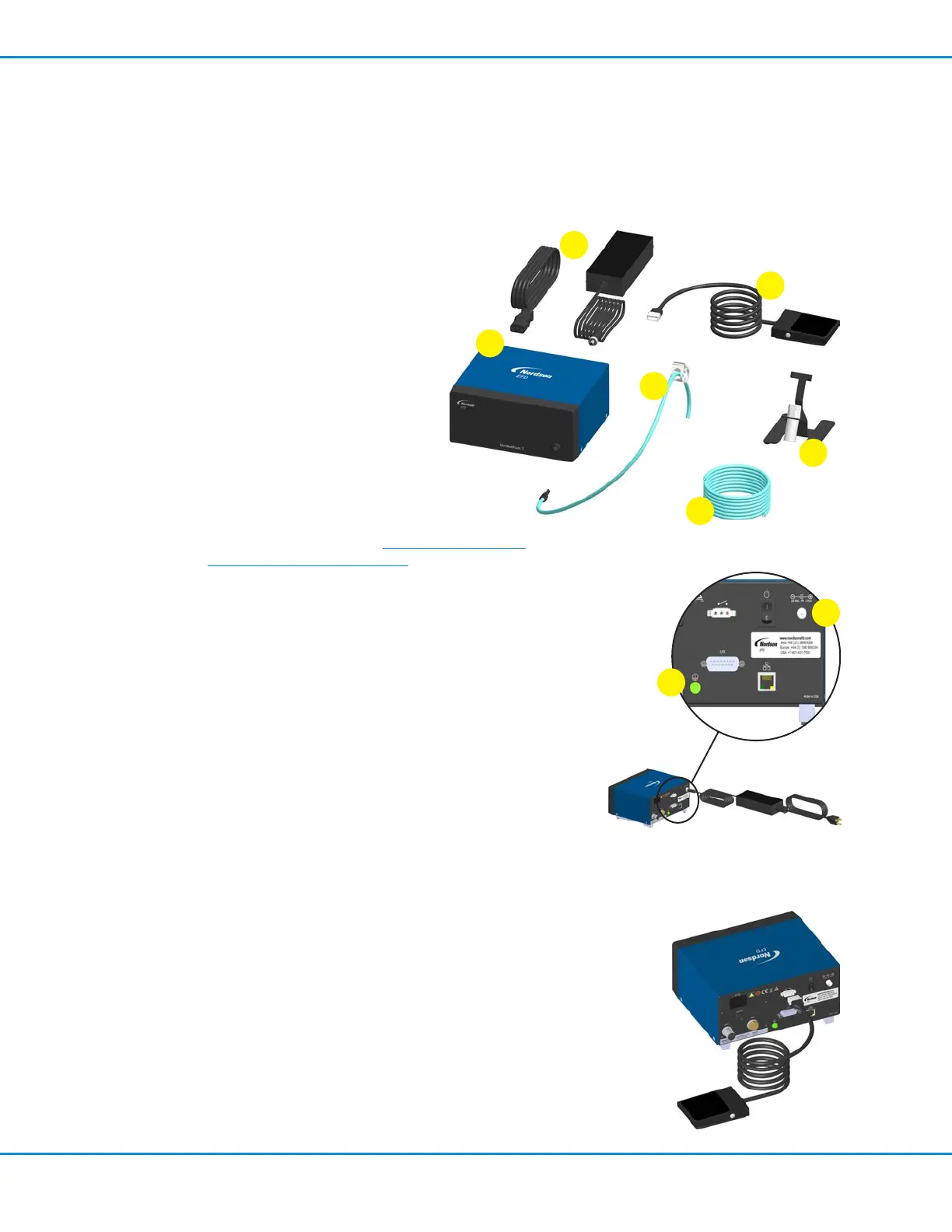

Unpack the contents of the package and lay them out on a
clean work bench. The following items are included with your
UltimusPlus dispensing system:
a. Dispenser
b. Syringe barrel adapter with safety
clip
c. Syringe barrel stand
d. 2.4 m (8 ft) of 6 mm air supply
tubing and 1/4NPT fitting (not
shown)
e. Foot pedal assembly
f. Power supply and power cord
(Not shown)
• Dot standards sheet
1
Now is a good time to activate your
EFD UltimusPlus dispensing system
warranty. Register online at www.nordsonefd.com/
warranty/dispensers/five-limited.
Installation
2
Connect Power
a. Connect the power plug to the power pack. The unit
is shipped with a USA-compatible plug and three
international plugs. Attach the correct plug to match
local power outlets.
b. Connect the power cord to the back of the UltimusPlus.
c. Connect the power cord to your local power source.
d. Connect a suitable ground wire to the ground
connection.
3
Connect the Foot Pedal
• Plug the foot pedal into the back of the UltimusPlus.
NOTE: The UltimusPlus is normally operated using the supplied
foot pedal. You can also operate the UltimusPlus with an
optional finger switch, or, you can initiate dispense cycles
through the initiate terminals available on the I/Oport. Refer to
the following to connect dispense cycle initiate signals as an
alternative to a foot pedal or finger switch:
- “Voltage Initiate Circuit” on page54
- “Contact Closure Circuit” on page57
• (Optional) Connect other inputs / outputs as applicable for your
operation. Refer to “Input / Output Connections” on page54
for details and wiring diagrams.
a
b
c
e
d
f
2b
2d
UltimusPlus Series Dispensers
19www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
