Nordson UltimusPlus Series - Input; Output Connections (continued); Alarm Out Circuit; End-of-Cycle Feedback Circuit

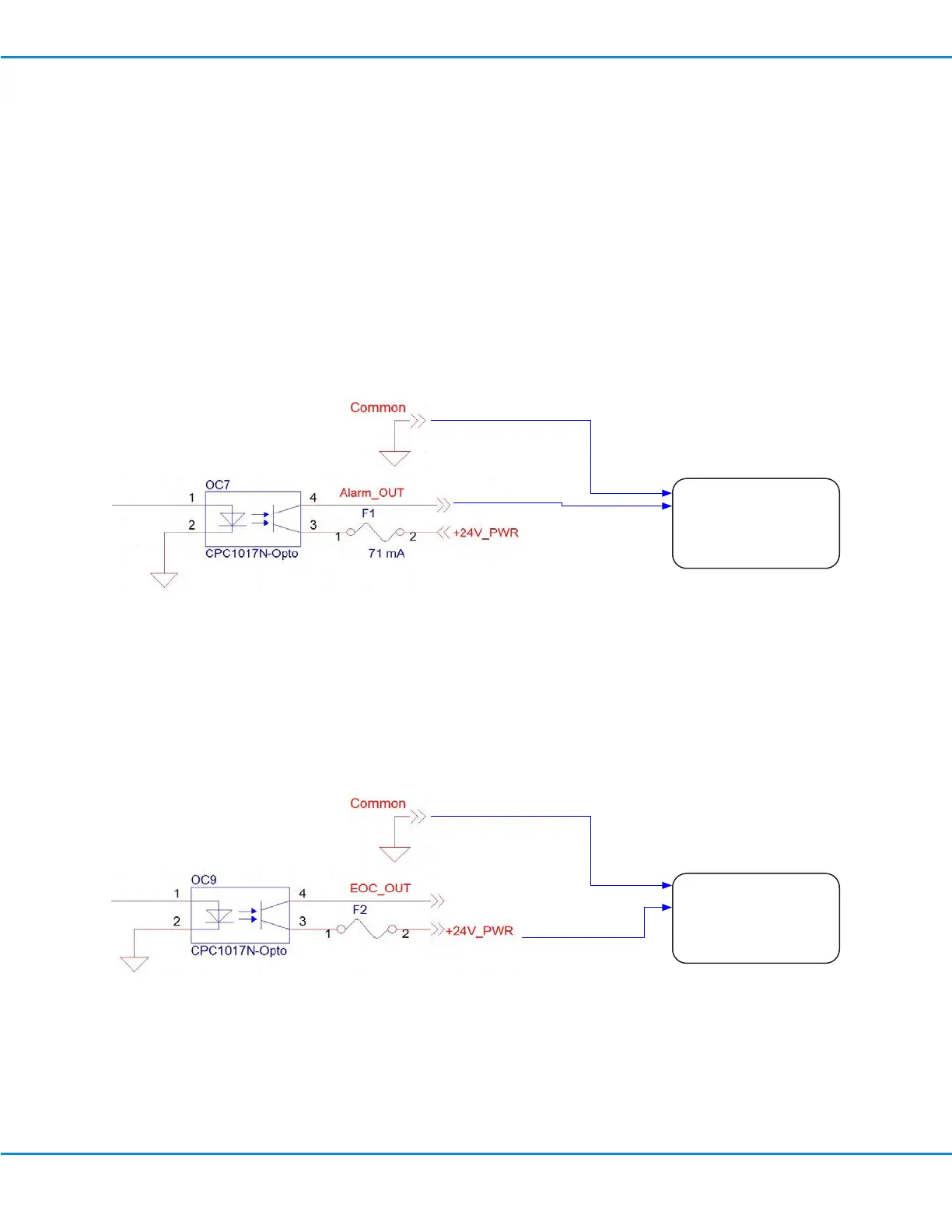

End-of-Cycle Feedback Circuit
The UltimusPlus dispenser can send an End-of-Cycle (EOC) feedback signal to an external source. The 24 VDC
EOC output signal is active low during dispensing across D-Sub connector pins 8 and 14 (DC common). The EOC
feedback can be used by external equipment to acknowledge an active dispense cycle.
-* Common
-* Input 0
-* Input 1
-* Input 2
PC / PLC
DB Pin 14
DB Pin 8
Alarm Out Circuit
The UltimusPlus dispenser can alert external devices if it enters an alarm state; this is accomplished by creating a
logic high 24 VDC signal between D-Sub connector pins 7 and 14 (DC Common). The signal remains high as long as
the dispenser is in an alarm state, preventing dispensing.
When a dispenser alarm occurs:
• The dispenser prevents any dispense cycles from occurring
• An red warning box appears on the touchscreen
The dispenser will stay in the alarm state until either of the following occurs:
• The alarm is cleared by touching (or clicking) anywhere on the touchscreen.
• The Clear Alarm I/O is toggled (refer to “Clear Alarm Circuit” on page55).
-* Common
-* Input 0
-* Input 1
-* Input 2
PC / PLC
DB Pin 14
DB Pin 7
Input / Output Connections (continued)
UltimusPlus Series Dispensers
56 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
