Initial Startup and Testing (continued)
Using the Teach Mode to Set Up the Dispenser for Timed Operation
1. If you have not already done so, purge the tip. Refer to “Purge the Tip” on page23 as needed.
2. Ensure that the Steady mode is disabled.

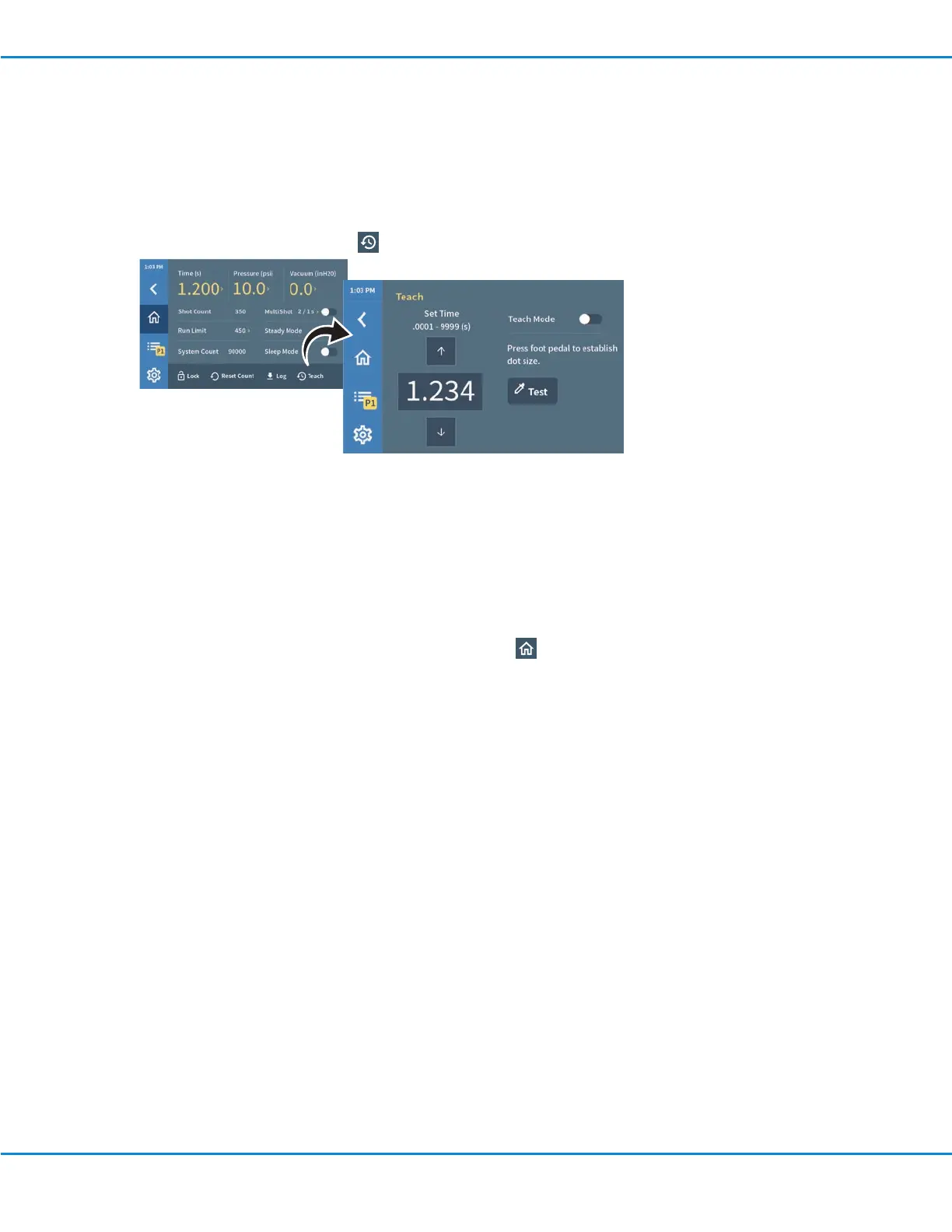

3. On the Home screen, press Teach . The Teach screen opens.
4. Rest the dispense tip on the Dot Standards sheet.
5. Press and then release the foot pedal to establish your dot size.
NOTES:
• Depressing the foot pedal repeatedly has a cumulative effect on the dot size and dispense time.
• Press Test to repeat the dot at the dispense time setting displayed on the screen.
• To fine-tune the dispense time, press the up and down arrows to adjust the time. Press Test to see the
resulting deposit size.
6. When the desired dispense volume is reached, press Home to use the displayed time setting.
UltimusPlus Series Dispensers
