Nordson UltimusPlus Series User Manual

Deposit size is controlled by dispense time, pressure, and tip size.
Use the procedures in this section, along with the supplied Dot Standards test sheet, to set up and test the system
using the operational mode best suited for your application:
• For applications in which the deposit amount, or volume, will vary, refer to “Setting Up the Dispenser for Steady
Mode Operation” on page25.
• For applications in which the deposit size must be the same for each dispense cycle, refer to “Setting Up the
Dispenser for Timed Mode Operation” on page25.
NOTES:
• Refer to the decision tree below for a visual aid.
• More tips and helpful suggestions for setup are provided under “Helpful Hints” on page28. Refer to this
information as needed during initial startup and testing.

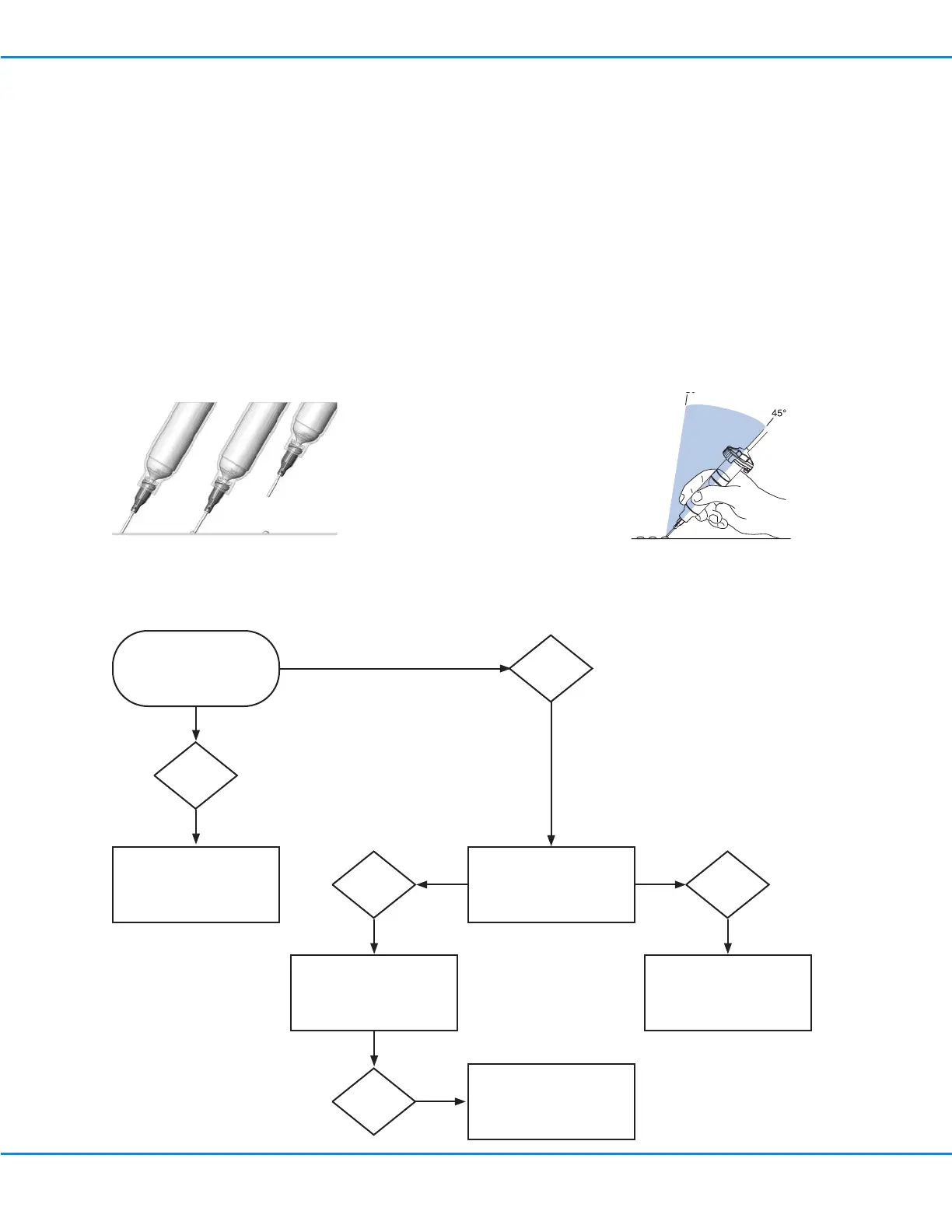

Initial Startup and Testing
Correct angle for consistent deposits.
Remember - always bring the tip in contact
with the work surface at the illustrated angle.
After the tip is in position, press the foot
pedal. Release the pedal and remove the tip
by lifting straight up.
Decision Tree for Setting Up Dispenser Operation
Refer to “Setting Up the
Dispenser for Steady
Mode Operation” on
page25.
Yes
Will the deposit amount
vary between shots?
No
Do you want to enter the
dispense time setting
manually?
(Recommended)
Do you want to teach
the system the correct
dispense time setting?
Yes
Refer to “Manually Setting
Up the Dispenser for
Timed Mode Operation”
on page27.
No
Yes
Refer to “Using the
Teach Mode to Set Up
the Dispenser for Timed
Operation” on page26.
UltimusPlus Series Dispensers
24 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
