Installation (continued)

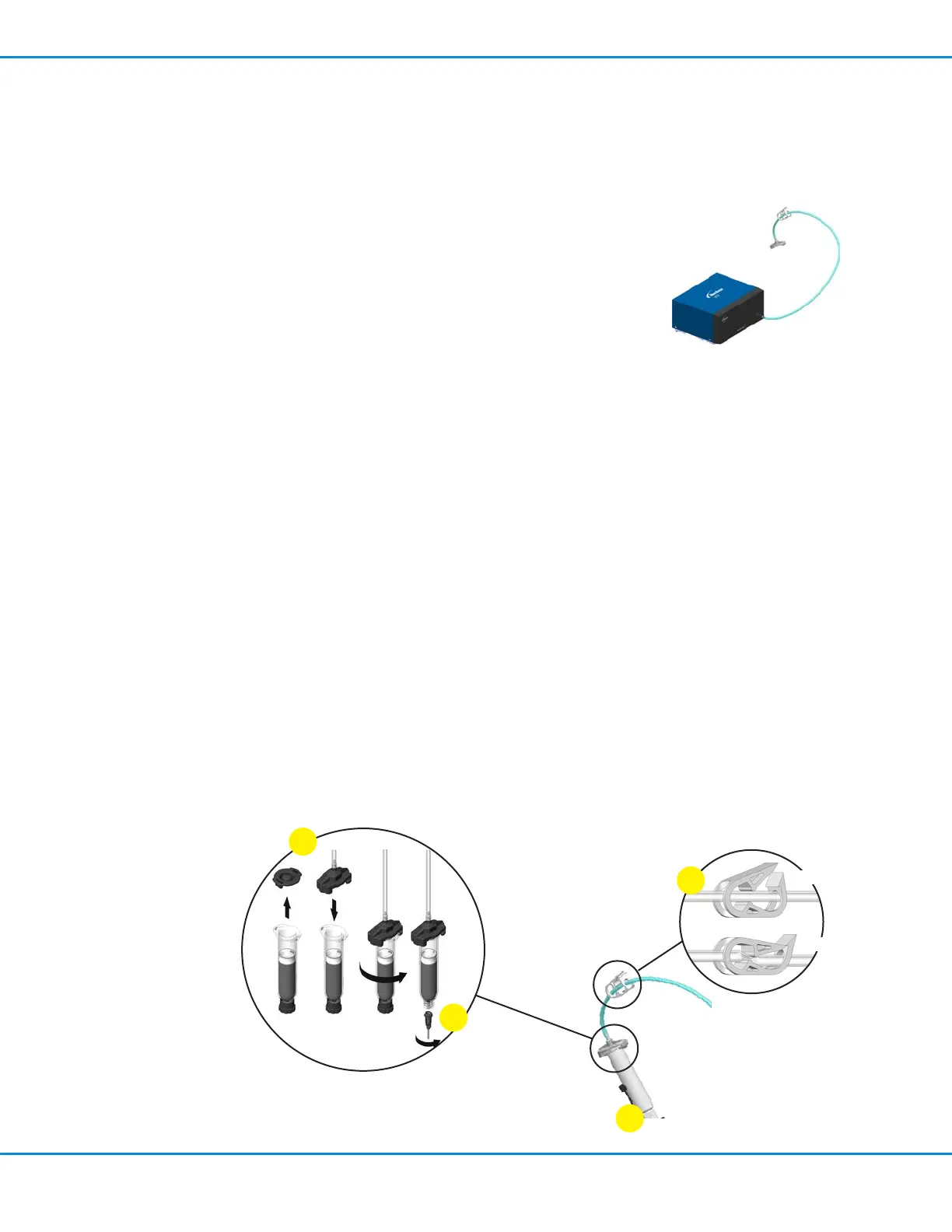

Connect the Air Output
• Connect the tubing from the supplied adapter assembly to
either AIR OUT port.
NOTES:
• The dispenser has two Air Out ports: one of the front panel and
one on the back panel. You can use either one.
• An 0.25 NPT thread exhaust output is available on the
back panel. If needed, connect a cleanroom filter muffler
(P/N7017049) to filter the output air to meet Fed 209-B
(0.5micron particulates).
6
7
Connect the Syringe Barrel / Dispense
Tip
Refer to “Syringe Barrel Filling” on page44 for detailed
information on the filling and use of syringe barrels.
NOTE: If you are dispensing a watery fluid, refer to “Top Filling of
Pourable Materials” on page45.
a. Attach an EFD syringe barrel filled with your fluid to the adapter
assembly.
b. Snap the safety clip on the adapter hose closed to prevent
dripping. Remember to unsnap the clip when ready to
dispense.
c. Replace the tip cap with an EFD precision dispense tip.
d. Place the syringe barrel in the barrel holder.
7d
Open
Closed
7b
7c
7a
