Installation (continued)
11

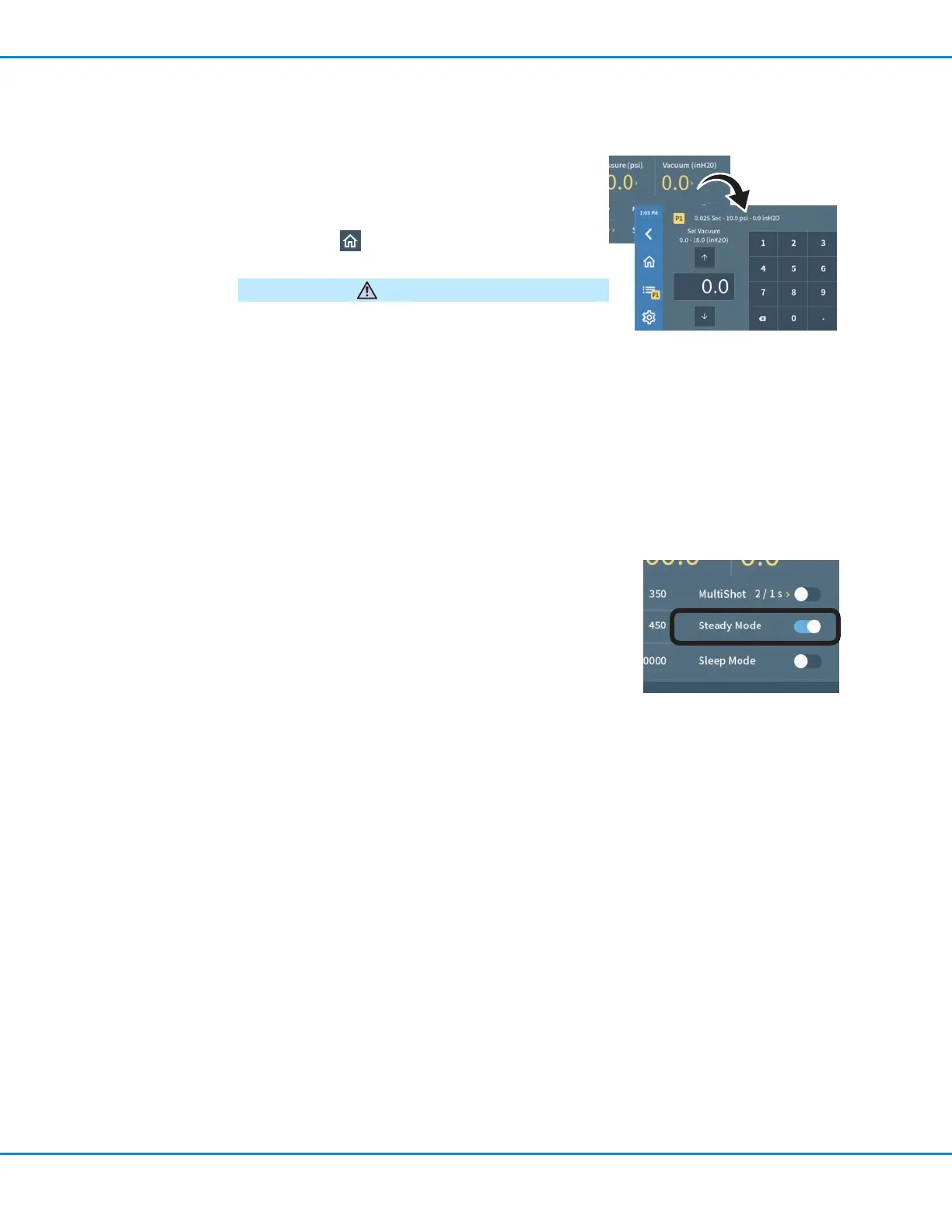

Set the Vacuum
a. Press Vacuum.
b. Set the vacuum at 0.0 for initial startup and testing.
c. Press Home to return to the Home screen.
Use EFD filter / muffler P/N 7016875 or wear adequate ear
protection when operating the vacuum in close proximity
for a prolonged period of time.
CAUTION
12
Purge the Tip
a. Enable the Steady mode by moving the toggle to the ON
position.
b. Press the foot pedal and allow material to flow from the tip
until it is free of air, then release the foot pedal.
13
Connect to Ancillary Components
a. Install or connect to other system components as applicable.
Refer to the quick start guide and / or operating manual
provided with those components for installation and setup
instructions.
b. If the dispenser will be integrated into an automated dispensing
system, refer to “Connecting an Ethernet Cable for Factory
Integration” on page39.
Installation is now complete. Continue to “Initial Startup
and Testing” on page24 to set up dispensing for your
application.
UltimusPlus Series Dispensers
