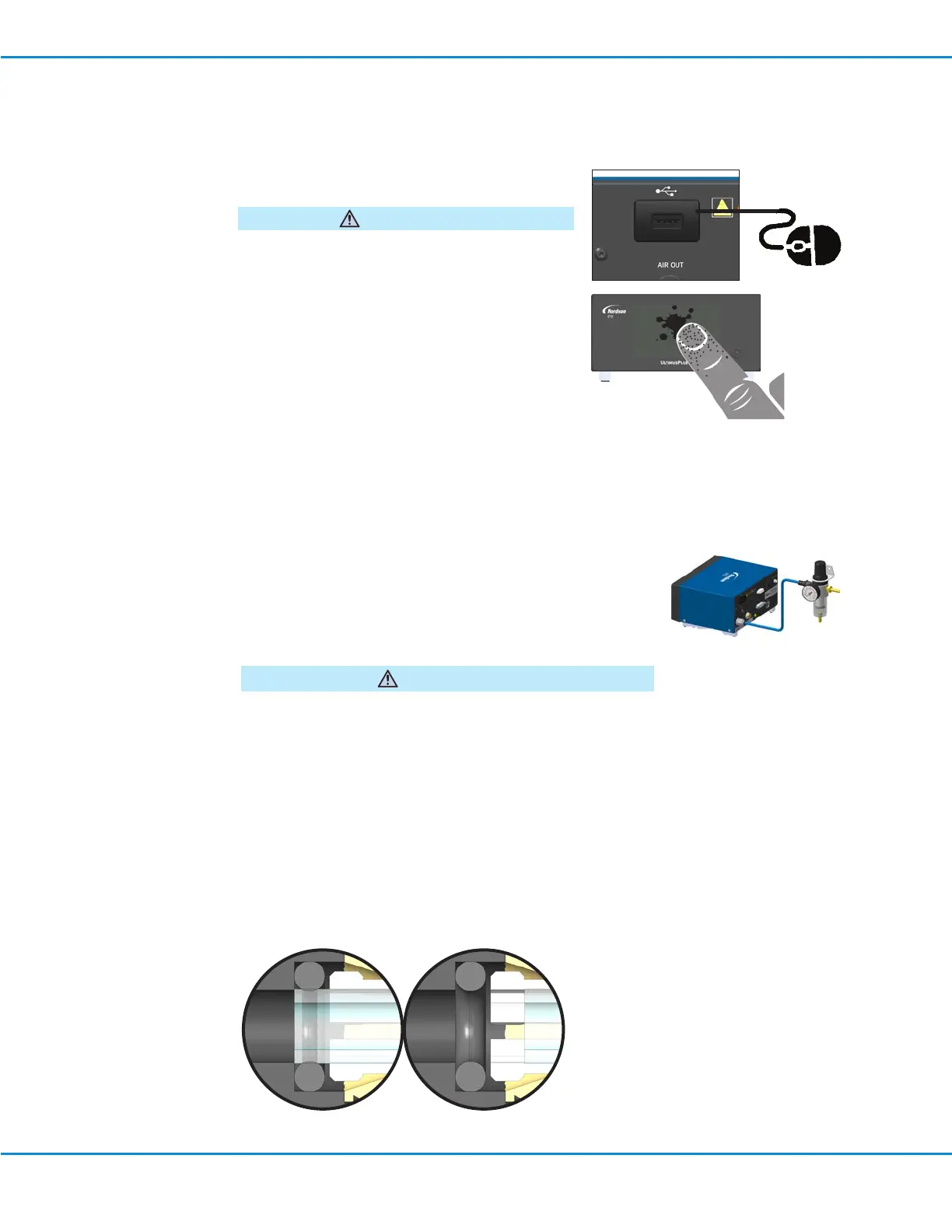

Connect the Air Input
a. Install a pressure regulator that is capable of providing the air
supply recommended for the dispenser.
NOTE: Clean, dry filtered factory air is required to meet
warranty. If your air supply is not filtered, order the 5-micron
filter / regulator (P/N 7002002).
Bottled nitrogen can be used. If high pressure bottled air or
nitrogen is used, a high pressure regulator must be installed on
the bottle and set at 7 bar (100 psi) maximum. In this instance, the
5-micron filter regulator is not required.
WARNING
b. Push one end of the 6 mm air input hose into the AIR IN port
on the back of the UltimusPlus.
c. Connect the other end of the hose to the factory air supply.
d. Set the factory air supply as follows:
• UltimusPlus I: 5.5–7.0 bar (80–100 psi)
• UltimusPlus II: 1.7–2.4 bar (25–35 psi)
5
Installation (continued)
6 mm
(Optional) Connect a Mouse
Risk of equipment damage. Do not use the
touchscreen with dirty hands or gloves.
CAUTION
• If there is a risk of screen contamination, connect
a mouse to the USB port. The touchscreen can be
operated with the mouse.
4
P
X
P
X
UltimusPlus Series Dispensers
20 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
