Nordson UltimusPlus Series User Manual

Overview of the UltimusPlus User Interface
(continued)
Dispense Modes
When powered on, the UltimusPlus dispenser opens to the last used program and dispense mode.
Dispense
Mode
Typical Application Description or Comment
Steady
When you want to
dispense different
volume amounts for
each deposit
In STEADY mode, the system dispenses for as long as the dispense cycle
is initiated (either by foot pedal, finger switch, voltage initiate, or contact
closure). You can place the system in Steady mode on the Home screen.
Refer to “Setting Up the Dispenser for Steady Mode Operation” on page25
for details.
Timed
When you want
to dispense a set
amount of time for
each deposit
In TIMED mode, the system dispenses a single deposit for each dispense
cycle initiate (either by foot pedal, finger switch, voltage initiate, or contact
closure). Deposit size is based on the dispense time, pressure, and vacuum
settings shown on the touchscreen. Refer to “Setting Up the Dispenser for
Timed Mode Operation” on page25 for details.
Teach
When you want to
teach the system
the desired deposit
size
In TEACH mode, you can “teach” the system the desired deposit size
to determine the correct amount of time needed to achieve the deposit
size. Refer to “Using the Teach Mode to Set Up the Dispenser for Timed
Operation” on page26 for details.
Entering Values
For editable settings, the touchscreen functions as follows:
• If applicable, a numeric entry keypad opens.
• As you enter a value, the value-entry field turns yellow.
• If a value is outside of the acceptable range, a red box appears to identify the error.
• After a few seconds of no interaction, the entered value turns white and a check mark appears briefly, indicating
that the value is saved.

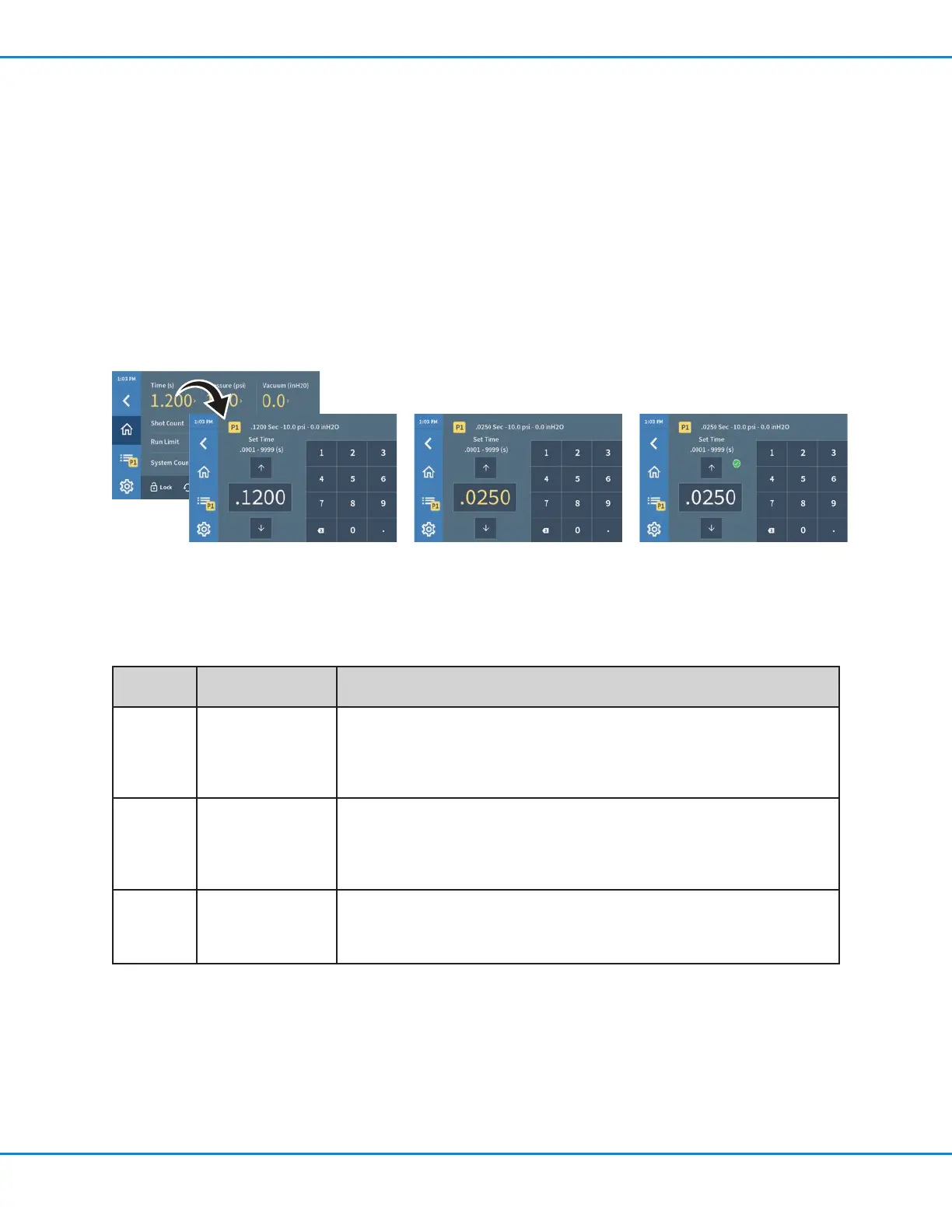

Set Time screen opened Set Time screen, value being entered Set Time screen, value saved (the
check mark appears briefly, then
disappears)
UltimusPlus Series Dispensers
17www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
