Setting Up the Dispenser for Steady Mode Operation
1. If you have not already done so, purge the tip. Refer to “Purge the Tip” on page23 as needed.
2. Enable the Steady mode.
3. Set Pressure and Vacuum to the following recommended starting values:
Dispenser Recommended Pressure Recommended Vacuum
UltimusPlus I 1.0 bar (15 psi) 0 inH
2
O (0 inHG)
UltimusPlus II 0.3 bar (5 psi) 0 inH
2
O (0 inHG)
5. Press and hold the foot pedal (or finger switch) to start the dispense cycle.

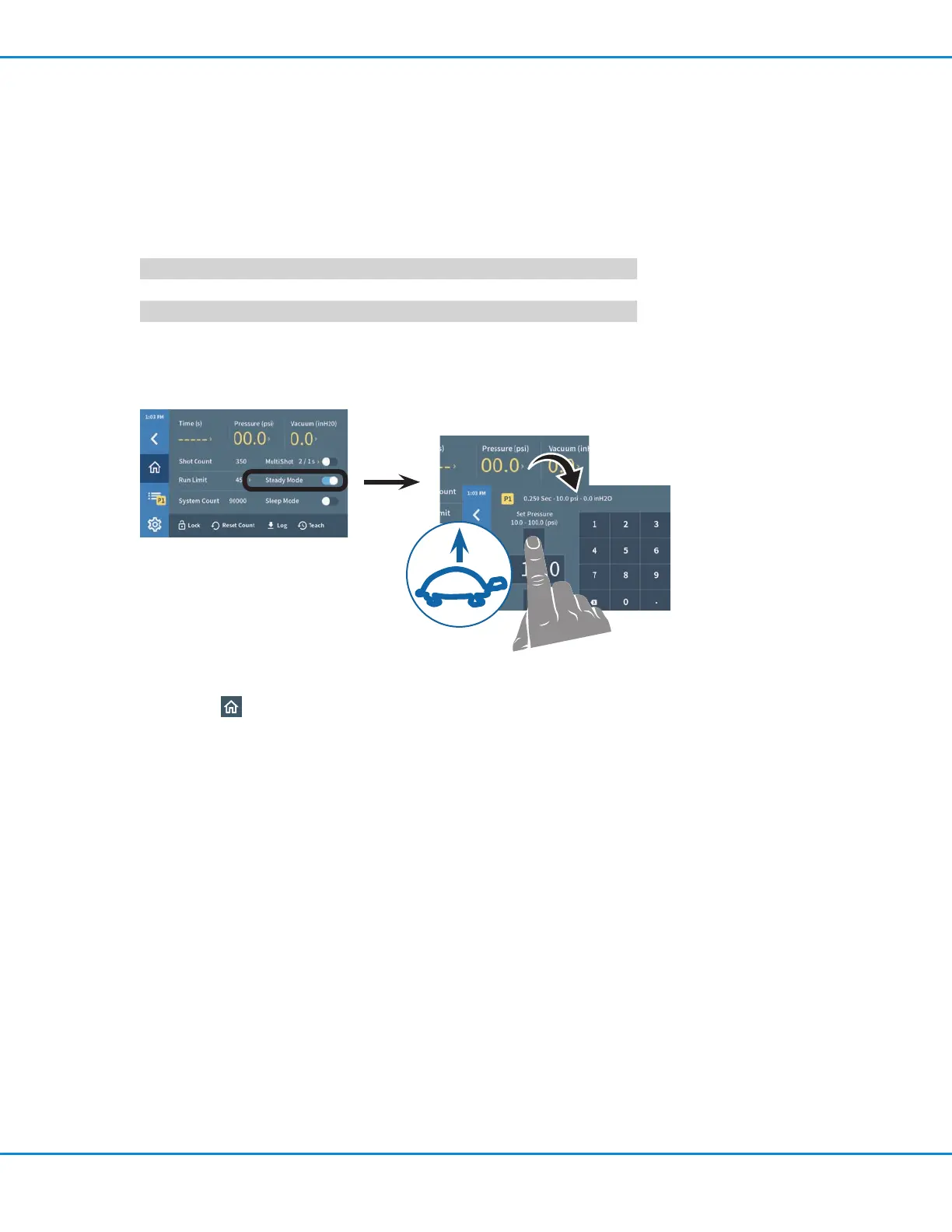

6. Press Pressure to open the pressure screen. Slowly increase the pressure until material begins to dispense in a
controlled flow (not too fast, not too slow).
7. When the desired dispense flow is reached, release the foot pedal.
8. Press Home to use the current settings.
Initial Startup and Testing (continued)
Setting Up the Dispenser for Timed Mode Operation
You can set up the dispenser for timed operation either manually or by using the Teach mode. Nordson EFD
recommends using the Teach mode, which allows you to “teach” the system the correct dispense time setting
based on deposit size. Refer to the following section as applicable:
• (Recommended) Refer to “Using the Teach Mode to Set Up the Dispenser for Timed Operation” on page26
to use the Teach mode to teach the dispenser the dispense time setting.
• Refer to “Manually Setting Up the Dispenser for Timed Mode Operation” on page27 to manually enter the
dispense time setting.
NOTE: Refer to “Decision Tree for Setting Up Dispenser Operation” on page24 for a decision flowchart on
choosing Timed vs. Teach mode.
UltimusPlus Series Dispensers
25www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
